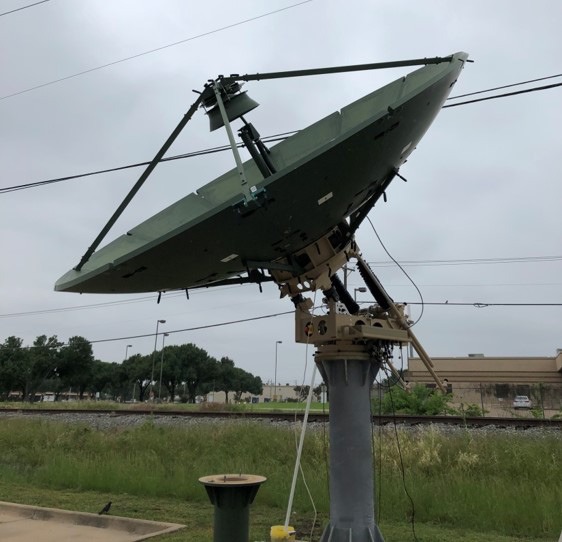

Kratos MILSAT KPBESA40MLQD.C2 4.0 Meter Light Quick Deploy Antenna
Kratos Defense & Security Solutions
A highly flexible 4.0 meter light quick deploy antenna system designed for multi-band satellite communication, featuring a carbon fiber reflector and available in motorized or non-motorized configurations.
Typed specifications5 values
Discloses 1 of 13 fields engineers filter by in this category (category median 2).
- Antenna diameter
- 4 m product page
- Supply voltage
- 24 V product page
- Operating temperature
- -40 °C product page -58 °C
- Survival temperature
- -58 °C product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier29 lines, in the manufacturer's own wording
- Reflector diameter
- 4.0 Meter
- Reflector material
- Carbon Fiber
- Reflector segments
- Nineteen Panels
- Feed type
- Axisymmetric Gregorian dual optics
- Mount type
- El over Az Pedestal
- Azimuth pointing range
- ± 60° Continuous (NOMINAL)
- Elevation pointing range
- 0° to 90° of Boresight (NOMINAL)
- Polarization pointing range
- ± 90°
- Operating wind load
- 30 mph gusting 45 mph
- Survival wind load (ballasted)
- 60 mph
- Survival wind load (stowed)
- 94 mph
- Operational temperature range
- -40°C to +60°C
- Survival temperature range
- -58°C to +71°C
- Seismic
- 1G Vertical and Horizontal; 8.3 Richter, 11 Mercalli
- Solar radiation
- 360 BTU/h/ft2 (1135 watts/m2)
- Rain
- Up to 10 cm/h (4 in/h)
- Relative humidity
- 0% to 100%
- Operational altitude
- Up to 12,000 ft
- Survival altitude
- Up to 40,000 ft
- Indoor controller prime power
- 110-220 VAC 50/60 Hz (Universal)
- Outdoor controller prime power
- 24 VDC, 120 VAC (Field Configurable)
- Power consumption
- 20 A or less @ 24VDC, 5 A @ 120VAC (est.)
- Motor voltage
- 24 VDC
- Remote idu interconnect
- Ethernet
- Remote interface
- Remote Operation Software, SNMP V1 & V2c
- Idu/odu ifl
- Multi Mode Fiber Optic Cable
- Angle transducers
- 19 bit optical encoder
- Angle resolution
- 0.0010°
- Positioning accuracy
- 0.0050° (est)
About
The Kratos 4.0 m Light Quick Deploy antenna system is engineered for versatile operation across various satcom bands and configurations. Its reflector structure is made from lightweight carbon fiber panels, offering multiple mounting options and available in motorized or non-motorized versions. The system supports interchangeable feed systems for UHF-, L-, C-, X-, Ku-, K-, and Ka-bands, including low PIM feeds, allowing for quick field swaps. The reflector is constructed with a precision-formed honeycomb core and carbon fiber skin for durability and high performance, easily assembled from nineteen panels. Designed for lightweight construction and maximum stiffness, it features compact and robust components. The antenna is electronically engineered for multi-frequency operation, capable of transmitting and receiving signals under demanding wind loads (surviving winds up to 100 mph). The tactical version can be deployed by two trained individuals within 30 minutes. It complies with ITU-R S.580-6, 465-6, 732-1 (C, X, Ku, K, Ka Band) and US FCC 25.209 (X, Ku, K, Ka Band) standards. The antenna is designed to comply with MIL-STD-810F and is utilized with ARSTRAT Certified terminals. It features an El over Az Pedestal mount with a pointing range of ± 60° continuous azimuth and 0° to 90° elevation, and ± 90° polarization. It can operate in temperatures from -40°C to +60°C and survive from -58°C to +71°C. The system includes a Multi Axis Tracking Controller with Auto Acquisition Assist, available as a Single Box Outdoor Motor Controller or a 3RU 19” EIA Rack Mounted Indoor Controller. Power options include 110-220 VAC 50/60 Hz (Indoor) and 24 VDC, 120 VAC (Outdoor).
