4m Satcom Antenna
Calian (SatService)

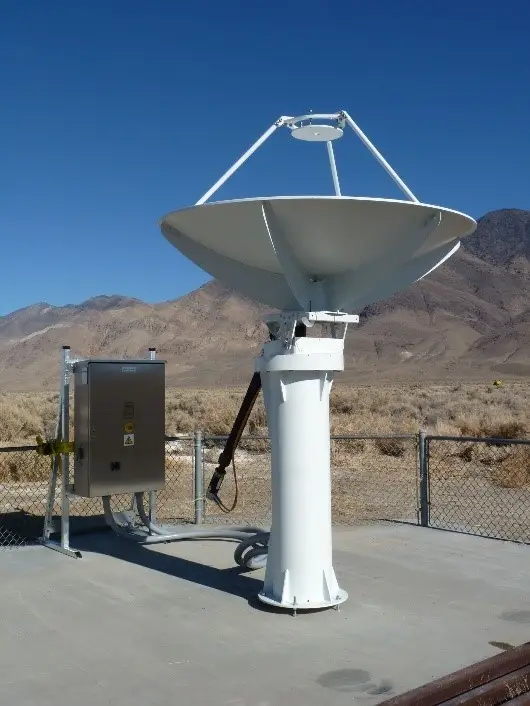

4m Cassegrain earth station antenna for GEO, LEO and MEO SATCOM gateways, TT&C, and diverse satellite applications.
Typed specifications127 values
Discloses 8 of 13 fields engineers filter by in this category (category median 2).
- Frequency bands
- Ku Rx 10.7-12.75 GHz, Tx 12.7-14.5 GHz · datasheet p.3 Ka Rx 17.7-21.5 GHz, Tx 27.5-31.0 GHz | S Rx 2.17-2.3 GHz, Tx 1.98-2.12 GHz | C Rx 3.4-4.2 GHz, Tx 5.725-6.725 GHz | X Rx 7.25-7.75 GHz, Tx 7.9-8.4 GHz +8
- Antenna diameter
- 4 m datasheet p.1
- Frequency range
- 3 400–4 200 MHz C-band Rx · datasheet p.4 5 725–6 725 MHz C-band Tx | 17 700–21 500 MHz Ka-band Rx | 27 500–31 000 MHz Ka-band Tx | 10 700–12 750 MHz Ku-band Rx +5
- G/T
- 22.33 dB/K C-Band Rx @3.400 GHz · datasheet p.4 23.29 dB/K C-Band Rx @3.800 GHz | 24.16 dB/K C-Band Rx @4.200 GHz | 22.33 dB/K C-band Rx 3.4 GHz, clear sky with 30 K LNA @ 20 deg elevation | 23.29 dB/K C-band Rx 3.8 GHz, clear sky with 30 K LNA @ 20 deg elevation +25
- Supply voltage
- 208 V nom. · Auxiliary Circuits · datasheet p.1 220 V auxiliary circuits, single phase 50 Hz (optional) | 208 V auxiliary circuits, split phase 60 Hz | 208 V drive systems, 50/60Hz 3-phase | 220 V nom. · Auxiliary Circuits (optional) +3
- Data interface
- other Ethernet interface for M&C and user interface · datasheet p.1 Ethernet M&C and user interface
- Operating temperature
- -30–60 °C datasheet p.2
- Offering
- antenna hardware datasheet p.1
- Antenna type
- parabolic reflector Cassegrain, Ring Focus and Prime Focus designs · datasheet p.1
- Mount / pedestal
- az-el 2 axis motion, elevation over azimuth · datasheet p.1
- Polarization
- circular C-Band, Rx · datasheet p.4 circular C-Band, Tx | circular CP broadband feed option | circular Ka-Band, Rx | circular Ka-Band, Tx +7
- Antenna gain
- 43.38 dBi C-band Rx @4.200 GHz · datasheet p.4 47.45 dBi C-band Tx @6.725 GHz | 57.29 dBi Ka-band Rx @21.5 GHz | 60.38 dBi Ka-band Tx @31 GHz | 52.73 dBi Ku-band Rx @12.75 GHz +5
- Transmit power
- 500 W C-band power handling per port (CW) · datasheet p.4 500 W Ka-band power handling per port (CW) | 500 W Ku-band power handling per port (CW) | 500 W X-band power handling per port (CW)
- Beamwidth (3 dB)
- 1.44 ° C-band Rx, -3dB · datasheet p.4 0.88 ° C-band Tx, -3dB | 0.28 ° Ka-band Rx, -3dB | 0.19 ° Ka-band Tx, -3dB | 0.47 ° Ku-band Rx, -3dB +5
- Cross-pol isolation
- 32.78 dB C-band Rx and Tx · datasheet p.4 32.78 dB Ka-band Rx and Tx | 35 dB Ku-band Rx and Tx | 32.78 dB S-band Rx and Tx | 32.78 dB X-band Rx and Tx
- VSWR
- 1.25 C-band feed interface · datasheet p.4 1.25 Ka-band feed interface | 1.25 Ku-band feed interface | 1.25 S-band feed interface | 1.3 X-band feed interface
- Tracking
- autotrack (monopulse) monopulse (optional) · datasheet p.1 program track (TLE) NORAD TLE, IESS-412 | step track step track (optional) | other Table track
- Survival temperature
- -40–70 °C datasheet p.2
- Tracking speed
- 1 °/s azimuth · datasheet p.1 0.5 °/s elevation
- Pointing accuracy
- 0.005 ° datasheet p.1
- Azimuth travel
- -200–200 ° +/-200 deg in azimuth · datasheet p.1
- Min elevation
- 0 ° datasheet p.1
- Elevation travel
- 0–90 ° datasheet p.1
- Operational wind speed
- 27.8 m/s operational, up to 100 km/h (62 mph) · datasheet p.2 55.6 m/s survival, 200 km/h (125 mph) in stow position
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier11 lines, in the manufacturer's own wording
- Reflector diameter
- 4 m
- Antenna type
- Dual reflector Cassegrain
- Mount
- Elevation over azimuth, 2 axis
- Main reflector material
- Aluminum
- Main reflector surface accuracy
- < 0.008" RMS
- Sub reflector material
- Carbon fibre composite
- Sub reflector surface accuracy
- < 0.002" RMS
- Frequency bands
- C, Ka, Ku, S, X
- Orbits
- GEO, LEO, MEO
- Operating temperature
- -30 to +60 °C
- Survival temperature
- -40 to +70 °C
About
Calian’s 4m Satcom Antenna is a compact, high-accuracy dual-reflector Cassegrain earth station system suitable for many SATCOM applications including gateways, telemetry/tracking/command (TT&C), and enterprise connectivity. Supporting C, Ka, Ku, S, and X frequency bands, the 4m system offers GEO, LEO, and MEO orbit compatibility, making it versatile for both fixed satellite service and non-geostationary constellations. The aluminum main reflector surface accuracy is below 0.008 inch RMS and the carbon fibre composite sub-reflector is below 0.002 inch RMS. The elevation-over-azimuth 2-axis pedestal features state-of-the-art cable wrap. Optional features include a de-icing system, environmentally controlled hub, and adjustable polarization. Ethernet M&C interface provides full remote monitoring and control. Operating temperature: -30 to +60 °C.
