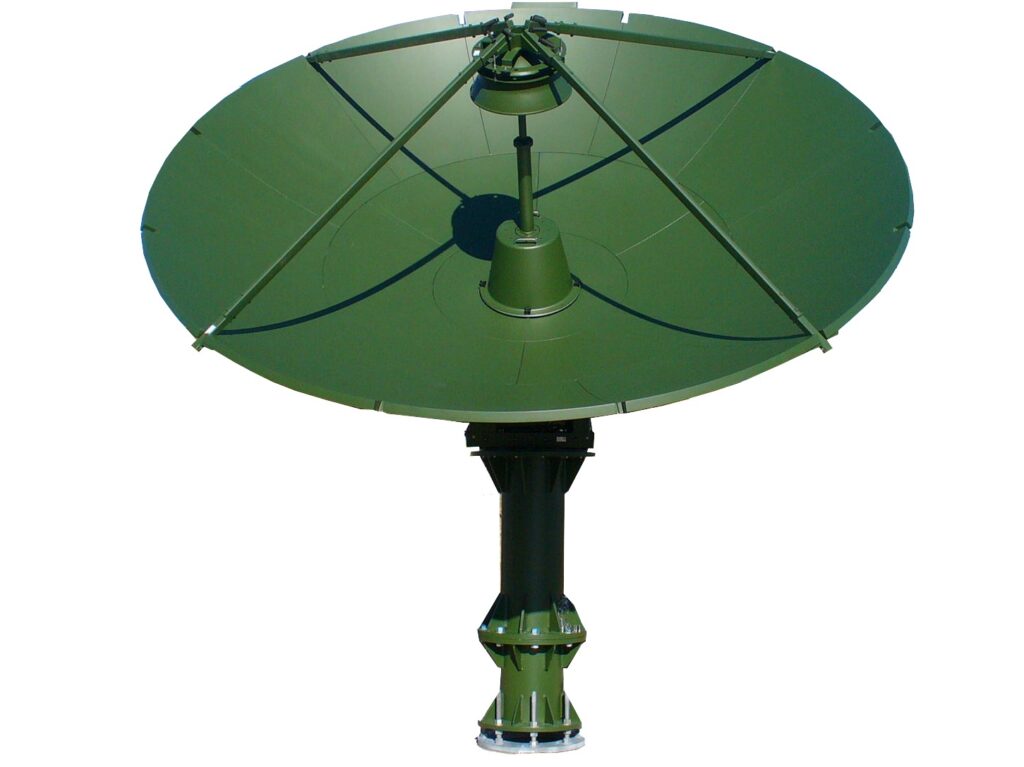

Kratos NOMADIC MILSAT 4.0 Meter Carbon Fiber Antenna
Kratos Defense & Security Solutions
A highly flexible 4.0-meter carbon fiber antenna system designed for various satcom bands and configurations, available in motorized or non-motorized versions.
Technical specifications
- Reflector Diameter
- 4.0 Meter
- Reflector Material
- Carbon Fiber
- Reflector Segments
- Nineteen panels
- Feed Type
- Axisymmetric Gregorian dual optics
- Mount Type
- El over Az Pedestal
- Azimuth Pointing Range
- ±150° Continuous (NOMINAL)
- Elevation Pointing Range
- 0° to 90° of Boresight (NOMINAL)
- Polarization Pointing Range
- ±100°
- Operating Wind Load
- 30 mph gusting 45 mph
- Survival Wind Load (ballasted)
- 60 mph
- Survival Wind Load (stowed)
- 94 mph
- Operational Temperature Range
- -40°C to +60°C
- Survival Temperature Range
- -58°C to +71°C
- Seismic
- 1G Vertical and Horizontal; 8.3 Richter, 11 Mercalli
- Solar Radiation
- 360 BTU/h/ft2 (1135 watts/m2)
- Rain
- Up to 10 cm/h (4 in/h)
- Relative Humidity
- 0% to 100%
- Operational Altitude
- Up to 12,000 ft
- Survival Altitude
- Up to 40,000 ft
- Indoor Controller Prime Power
- 110-220 VAC 50/60 Hz (Universal)
- Outdoor Controller Prime Power
- 24 VDC, 120 VAC (Field Configurable)
- Power Consumption (24VDC)
- 20A or less
- Power Consumption (120VAC)
- 5A
- Motor Voltage
- 24 VDC
- Remote IDU Interconnect
- Ethernet
- Remote Interface
- Remote Operation Software, SNMP V1 & V2c
- IDU/ODU IFL
- Multi Mode Fiber Optic Cable
- Angle Transducers
- 19 bit optical encoder
- Angle Resolution
- 0.0010°
- Positioning Accuracy
- 0.0050° (est)
About
The Kratos 4.0 m Nomadic is a versatile antenna system engineered for operation across a wide range of satcom bands and in multiple configurations. Its reflector structure is constructed from lightweight carbon fiber panels with a precision-formed honeycomb core and carbon fiber skin, ensuring durability and high performance. The reflector is easily assembled from nineteen panels. The system supports interchangeable feed systems for quick field swaps, addressing UHF, L, C, X, Ku, K, Ka, Ku/K, X/Ka bands, including low PIM feeds. Designed to be lightweight with maximum stiffness, it offers compact and robust components. It meets Mil-Spec standards and is designed to comply with MIL-STD-810F. The antenna is capable of transmitting and receiving signals under demanding wind loads, surviving winds up to 94 mph with the reflector at 90° elevation. Fully motorized versions (including feed) weigh less than 350 kg and the tactical version can be deployed by two trained individuals within 60 minutes. It features a Multi Axis Tracking Controller with Auto Acquisition Assist and various mounting options.
