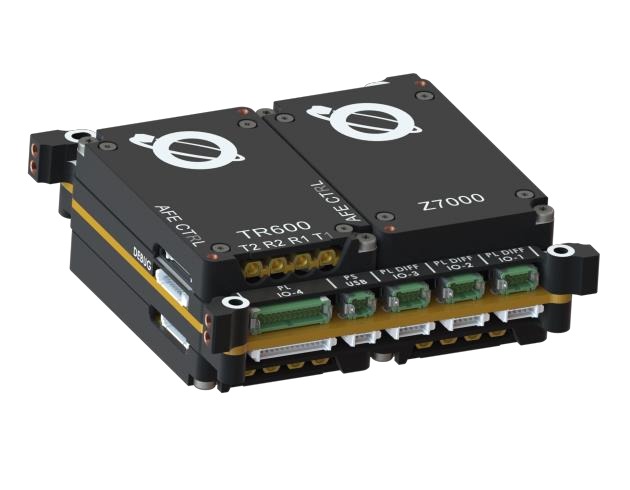

NanoCom SDR MK3 with 1xTR600
GomSpace
A software-defined radio (SDR) unit equipped with one TR600 module, designed for satellite communication applications.
Typed specifications72 values
Discloses 6 of 13 fields engineers filter by in this category (category median 5).
- Mass
- 272 g total with 1xTR600 (typical) · datasheet p.12 272 g typical | 272 g typ. | 272 g nom. · total with 1xTR600 (typical)
- Link protocols and waveforms
- CSP datasheet p.3
- Frequency range
- 70 MHz min · TR600 (AD9361), 70 MHz to 6 GHz · datasheet p.6 6 000 MHz max · TR600 (AD9361), 70 MHz to 6 GHz | 70–6 000 MHz
- Envelope (L×W×H)
- 95 x 95 x 23,85 mm datasheet p.12 95 x 95 x 23,85 mm with 1xTR600
- Supply voltage
- 12 V min · Supply voltage VCC · datasheet p.18 32 V max · Supply voltage VCC | 12–32 V | 12–32 V supply voltage (Main/Backup)
- Power consumption
- 5.46 W enable one TR600 on Slot A, Vin = 12V, 25°C · datasheet p.16 5.58 W enable one TR600 on Slot A, Vin = 18V, 25°C | 5.69 W enable one TR600 on Slot A, Vin = 24V, 25°C | 5.89 W enable one TR600 on Slot A, Vin = 32V, 25°C | 2.22 W Idle, Vin = 12V, 25°C +15
- Data interface
- SpaceWire datasheet p.6 JTAG debug | USB host/device | RS-422 payload data interface | GPIO PL/PS single ended IO +8
- Operating temperature
- -40–50 °C datasheet p.11 -40–50 °C qualified with three TR600, thermal interface
- Function
- SDR platform (user waveforms) modular SDR platform built to support custom RF applications · datasheet p.6
- Link use
- inter-satellite link intersatellite link / crosslink, NTN data relay · datasheet p.6 IoT / M2M uplink narrowband IoT and tracking solutions | signal reception (AIS / ADS-B / spectrum) SIGINT/Spectrum Monitoring
- Instantaneous bandwidth
- 200 kHz min · channel BW tuneable, per TR600 · datasheet p.6 56 000 kHz max · channel BW tuneable, per TR600
- TX chains
- 2 1xTR600 · datasheet p.6
- RF connector
- SMPM TX1, RX1, TX2, RX2 on each TR600 · datasheet p.6
- RX chains
- 2 1xTR600 · datasheet p.6
- Waveform development
- vendor SDK platform development kit (PDK) with reference designs · datasheet p.6
- Connector
- SMPM RF connectors datasheet p.6 Harwin Gecko G125-MH10605L1R | Harwin Gecko G125-MH12005L1R | Gecko G125-MH11005L1R
- Survival temperature
- -40–85 °C datasheet p.8 -40–85 °C non-operational
- Flight heritage
- Flight heritage datasheet p.6
- TX/RX chains (as printed)
- 1xTR600: 2xRX and 2xTX channels datasheet p.6
- Max RX input level
- 5 dBm max · RF inputs (Peak Power), absolute maximum · datasheet p.8
- FPGA / SoC
- Xilinx Zynq 7030/7045 Programmable SoC, FPGA 125k/350k logic cells datasheet p.6
- Duplex
- full support TDD and FDD operation · datasheet p.6
- Processor
- Dual ARM Cortex A9 MPCore, up to 800MHz datasheet p.6
- RF transceiver chip
- AD9361 (TR600) datasheet p.6
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier13 lines, in the manufacturer's own wording
- Mass total
- 272 g
- Dimensions (L x W x H)
- 95 x 95 x 23.85 mm
- Operational temperature range
- -40°C to 50°C
- Non-operational temperature range
- -40°C to 85°C
- Supply voltage (Main/Backup)
- 12 V to 32 V
- Supply current (main/backup), in idle1 (Vin = 12V, 25°C)
- 185 mA
- Supply current (main/backup), in idle1 (Vin = 18V, 25°C)
- 125 mA
- Supply current (main/backup), in idle1 (Vin = 24V, 25°C)
- 100 mA
- Supply current (main/backup), in idle1 (Vin = 32V, 25°C)
- 80 mA
- Supply current (main/backup), enable one tr600 on slot a2 (Vin = 12V, 25°C)
- 455 mA
- Supply current (main/backup), enable one tr600 on slot a2 (Vin = 18V, 25°C)
- 310 mA
- Supply current (main/backup), enable one tr600 on slot a2 (Vin = 24V, 25°C)
- 237 mA
- Supply current (main/backup), enable one tr600 on slot a2 (Vin = 32V, 25°C)
- 184 mA
About
The NanoCom SDR MK3 is a software-defined radio unit that can be configured with one, two, or three TR600 modules. This specific configuration includes one TR600 module. It has been qualified for an operational temperature range from -40°C to 50°C and a non-operational temperature range from -40°C to 85°C. The unit features various interfaces including SpaceWire/LVDS, CAN, RS422/RS485, CLK, I2C, and PPS. It is supplied with a cable kit for initial bring-up, including power cables and main interfaces for debug/test purposes.
