OGS-2.5
Astrolight
Astrolight’s OGS-2.5 is a compact and cost-effective satellite optical communication terminal for high data rate applications.
Typed specifications4 values
Discloses 1 of 13 fields engineers filter by in this category (category median 2).
- Envelope (L×W×H)
- 355 mm (14 ") product page 508 mm (20 ")
- Data rate
- 1.25 kbps product page
- Modulations supported
- OOK product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier9 lines, in the manufacturer's own wording
- Aperture Size (Option A)
- 355 mm (14 ")
- Aperture Size (Option B)
- 508 mm (20 ")
- Operational Wavelength
- 1536 nm & 1553 nm
- Supported Modulations
- OOK
- Downlink Data Rate
- 1.25/2.5/12.5 Gbps
- Uplink Data Rate
- 1.25/2.5 Gbps
- Tracking Accuracy
- < 50 μrad RMS
- Uplink Beacon (C-band)
- 35 W, 1546 nm & 1553 nm
- Uplink Beacon (L-band)
- 10 W, 1590 nm
About

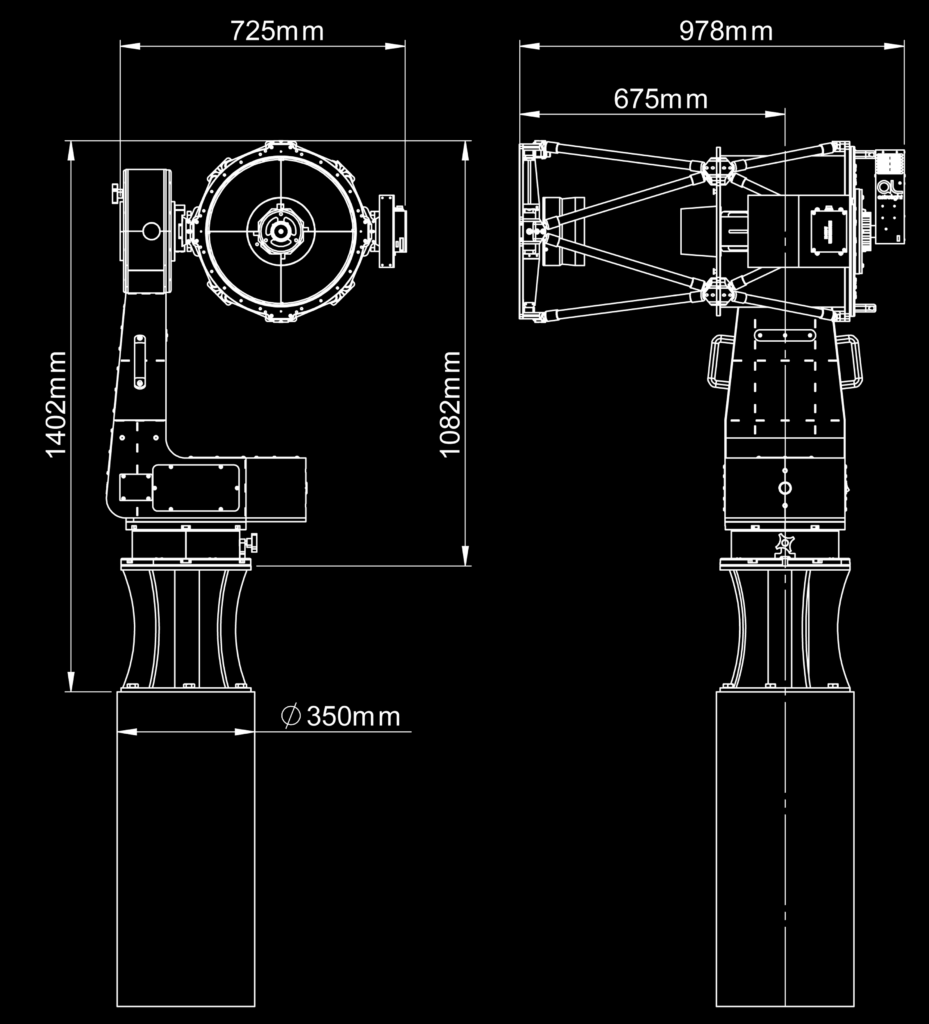

The OGS-2.5 model supports the physical layer of SDA and CCSDS standards. The system is based on a proven telescope and direct-drive positioning system, seamlessly integrated with a custom fine pointing, tracking and data processing system. It offers two options for aperture size: 355 mm (14 “) or 508 mm (20 “). The operational wavelength is 1536 nm & 1553 nm, supporting OOK modulations. It provides a downlink data rate of 1.25/2.5/12.5Gbps and an uplink data rate of 1.25/2.5Gbps. The tracking accuracy is less than 50 μrad RMS, and it features an uplink beacon of 35 W, C-band (1546 nm & 1553) or 10 W, L-band (1590 nm).
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
