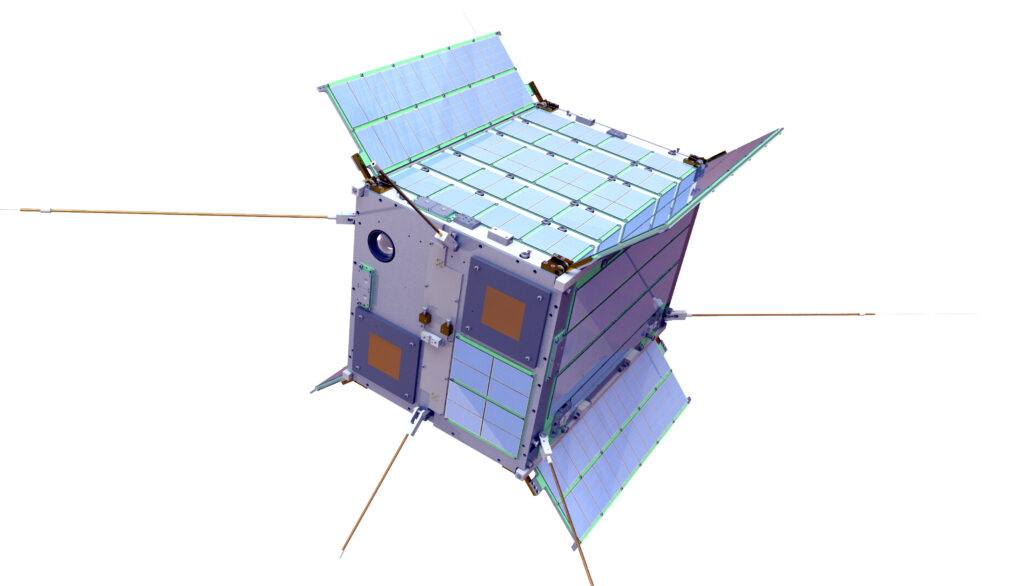

RapidCube-20 CubeSat Bus
Rapid Cubes GmbH
16U, 20 kg CubeSat bus with failure-tolerant architecture supporting 5–10 kg payloads, S/X-band links, and SSO IOD/IOV missions.
Typed specifications10 values
Discloses 3 of 7 fields engineers filter by in this category (category median 3).
- Mass
- 5–10 kg product page
- Envelope (L×W×H)
- 22 x 22 x 44 cm (16U) stowed · product page
- Power consumption
- 15–30 W product page
- Design lifetime
- 2 years product page
- Orbit
- SSO product page
- Max payload mass
- 5–10 kg product page
- Payload volume, U
- 5 U product page
- Power available to payload
- 15–30 W product page
- Attitude knowledge
- 1 ° product page
- Radio band
- S product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier12 lines, in the manufacturer's own wording
- CUBESAT class
- 20 kg
- Dimensions (stowed)
- 22 x 22 x 44 cm (16U)
- Bus architecture
- Failure-tolerant
- Payload mass
- 5–10 kg
- Payload volume
- 5U – 11U
- Average payload power
- 15–30 W
- Attitude determination
- < ±1° (option: < ±0.1°)
- Attitude pointing
- < ±5° (option: < ±0.5°)
- TT&C
- S-band FDD 2.0/2.2 GHz, up to 100 kbps uplink, 2 Mbps downlink
- High-rate downlink
- X-band 8 GHz, up to 100 Mbps
- Orbit
- 400–500 km SSO
- Design lifetime
- 2 years
About
RapidCube-20 is a 16U, 20 kg CubeSat bus platform targeting in-orbit demonstration, Earth observation, IoT, and inter-satellite communication missions in sun-synchronous orbit at 400–500 km altitude. The failure-tolerant bus provides 5–10 kg of available payload mass in 5U–11U of payload volume, with 15–30 W average payload power. Attitude pointing is achieved to less than ±1° (option: ±0.1°) for determination and ±5° (option: ±0.5°) for pointing. The bus includes an S-band FDD link at 2.0/2.2 GHz supporting up to 100 kbps uplink and 2 Mbps downlink, plus an optional 8 GHz X-band data link at up to 100 Mbps. Design lifetime is two years.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
