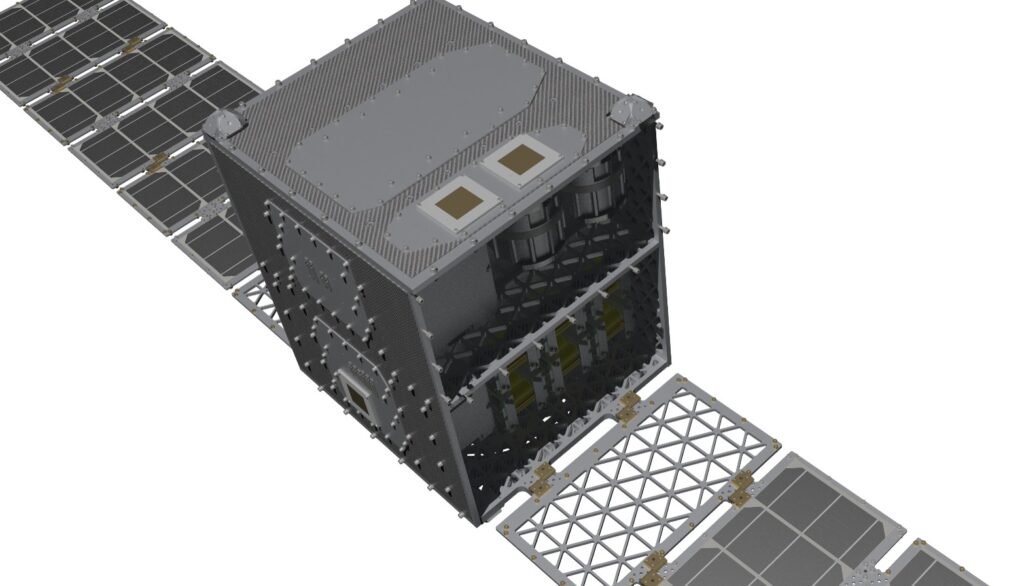

RapidCube-50
Rapid Cubes GmbH
RapidCube-50 is a 50 kg class CubeSat platform offering high payload capacity, triple modular redundancy, and precision attitude control for scientific, commercial, and NewSpace missions.
Typed specifications5 values
Discloses 2 of 7 fields engineers filter by in this category (category median 3).
- Max payload mass
- 20 kg max · product page
- Payload envelope (L × W × H)
- Up to 36 x 18.5 x 44 cm3 product page
- Power available to payload
- 30 W average · product page 50 W peak
- Attitude knowledge
- 0.1 ° product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier7 lines, in the manufacturer's own wording
- Failure tolerance
- Triple Modular Redundancy (TMR) achieved with 3 processor cores
- Available payload mass
- Up to 20 kg
- Available payload volume
- Up to 36 x 18.5 x 44 cm3
- Average payload power available
- Average (polar orbit, LTAN 12 am): 30 W (Si cells), 50 W (GaAs cells); peak per channel: 60 W (up to five channels); Bus voltage: 12 V nominal, 24 V possible
- Attitude determination
- < ± 0.1° (MEMS sun sensor, magnetometer, gyro, star tracker)
- Attitude pointing
- < ± 0.5° (3-axis by reaction wheels, magnetorquer)
- Telemetry and telecommand
- 2.0 / 2.2 GHz (S-band, FDD), up to 100 kbps (UL), up to 2 Mbps (DL)
About
RapidCube-50 is a cutting-edge 50 kg class CubeSat platform engineered to combine high-performance capabilities, flexibility, and robust features for modern NewSpace missions and services, suitable for scientific breakthroughs, commercial ventures, and pioneering satellite applications. The platform is failure-tolerant, achieving Triple Modular Redundancy (TMR) through the use of three processor cores. It offers an available payload mass of up to 20 kg and an available payload volume of up to 36 x 18.5 x 44 cm3. Average payload power available is 30 W with Si cells or 50 W with GaAs cells (for a polar orbit, LTAN 12 am), with a peak power of up to 60 W per channel across up to five channels; the bus voltage is 12 V nominal, with 24 V also possible. Attitude determination accuracy is better than ±0.1° using a MEMS sun sensor, magnetometer, gyro, and star tracker, while 3-axis pointing accuracy is better than ±0.5°, achieved using reaction wheels and magnetorquers. Telemetry and telecommand operate in S-band at 2.0/2.2 GHz (FDD), supporting uplink rates up to 100 kbps and downlink rates up to 2 Mbps.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
