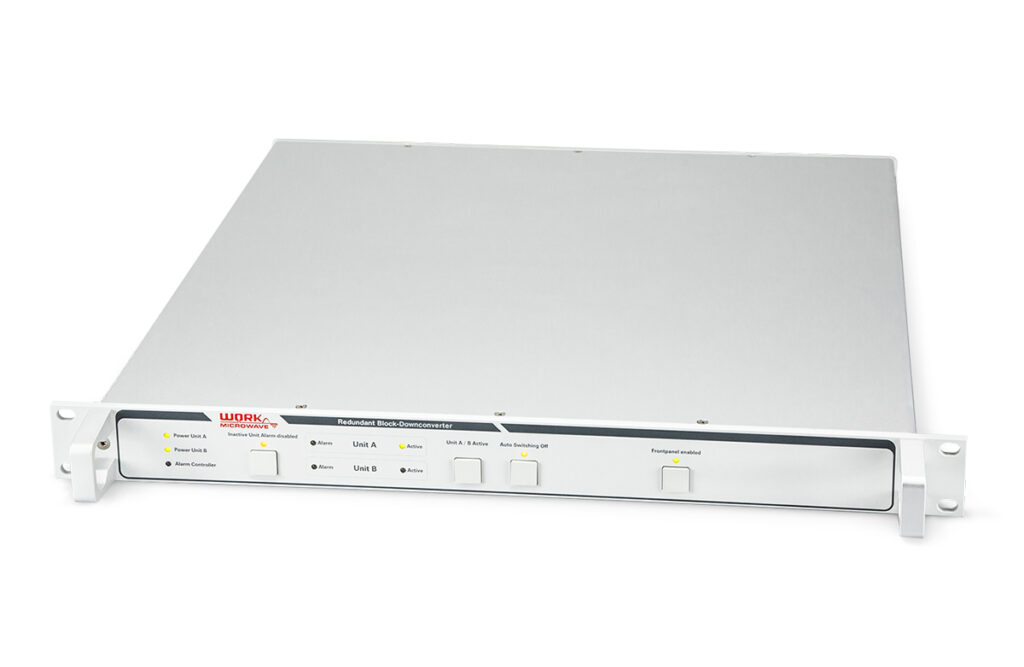

Redundant Block Downconverter VSBD-Red
WORK Microwave
Compact Redundant Block Downconverters from S- to K(DBS)-band, for standard and customized applications.
Technical specifications
- Product Line
- Downconverters
- Application
- Teleport Infrastructure
- Item Number
- VSBD-Red
- Bands
- S, C, X, Ku, K(DBS)-Band
- Output
- L-Band
- Redundancy
- 1:1 Redundancy switch
- Housing
- 19″
- Converters
- Hot pluggable slide-in
- Power Supplies
- Redundant
- Phase Noise
- < -50 dBc/Hz @ 10 Hz
- OCXO Stability
- < 10 -7 / year
About
The WORK Microwave Redundant Block Downconverter (VSBD-Red) offers a compact solution for various satellite communication needs, covering S, C, X, Ku, and K(DBS)-Bands with an L-Band output. This integrated unit combines a 1:1 Redundancy switch and two blockconverters within a single 19″ housing, ensuring high reliability and continuous operation. Key features include hot-pluggable slide-in converters for easy maintenance and redundant power supplies for enhanced system resilience. The VSBD-Red also boasts very low phase noise (< -50 dBc/Hz @ 10 Hz) and a highly stable OCXO (Long-term stability < 10 -7 / year), along with digital gain compensation, making it suitable for demanding teleport infrastructure applications.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
