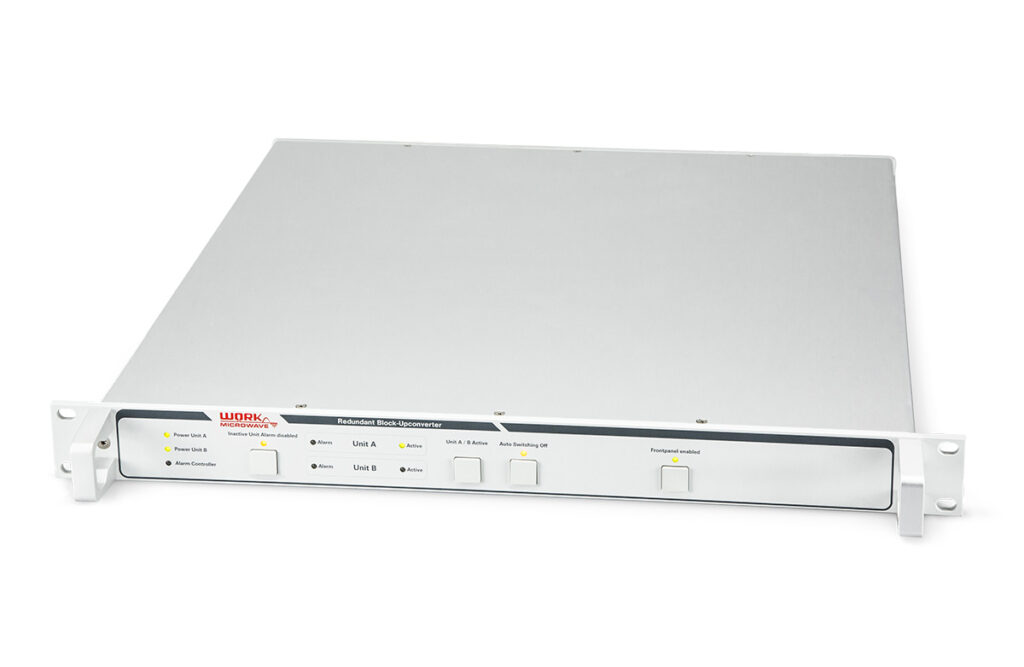

Redundant Block Upconverter
WORK Microwave
Compact Redundant Block Upconverters from S- to K(DBS)-band, for standard and customized applications, featuring 1:1 redundancy switch and two blockconverters in one 19″ housing.
Technical specifications
- Product Line
- Upconverters
- Application
- DTH Broadcast , SNG / Contribution , Teleport Infrastructure
- Item Number
- VSBU-Red
- Bands
- S, C, X, Ku, K(DBS)-Band
- Input
- L-Band
- Redundancy
- 1:1 Redundancy switch and two blockconverters in one 19″ housing
- Converters
- Hot pluggable slide-in
- Power Supplies
- Redundant
- Phase Noise
- < -50 dBc/Hz @ 10 Hz
- OCXO Stability
- < 10 -7 / year
- Gain Compensation
- Digital
About
The Redundant Block Upconverter (VSBU-Red) from WORK Microwave offers compact solutions for S- to K(DBS)-band applications, suitable for both standard and customized needs. This integrated unit combines a 1:1 redundancy switch and two blockconverters within a single 19″ housing, ensuring high reliability and performance. Key features include hot pluggable slide-in converters for easy maintenance and redundant power supplies to enhance operational resilience. The VSBU-Red boasts very low phase noise, specified at less than -50 dBc/Hz @ 10 Hz, and incorporates a highly stable OCXO with long-term stability better than 10^-7 per year. It also includes digital gain compensation for optimized signal integrity. The product supports various bands including S, C, X, Ku, and K(DBS)-Band, with an L-Band input. Applications for this upconverter span DTH Broadcast, SNG / Contribution, and Teleport Infrastructure.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
