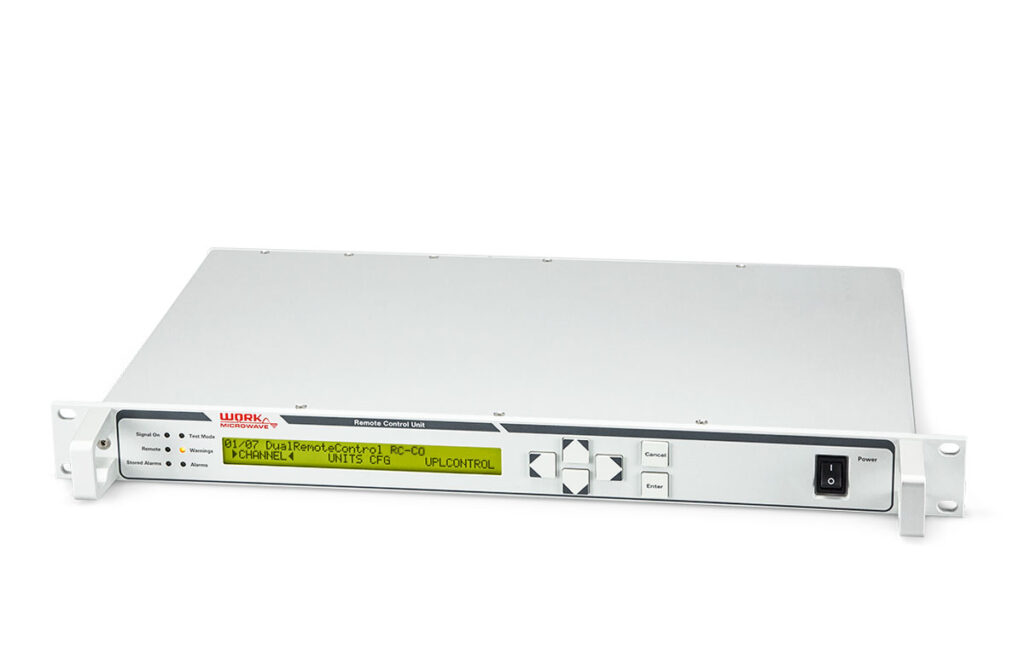

Remote Control RC-CO
WORK Microwave
A remote control unit designed for outdoor frequency converters, offering optional Uplink Power Control.
Technical specifications
- Interface
- RS232 or RS422/RS485, IP over Ethernet
- Supply voltage
- 12…24 V
- Voltage Range DC-In+
- 0 … +12 V
- Input Impedance
- approx 10 kΩ
- Output Current
- 1 mA
- Operating temperature
- -30 °C … 60 °C
- Frequency
- 50 … 60 Hz
- Power
- Typ: 10 VA / 6 W, Max: 55 W
- Dimensions
- 483 x 44 x 270 mm³
- Mass
- approx. 4 kg
About
The Remote Control RC-CO is a dedicated unit for managing outdoor frequency converters. It provides the capability for configuration of outdoor converters via its front panel. A key feature is the optional remote control functionality, allowing for the management of up to 8 frequency converters. Additionally, the unit offers optional Uplink Power Control, which is crucial for maintaining signal integrity, especially in challenging conditions like rain fade, by adjusting uplink power based on beacon signals to ensure clear sky performance. This product is ideal for teleport management and infrastructure applications.
