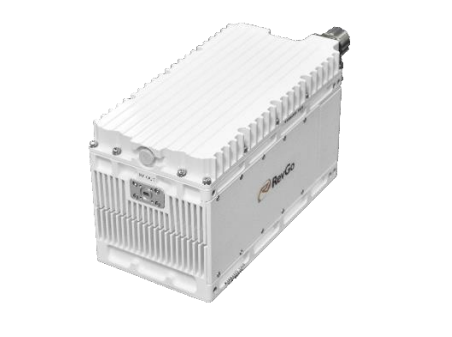

RGUC-A mPower
RevGo
Block Up-Converter (BUC) — RGUC-A mPower, frequency 27.5-31 GHz (Many band options available), output 40W, 80W.
Typed specifications50 values
Discloses 6 of 13 fields engineers filter by in this category (category median 3).
- Frequency band
- Ka TX · datasheet p.1
- Mass
- 5 800 g datasheet p.2 5 800 g 40W BUC | 6 000 g 80W BUC
- Frequency range
- 27 500 MHz min · datasheet p.2 31 000 MHz max | 27 500–30 000 MHz mPower Network Bands 1-3 | 27 652–29 071 MHz O3b Network Bands 4-5 | 27 500–31 000 MHz output frequency
- Envelope (L×W×H)
- 269*136*156 mm datasheet p.2
- TX RF output power
- 19.95 W PLin · datasheet p.2 31.62 W PLin1 | 25.12 W PLin2 | 39.81 W Rated/Saturated | 19.95 W 40W BUC, PLin (<-25 dBc IMD3) +3
- Supply voltage
- 36 V min · datasheet p.2 60 V max | 36–60 V
- Power consumption
- 225 W @ PLin Output · datasheet p.2 300 W @ Rated Output | 225 W 40W BUC @ PLin Output | 300 W 40W BUC @ Rated Output | 350 W 40W BUC @46dBm (product features; page 2 says 300 W) +2
- Data interface
- Ethernet datasheet p.2 RS-485 M&C option RE = Eth & RS485/232 | Ethernet M&C, RJ45 | RS485/232 | RS-232 M&C option RE = Eth & RS485/232
- Operating temperature
- -40 °C min · datasheet p.2 60 °C max | -40–60 °C
- Function
- other Block Up-Converter (BUC) · datasheet p.1
- Link use
- ground terminal satellite earth station / VSAT terminals · datasheet p.1
- RF connector
- N IF input N-Type Female · datasheet p.2 waveguide flange RF output WR28-G (Grooved)
- Power draw, transmit
- 300 W 40W BUC @ Rated Output · datasheet p.2 450 W 80W BUC @ Rated Output
- Connector
- Power: AMPHENOL C01610C00600012; M&C: RJ45 datasheet p.2 N-Type Female IF | RJ45 M&C | AMPHENOL C01610C00600012 Power | WR28-G (Grooved) RF Output
- Frequency tunable in orbit
- yes five software selectable sub-bands in 27.5-30 GHz · datasheet p.1
- RF gain
- 67–77 dB small signal gain · datasheet p.2
- Satellite network
- SES / O3b mPower Network, O3b Network bands · datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier32 lines, in the manufacturer's own wording
- Frequency
- 27.5-31 GHz (Many band options available)
- Power/output
- 40 W, 80 W
- Cat.
- 5e RJ45
- Conec
- 17-111204
- Band
- 2=30.00 – 31.0 950 – 1950 29.05; 1=27.50 – 28.50 950 – 1950 26.55; 2=28.25 – 29.25 950 – 1950 27.30; 3=29.00 – 30.00 950 – 1950 28.05; 4= 30.00 – 31.00 950 – 1950 29.05; 4=27.652 – 28.388 1052 – 1788 26.60; 5=28.172 – 29.071 972 – 1871 27.20
- Output frequency
- 27.50-31.00 GHz (the detail as below list)
- Mpower network band
- 1 Band 2 Band 3
- RF frequency
- 27.50-28.50 28.25-29.25 29.00-30.00; 27.652-28.388 28.172-29.071
- If frequency
- 950-1950 950-1950 950-1950; 1052-1788 972-1871
- Lo frequency
- 26.55 27.30 28.05; 26.60 27.20
- O3b network band
- 4 Band 5
- External ref
- 10 MHz, 0 5 dBm
- Output power
- 40 W BUC 80 W BUC
- Rated/saturated
- 46 dBm 49 dBm
- Plin1
- 45 dBm 48 dBm
- Plin2
- 44 dBm 47 dBm
- Plin
- 43 dBm 46 dBm
- Small signal gain
- 67-77 dB
- Gain variation
- 1 dB p-p / 36 MHz
- Gain stability
- 3 dB p-p
- Gain adjustment
- 10 dB (Step: 0.1 dB)
- Phase noise
- -63 dBc / Hz @ 100 Hz
- Output spurious
- -60 dBc
- Input power
- +36 to +60 VDC
- Power consumption
- 40 W BUC 80 W BUC
- RF output vswr
- 1.25:1
- If input vswr
- 1.5:1
- Dimensions
- 10.6*5.4*6.1 inches
- Mass
- 40 W BUC 80 W BUC
- Operating temperature
- -40 to +60oC
- Humidity
- 0-100% (condensing)
- Altitude
- 0-10,000 feet ASL
About
RevGo Global’s RGUC-A mPower is a block up-converter (buc) designed for satellite ground-segment (VSAT/SNG/maritime) RF chains, manufactured by RevGo Global Inc. (Reston, VA, USA), a satellite earth-station RF equipment manufacturer founded in 2002 and operating an ISO 9001:2015 quality system. This model operates over 27.5-31 GHz (Many band options available) with rated output/class of 40W, 80W. RevGo’s product line uses highly integrated RF technologies (RFIC and GaN), is designed for high-volume production, and is built for rugged outdoor operation (typ. -40 to +60C, 0-100% humidity condensing, up to 10,000 ft altitude). Typical applications include maritime VSAT terminals, 5G backhaul, SNG (satellite news gathering) vehicles, and fixed, portable, or transportable satellite terminals. Full RF, power, mechanical, and interface specifications are provided in the manufacturer’s datasheet linked below.
