About RevGo

RevGo Global Inc. designs and manufactures satellite earth station RF products. Their product lines include Block Upconverters (BUCs), Low Noise Blocks (LNBs), and integrated transceivers. These products operate in C-, Ku-, DBS-, and Ka-bands, with output power ranging from 2 to 200W, for both uplink and downlink operations. The company also offers custom satellite earth station RF product designs. RevGo Global Inc. was founded by senior satcom executives from the US and Canada. Their products are manufactured to the stringent quality standards of ISO9001:2015, with critical SMT PA wire-bonding performed in-house. They utilize GaN technology and focus on high volume production with strict reliability and quality control.

Company Info

Headquarters Reston, Virginia, USA, United States

Founded 2016 (10 years)

Specializations

manufacturer

Website revgoglobal.com ↗

Email Support@RevGoGroup.com

Photos 1

Products

Low Noise Block (LNB) — RGLN - A, frequency 18.2 - 21.2 GHz (Single and dual band options), output Ka.

1 20

Frequency	18.2 - 21.2 GHz (Single and dual band options)
Power/output	Ka
In put w r	42 G ROO V ED
W it h	4-M 3x0.5（7m m D ep th ）
W ith	4 - 3.4 THRU
Output frequency	950-1950 MHz
Noise figure	1.5 dB (RF at band 2, 3, 6)
Conversion gain	55 to 65 dB
Output p-1db	10 dBm min., 15 dBm typ.
Phase noise	-75 dBc/Hz @1 KHz
Image rejection	30 dBc min.
Output spurious	-50 dBc max.
Power consumption	5 W
RF input vswr	2.5:1
If output vswr	2.0:1
Dimensions	5.242.361.18 inches
Mass	0.93 lbs
Operating temperature	-40 to +60 oC
Humidity	0-100 % (condensing)
Altitude	0-10,000 feet ASL

Low Noise Block (LNB) — RGLN - A FB, frequency 17.7 - 21.2 GHz (Tri Band or Quad Band), output Ka.

1 19

Frequency	17.7 - 21.2 GHz (Tri Band or Quad Band)
Power/output	Ka
Output frequency	950-1950 MHz
Noise figure	1.5 dB (RF at band 1, 2, 3)
Conversion gain	55 to 65 dB
Output p-1db	10 dBm min. 15 dBm typ.
Phase noise	-75 dBc/Hz @1 KHz
Image rejection	40 dB @16.75 GHz,
Output spurious	-50 dBc max.
Input power	12-24 VDC via IFL
Band	1: 12-15 VDC & no Tone; 2: 16-24 VDC & no Tone; 3: 16-24 VDC & 22KHz Tone; 4: 12-15 VDC & 22KHz Tone
Power consumption	5 W
Input vswr	2.0:1
Output vswr	2.0:1
Dimensions	4.412.361.04 inches
Mass	0.66 lbs
Operating temperature	-40 to +60 oC
Humidity	0-100% (condensing)
Altitude	0-10,000 feet ASL

Low Noise Block (LNB) — RGLN - A Mini, frequency 18.2 - 21.7 GHz (Many band options), output Ka.

1 18

Frequency	18.2 - 21.7 GHz (Many band options)
Power/output	Ka
With	4-M3x0.5 （6 mm Depth ）
Output frequency	950-1950 MHz
Noise figure	1.5 dB (RF at band 2, 3, 6,8)
Conversion gain	55 to 65 dB
Output p-1	10 dBm min., 15 dBm typ.
Phase noise	-73 dBc/Hz @ 1 KHz
Image rejection	30 dBc min.
Output spurious	-50 dBc max.
Power consumption	5 W
RF input vswr	2.5:1
If output vswr	2.0:1
Dimensions	3.462.200.98 inches
Mass	0.42 (F-type) lbs
Operating temperature	-40 to +60oC
Humidity	0-100% (condensing)
Altitude	0-10,000 feet ASL

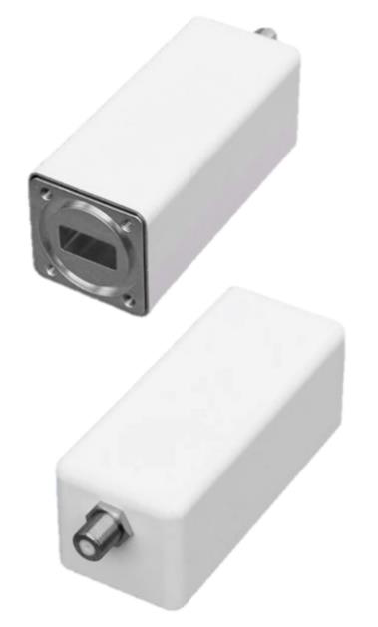

Low Noise Block (LNB) — RGLN - U, frequency 10.7 – 12.75GHz (Band switchable via voltage or 22kHz tone), output Ku.

1 16

Frequency	10.7 – 12.75 GHz (Band switchable via voltage or 22 kHz tone)
Power/output	Ku
W ith	4-M4x0 .7 （ 7 mm Depth）
Power consumption	3 W
Input vswr	2.5:1
Output vswr	2.0:1
Dimensions inch	3.70x1.57*1.57
Weight lbs	0.53
Operating temperature	-40 to +60 oC
Humidity	0-100 % (Condensing)
Altitude	0-10,000 feet ASL
Noise figure	0.8 dB typ., 1.0 dB max.
Conversion gain	60 dB
Output p1db	5 dBm min.
Phase noise	-60 dBc/Hz @100 Hz,
Output spurious	-55 dBc @ -10 dBm (IF output)

Ka-Band VSAT Transceiver — RGTR-A, frequency Tx 29.0-30.0GHz Rx 18.2-21.2GHz (Many band options available), output 10W.

1 27

Frequency	Tx 29.0-30.0 GHz Rx 18.2-21.2 GHz (Many band options available)
Power/output	10 W
Tx RF frequency	29.00-30.00 GHz
If input frequency1	1400-2400 MHz
External reference	10 MHz, 0±5 dBm
Output power	10 W
Rated/saturated	40 dBm
Plin1	39 dBm
Plin2	37 dBm
Small signal gain	65 dB (50-65 dB, Step by 0.25 dB)
Gain flatness	3 dB p-p/500 MHz; 1 dB p-p / 36 MHz
Gain stability	3 dB p-p
Output spurious	-55 dBc
Output frequency	950-1950 MHz/950-2150 MHz
Lo frequency	16.75/17.5/18.25/19.25 GHz(For Quad-band)
Switched by m&c	17.25/18.25 GHz(For Dual-band)
Noise figure	1.5 dB typ., 1.6 dB max.@20.2-21.2 GHz
P-1db	10 dB min.
Gain	60 dB
Image rejection	30 dB typ.
Dimensions	5.905.511.97 Operating Temp -40 to +60 ℃
Mass	3.08 Altitude 0-10,000 feet ASL lbs
Input power	18 - 55 VDC Input Power +12 to +24 VDC
Power consumption	10 W Power Consumption 6 W
Prated (including Fan)	60 W typ. 70 W max
Ms connector	4-Pin for Power supply
Te t4130012081-000	4-pin for M&C (RS422/RS485)

Block Up-Converter (BUC) — RGUC-A Classic, frequency 27.5-31 GHz (Many band options available), output 40W.

1 20

Frequency	27.5-31 GHz (Many band options available)
Power/output	40 W
Pt0	2E-12-14P
RF output vswr	1.25:1
If input vswr	1.5:1
Dimensions	259136136 mm
Mass	6 kg
Operating temperature	-40 to +60 ℃
Humidity	0-100% (Condensing)
Altitude	0-10000 F ASL
External reference	10 MHz, 0 ± 5 dBm
Output power	40 W BUC
Imd3 at linear output power	-25 dBc max.
Small signal gain	70 dB
Gain stability	3 dB p-p
Gain adjustment range	20 dB (Step: 0.1 dB)
Phase noise	-63 dBc/Hz @100 Hz,
Output spurious	-55 dBc max.
Suite	450 Reston, Virginia 20191 USA
R g u c - a a	0 4 0 - b B R E N - A 0

Block Up-Converter (BUC) — RGUC-A High Power, frequency 27.5-31 GHz (Many band options available), output 300W.

1 31

Frequency	27.5-31 GHz (Many band options available)
Power/output	300 W
Block up-converter (buc) KA-band	300 W
Wr34 output4-m3 depth	6
RF frequency	27.50-30.00 GHz (27.50-31.00 GHz optional)
If frequency	0.95-1.95 GHz
External ref	10 MHz, 0 ± 5 dBm
Oscillator accuracy	±100 ppb typ.
Oscillator stability	± 5 ppb typ.
Output power rated	54.8 dBm
Plin1	53.8 dBm
Plin2	52.8 dBm
Plin3	51.8 dBm
Imd3 (@Prated-3dB)	-25 dBc
Small signal gain	70 dB min. @ Prated-3dB
Gain adjustment	45-70 dB (25 dB, Step by 0.5 dB)
Gain variation	0.1 dB p-p/MHz; 3 dB p-p/500 MHz; 4 dB p-p/1000 MHz
Gain stability	2 dB p-p min
Phase noise	-63 dBc/Hz @100 Hz; -81 dBc/Hz @1 KHz; -85 dBc/Hz @10 KHz; -95 dBc/Hz @100 KHz
Output spurious	-60 dBc max.
Harmonic	-30 dBc max. @ Prated (-60 dBc with optional filter)
Input power	200 to 240 VAC (50-60 Hz)
Power consumption @rated	2,800 W typ.
Power consumption @plin3	1,800 W typ.
RF output connector	WR34-G (Grooved), WR28-G (Grooved) optional
RF output vswr	1.3:1
Dimensions	17.72x15.75x9.05 in (450x400x230 mm)
Mass	66.13 lbs (30 kg)
Operating temperature	-40 to +60 C
Humidity	0-100% (condensing)
Altitude	0-10,000 feet ASL

Block Up-Converter (BUC) — RGUC-A Low Power, frequency 27.5-31 GHz (Many band options available), output 10W, 20W.

1 25

Frequency	27.5-31 GHz (Many band options available)
Power/output	10 W, 20 W
If frequency	950-1950 MHz
External ref	10 MHz, 0  5 dBm
Output power	10 W BUC 20 W BUC
Rated/psat	40 dBm 43 dBm
Plin1	39 dBm 42 dBm
Plin2	38 dBm 41 dBm
Plin	37 dBm 40 dBm
Imd3 (3dB from rated)	-25 dBc
Small signal gain	70 dB
Gain variation	1 dB p-p / 36 MHz
Gain stability	3 dB p-p
Gain adjustment	20 dB (Step: 0.25 dB)
Phase noise	-63 dBc / Hz @ 100 Hz
Output spurious	-55 dBc
Input power	+18 to +55 vDC
Power consumption	10 W BUC 20 W BUC
RF output vswr	1.3:1
If input vswr	2:1
Dimensions	5.53.942.95 inches
Mass	2.64 lbs
Operating temperature	-40 to +60oC
Humidity	0-100% (condensing)
Altitude	0-10,000 feet ASL

Block Up-Converter (BUC) — RGUC-A Mid Power, frequency 27.5-31 GHz (Many band options available), output 20W.

1 25

Frequency	27.5-31 GHz (Many band options available)
Power/output	20 W
RF frequency	27.5 -31 GHz
If frequency	950-1950 MHz
External ref	10 MHz, 0  5 dBm
Output power	20 W BUC
Prated / psat	43 dBm / 43 dBm min.
Plin1	42 dBm
Plin2	41 dBm
Plin	40 dBm
Imd3 (3dB from rated)	-25 dBc max.
Small signal gain	70 dB
Gain variation	1 dB p-p / 36 MHz
Gain stability	3 dB p-p
Gain adjustment	20 dB (50-70 dB, Step: 0.1 dB)
Phase noise	-63 dBc / Hz @ 100 Hz
Output spurious	-55 dBc
Input power	+36 to +72 VDC
RF output vswr	1.25:1
If input vswr	1.5:1
Dimensions	8.15.33.4 inches
Mass	7.3 lbs
Operating temperature	-40 to +60oC
Humidity	0-100% (condensing)
Altitude	0-15,000 feet ASL

Block Up-Converter (BUC) — RGUC-A mPower, frequency 27.5-31 GHz (Many band options available), output 40W, 80W.

1 32

Frequency	27.5-31 GHz (Many band options available)
Power/output	40 W, 80 W
Cat.	5e RJ45
Conec	17-111204
Band	2=30.00 – 31.0 950 – 1950 29.05; 1=27.50 – 28.50 950 – 1950 26.55; 2=28.25 – 29.25 950 – 1950 27.30; 3=29.00 – 30.00 950 – 1950 28.05; 4= 30.00 – 31.00 950 – 1950 29.05; 4=27.652 – 28.388 1052 – 1788 26.60; 5=28.172 – 29.071 972 – 1871 27.20
Output frequency	27.50-31.00 GHz (the detail as below list)
Mpower network band	1 Band 2 Band 3
RF frequency	27.50-28.50 28.25-29.25 29.00-30.00; 27.652-28.388 28.172-29.071
If frequency	950-1950 950-1950 950-1950; 1052-1788 972-1871
Lo frequency	26.55 27.30 28.05; 26.60 27.20
O3b network band	4 Band 5
External ref	10 MHz, 0  5 dBm
Output power	40 W BUC 80 W BUC
Rated/saturated	46 dBm 49 dBm
Plin1	45 dBm 48 dBm
Plin2	44 dBm 47 dBm
Plin	43 dBm 46 dBm
Small signal gain	67-77 dB
Gain variation	1 dB p-p / 36 MHz
Gain stability	3 dB p-p
Gain adjustment	10 dB (Step: 0.1 dB)
Phase noise	-63 dBc / Hz @ 100 Hz
Output spurious	-60 dBc
Input power	+36 to +60 VDC
Power consumption	40 W BUC 80 W BUC
RF output vswr	1.25:1
If input vswr	1.5:1
Dimensions	10.65.46.1 inches
Mass	40 W BUC 80 W BUC
Operating temperature	-40 to +60oC
Humidity	0-100% (condensing)
Altitude	0-10,000 feet ASL

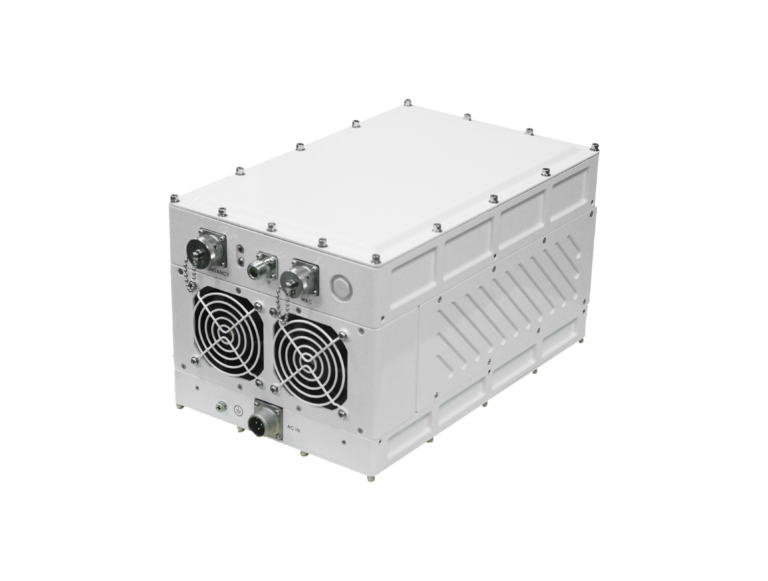

Block Up-Converter (BUC) — RGUC-Aa160-ACREN-A0, frequency 27.5-31 GHz (Many band options available), output 160W.

1 25

Frequency	27.5-31 GHz (Many band options available)
Power/output	160 W
Input power	100 to 240 VAC (50-60 Hz)
RF output vswr	1.3:1
If input vswr	1.5:1
Dimensions	13.78.667.87 inches
Mass	33 lbs
Operating temperature	-40 to +60oC
Humidity	0-100% (condensing)
Altitude	0-10,000 feet ASL
If frequency	950-1950 MHz
External ref	10 MHz, 0  5 dBm
Saturated	52 dBm (Peak to Peak)
Rated	51 dBm (CW Power)
Plin1	50 dBm
Plin2	49 dBm
Plin3	48 dBm
Noise power ratio (NPR)	-19 dBc @48.3 dBm or 68 W
Small signal gain	55-75 dB
Gain variation	1 dB p-p / 36 MHz
Gain adjustment	20 dB (Step: 0.1 dB)
Phase noise	-63 dBc / Hz @ 100 Hz
Output spurious	-60 dBc
Optional	1:1 Redundancy Configuration; 1:1 Redundancy Kit
Switchka	160 W BUC KA 160 W BUC

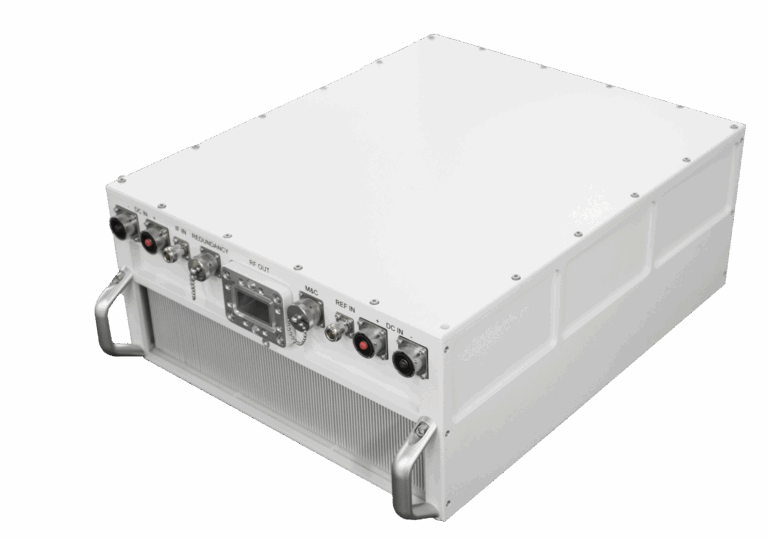

Block Up-Converter (BUC) — RGUC-C High Power, frequency S: 5.850-6.425 GHz E: 5.850-6.725 GHz, output 800, 1000W.

1 36

Frequency	S: 5.850-6.425 GHz E: 5.850-6.725 GHz
Power/output	800, 1000 W
J1 if input n-type female	950-1825 MHz Input overdrive protection
J2 RF output wr137-g	5.850-6.725 GHz
J4 redundancy connector pt02e-12-14p /	1:1/1:2 redundant system control interface
J5 ref in n-type female	10 MHz Reference clock input
J6 AC power supply /	200 to 240 VAC (50 -60 Hz) Power for BUC
J9 tx lo sample n-type female	4.90 GHz TX LO Detection (optional)
Input power	200 to 240 VAC (50-60 Hz)
Power consumption	800 W 1000 W
RF output vswr	1.3:1
If input vswr	1.5:1
Dimensions	508425265 (LWH) mm
Mass	99.20 lbs
Operating temperature	-40 to +55 oC
Humidity	0-95% (Condensing)
Altitude	0-3000 m
Above	3000 meters, for every 1000
Drops by	6° C)
Lo frequency	4.90 GHz
External ref	10 MHz, 05 dBm (internal ref optional)
Output power	800 W 1000 W
Saturated	59.5 dBm 60.5 dBm
Rated	59 dBm 60 dBm
Plin1	58 dBm 59 dBm
Plin2	57 dBm 58 dBm
Plin3	56 dBm 57 dBm
Small signal gain	75 dB
Gain variation	1.5 dB p-p / 40 MHz
Gain stability	3 dB p-p
Gain adjustment	20 dB (55-75 dB, Step: 0.1 dB)
Tx noise density	-76 dBm/Hz
Rx noise density	-150 dBm/Hz @3.4-4.2 GHz
Phase noise	-68 dBc / Hz @ 100 Hz
Output spurious	-60 dBc min. -65 dBc typ.
Optional	1:1 Redundancy Configuration; 1:1 Redundancy Kit

Block Up-Converter (BUC) — RGUC-C Low Power (IFL), frequency S: 5.850-6.425 GHz E: 5.850-6.725 GHz, output 20W, 40W.

1 28

Frequency	S: 5.850-6.425 GHz E: 5.850-6.725 GHz
Power/output	20 W, 40 W
Pt02e	-14-19P
DC version	+36 ~ +72 VDC (optional)
AC version	+85 to +265 VAC (47-63 Hz)
Power consumption	25 W BUC 40 W BUC
RF output vswr	1.25:1
If input vswr	1.5:1
Dimensions	10.15.34.5 10.15.35.3 inches
Mass	9.7 10.6 lbs
Operating temperature	-40 to +60oC
Humidity	0-100% (condensing)
Altitude	0-15,000 feet ASL
RF frequency	5.850-6.425 GHz 5.850-6.725 GHz
If frequency	950-1525 MHz 950-1825 MHz
Local frequency	4.9 GHz 4.9 GHz
External ref	10 MHz, 0±5 dBm
Output power	25 W BUC 40 W BUC
Rated/saturated	44 dBm 46 dBm
Plin1	43 dBm 45 dBm
Plin2	42 dBm 44 dBm
Plin	41 dBm 43 dBm
Small signal gain	70 dB
Gain variation	1 dB p-p/36 MHz
Gain adjustment	20 dB (50-70dB, Step: 0.1 dB)
Phase noise	-65 dBc/Hz@100 Hz
If &	10 MHz IN
Optional	1:1 Redundancy Configuration; 1:1 Redundancy Kit

Block Up-Converter (BUC) — RGUC-D Mid Power, frequency S: 17.3-18.1 GHz E: 18.1-18.4 GHz, output 20W, 40W.

1 27

Frequency	S: 17.3-18.1 GHz E: 18.1-18.4 GHz
Power/output	20 W, 40 W
RF frequency	17.3-18.GHz 18.1-18.4 GHz
If frequency	950-1750 MHz 1150-1450 MHz
Local frequency	16.35 GHz 16.95 GHz
External ref	10 MHz, 0±5 dBm
Output power	20 W 40 W
Rated/saturated	43 dBm 46 dBm
Plin1	42 dBm 45 dBm
Plin2	41 dBm 44 dBm
Plin3	40 dBm 43 dBm
Small signal gain	70 dB
Gain variation	0.25 dB p-p/1 MHz
Gain stability	3 dB p-p
Gain adjustment	20 dB (Step: 0.5 dB)
Phase noise	-62 dBc/Hz@100 Hz
Output spurious	-55 dBc
R g u c - d a b b -	4 8 R E
Input power	+36 to +72 vDC
Power consumption	20 W 40 W
RF output vswr	1.25:1
If input vswr	1.5:1
Dimensions	8.115.353.47 inches
Mass	7.2 7.7 lbs
Operating temperature	-40 to +60oC
Humidity	0-100% (condensing)
Altitude	0-10,000 feet ASL

Block Up-Converter (BUC) — RGUC-U High Power, frequency S: 14.00-14.50 GHZ E: 13.75-14.50 GHZ, output 100W, 120W.

1 27

Frequency	S: 14.00-14.50 GHZ E: 13.75-14.50 GHZ
Power/output	100 W, 120 W
Input power	85 to 265 VAC (47-63 Hz)
Power consumption	100 W BUC 120 W BUC
RF output vswr	1.25:1
If input vswr	1.5:1
Dimensions	9.75.35.3 inches
Mass	12.5 lbs
Operating temperature	-40 to +60oC (guarantee)
Humidity	0-100% (condensing)
Altitude	0-10,000 feet ASL
If frequency	950-1450 MHz 950-1700 MHz
External ref	10 MHz, 0  5 dBm
Output power	100 W BUC 120 W BUC
Rated/saturated	50 dBm 50.8 dBm
Plin1	49 dBm 49.8 dBm
Plin2	48 dBm 48.8 dBm
Plin	47 dBm 47.8 dBm
Imd3 (3db from rated) -	25 dBc
Small signal gain	75 dB
Gain variation	1 dB p-p / 36 MHz
Gain stability	3 dB p-p
Gain adjustment	55-75 dB (Step: 0.1 dB)
Phase noise	-65 dBc / Hz @ 100 Hz
Output spurious	-60 dBc
KU 120w buc KU	120 W BUC
Optional	1:1 Redundancy Configuration; 1:1 Redundancy Kit

Block Up-Converter (BUC) — RGUC-U Low Power (IFL or MS), frequency S: 14.00-14.50 GHZ E: 13.75-14.50 GHZ, output 8W, 10W, 16W, 20W.

1 27

Frequency	S: 14.00-14.50 GHZ E: 13.75-14.50 GHZ
Power/output	8 W, 10 W, 16 W, 20 W
Input power	+18 to +56 VDC
Power consumption	8 W
If input vswr	1.5:1
Via ms connector	4 Pin from PT02E-14-12P(072)
M&c available	8 Pin from PT02E-14-12P(072)
Dimensions	5.93.152.56 inches
Mass	2.2 lbs
Operating temperature	-40 to +60oC
Humidity	0-100% (condensing)
Altitude	0-10,000 feet ASL
If frequency	950-1450 MHz 950-1700 MHz
External ref	10 MHz, 0  5 dBm
Output power	8 W
Prated	39 40 42 43 dBm
Plin1	38 39 41 42 dBm
Plin2	37 38 40 41 dBm
Plin	36 37 39 40 dBm
Imd3 (3dB from rated)	-25 dBc
Small signal gain	8 W
No m&c (fixed)	65 65 70 70
With m&c (1dB steps)	50-65 50-65 50-70 50-70
Gain variation	1 dB p-p / 36 MHz
Gain stability	3 dB p-p
Phase noise	-60 dBc / Hz @ 100 Hz
Output spurious	-55 dBc

Block Up-Converter (BUC) — RGUC-U Low Power (IFL), frequency S: 14.00-14.50 GHZ E: 13.75-14.50 GHZ, output 6W, 8W.

1 24

Frequency	S: 14.00-14.50 GHZ E: 13.75-14.50 GHZ
Power/output	6 W, 8 W
Input power	+18 to +36 VDC
Power consumption	6 W BUC 8 W BUC
RF output vswr	2:1
Dimensions	6.84.02.0 inches
Mass	2.6 lbs
Operating temperature	-40 to +60 oC -40 to +55 °C
Humidity	0-100% (condensing)
Altitude	0-10,000 feet ASL
RF frequency	14.00-14.50 GHz 13.75-14.50 GHz
If frequency	950-1450 MHz 950-1700 MHz
External ref	10 MHz, 0  5 dBm
Output power	6 W BUC 8 W BUC
Saturated	37.8 dBm 39 dBm
Plin1	36.8 dBm 38 dBm
Plin2	36 dBm 37 dBm
Plin	35.5 dBm 36 dBm
Small signal gain	60 dB
Gain variation	1 dB p-p / 36 MHz
Gain stability	4 dB p-p
Rx noise density	-144 dBm/Hz (10.70-12.75 GHz )
Phase noise	-60 dBc / Hz @ 100 Hz
Output spurious	-50 dBc

Block Up-Converter (BUC) — RGUC-U Mid Power, frequency S: 14.00-14.50 GHZ E: 13.75-14.50 GHZ, output 40W, 50W, 60W.

1 29

Frequency	S: 14.00-14.50 GHZ E: 13.75-14.50 GHZ
Power/output	40 W, 50 W, 60 W
Power consumption	40 W BUC 50 W BUC 60 W BUC
RF output vswr	1.25:1
If input vswr	2:1
Power	4 pins for power supply
M&c	8 pins for M&C (RS485/Eth)
Dimensions	6.293.932.99 inches
Mass	3.3 lbs
Operating temperature	-40 to +60oC (guaranteed)
Humidity	0-100% (condensing)
Altitude	0-10,000 feet ASL
If frequency	950-1450 MHz 950-1700 MHz
External ref	10 MHz, 0  5 dBm
Output power	40 W BUC 50 W BUC 60WBUC
Saturated	46.5 dBm 47 dBm 47.8 dBm
Rated	46 dBm 47 dBm 47.5 dBm
Plin1	45 dBm 46 dBm 46.5 dBm
Plin2	44 dBm 45 dBm 45.5 dBm
Plin	43 dBm 44 dBm 44.5 dBm
Imd3 (3dB back off Prated)	-25 dBc
Small signal gain	70 dB
Gain variation	1 dB p-p / 36 MHz
Gain stability	3 dB p-p
Gain adjustment	20 dB (50-70 dB, Step: 0.1 dB)
Phase noise	-75 dBc/Hz @ 1 KHz
Output spurious	-55 dBc
Optional	1:1 Redundancy Kit
Splitterku	60 W BUC KU 60 W BUC

Block Up-Converter (BUC) — RGUC-U Mid Power (Dual Band), frequency Band 1: 12.75-13.5GHz Band 2: 13.75-14.5GHz, output 8W, 16W, 25W.

1 24

Frequency	Band 1: 12.75-13.5 GHz Band 2: 13.75-14.5 GHz
Power/output	8 W, 16 W, 25 W
Power consumption	8 W BUC 16 W BUC 25 W BUC
RF output vswr	1.25 : 1
If input vswr	1.5 : 1
Dimensions	5.913.942.95 inch
Mass	2.97 lbs
Operating temperature	-40 to +60 oC (guarantee)
Humidity	0-100 % (condensing)
Altitude	0-10,000 feet ASL
If frequency	950-1450 MHz 950-1700 MHz
External ref	10 MHz, 0  5 dBm
Output power	8 W BUC 16 W BUC 25 W BUC
Saturated	39.5 dBm 42.5 dBm 44.5 dBm
Rated	39.0 dBm 42.0 dBm 44.0 dBm
Plin1	38.0 dBm 41.0 dBm 43.0 dBm
Plin2	37.0 dBm 40.0 dBm 42.0 dBm
Plin	36.0 dBm 39.0 dBm 41.0 dBm
Small signal gain	55-70 dB
Gain variation	1 dB p-p / 36 MHz
Gain stability	3 dB p-p / band
Gain adjustment	15 dB (Step: 1 dB)
Phase noise	-60 dBc / Hz @100 Hz
Output spurious	-55 dBc

Additional Services

Engineering & analysis

Details →

RevGo Global provides custom satellite earth station RF product designs for specific customer applications. This service includes RF and transceiver design for satellite communication, catering to system integrators, satellite service providers, and end-customers. The company utilizes its extensive RF experience,…

Full details →

Details →

RevGo Global offers RF and transceiver design services specifically for satellite communication. These services are provided to system integrators, satellite service providers, and end-customers. The company emphasizes its extensive RF experience to deliver highly linear, high-volume production, and cost-effective solutions.…

Full details →

Reviews

No reviews yet — reviews come from buyer accounts that have worked with this company.

Write a review

← All providers

RevGo

About RevGo

Photos 1

Products

RGLN - A

RGLN - A

Description

Specifications

RGLN - A FB

RGLN - A FB

Description

Specifications

RGLN - A Mini

RGLN - A Mini

Description

Specifications

RGLN - U

RGLN - U

Description

Specifications

RGTR-A

RGTR-A

Description

Specifications

RGUC-A Classic

RGUC-A Classic

Description

Specifications

RGUC-A High Power

RGUC-A High Power

Description

Specifications

RGUC-A Low Power

RGUC-A Low Power

Description

Specifications

RGUC-A Mid Power

RGUC-A Mid Power

Description

Specifications

RGUC-A mPower

RGUC-A mPower

Description

Specifications

RGUC-Aa160-ACREN-A0

RGUC-Aa160-ACREN-A0

Description

Specifications

RGUC-C High Power

RGUC-C High Power

Description

Specifications

RGUC-C Low Power (IFL)

RGUC-C Low Power (IFL)

Description

Specifications

RGUC-D Mid Power

RGUC-D Mid Power

Description

Specifications

RGUC-U High Power

RGUC-U High Power

Description

Specifications

RGUC-U Low Power (IFL or MS)

RGUC-U Low Power (IFL or MS)

Description

Specifications

RGUC-U Low Power (IFL)

RGUC-U Low Power (IFL)

Description

Specifications

RGUC-U Mid Power

RGUC-U Mid Power

Description

Specifications

RGUC-U Mid Power (Dual Band)

RGUC-U Mid Power (Dual Band)

Description

Specifications
