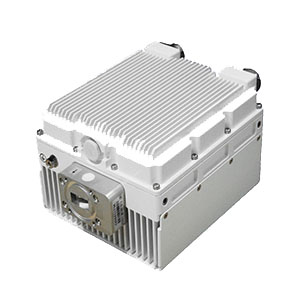

RGUC-U Mid Power
RevGo
Block Up-Converter (BUC) — RGUC-U Mid Power, frequency S: 14.00-14.50 GHZ E: 13.75-14.50 GHZ, output 40W, 50W, 60W.
Key figurescomparable across the catalogue
- Mass
- 1.5 kg
- Power
- 40 W
- Largest dimension
- 159.77 mm
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Frequency
- S: 14.00-14.50 GHZ E: 13.75-14.50 GHZ
- Power/output
- 40 W, 50 W, 60 W
- Power consumption
- 40 W BUC 50 W BUC 60 W BUC
- RF output vswr
- 1.25:1
- If input vswr
- 2:1
- Power
- 4 pins for power supply
- M&c
- 8 pins for M&C (RS485/Eth)
- Dimensions
- 6.29*3.93*2.99 inches
- Mass
- 3.3 lbs
- Operating temperature
- -40 to +60oC (guaranteed)
- Humidity
- 0-100% (condensing)
- Altitude
- 0-10,000 feet ASL
- If frequency
- 950-1450 MHz 950-1700 MHz
- External ref
- 10 MHz, 0 5 dBm
- Output power
- 40 W BUC 50 W BUC 60WBUC
- Saturated
- 46.5 dBm 47 dBm 47.8 dBm
- Rated
- 46 dBm 47 dBm 47.5 dBm
- Plin1
- 45 dBm 46 dBm 46.5 dBm
- Plin2
- 44 dBm 45 dBm 45.5 dBm
- Plin
- 43 dBm 44 dBm 44.5 dBm
- Imd3 (3dB back off Prated)
- -25 dBc
- Small signal gain
- 70 dB
- Gain variation
- 1 dB p-p / 36 MHz
- Gain stability
- 3 dB p-p
- Gain adjustment
- 20 dB (50-70 dB, Step: 0.1 dB)
- Phase noise
- -75 dBc/Hz @ 1 KHz
- Output spurious
- -55 dBc
- Optional
- 1:1 Redundancy Kit
- Splitterku
- 60 W BUC KU 60 W BUC
About
RevGo Global’s RGUC-U Mid Power is a block up-converter (buc) designed for satellite ground-segment (VSAT/SNG/maritime) RF chains, manufactured by RevGo Global Inc. (Reston, VA, USA), a satellite earth-station RF equipment manufacturer founded in 2002 and operating an ISO 9001:2015 quality system. This model operates over S: 14.00-14.50 GHZ E: 13.75-14.50 GHZ with rated output/class of 40W, 50W, 60W. RevGo’s product line uses highly integrated RF technologies (RFIC and GaN), is designed for high-volume production, and is built for rugged outdoor operation (typ. -40 to +60C, 0-100% humidity condensing, up to 10,000 ft altitude). Typical applications include maritime VSAT terminals, 5G backhaul, SNG (satellite news gathering) vehicles, and fixed, portable, or transportable satellite terminals. Full RF, power, mechanical, and interface specifications are provided in the manufacturer’s datasheet linked below.
