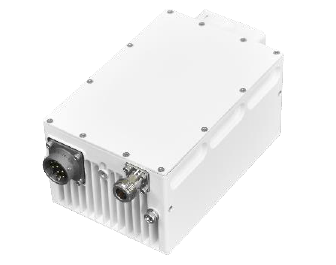

RGUC-U Mid Power (Dual Band)
RevGo
Block Up-Converter (BUC) — RGUC-U Mid Power (Dual Band), frequency Band 1: 12.75-13.5GHz Band 2: 13.75-14.5GHz, output 8W, 16W, 25W.
Key figurescomparable across the catalogue
- Mass
- 1.35 kg
- Power
- 8 W
- Largest dimension
- 150.11 mm
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Frequency
- Band 1: 12.75-13.5 GHz Band 2: 13.75-14.5 GHz
- Power/output
- 8 W, 16 W, 25 W
- Power consumption
- 8 W BUC 16 W BUC 25 W BUC
- RF output vswr
- 1.25 : 1
- If input vswr
- 1.5 : 1
- Dimensions
- 5.91*3.94*2.95 inch
- Mass
- 2.97 lbs
- Operating temperature
- -40 to +60 oC (guarantee)
- Humidity
- 0-100 % (condensing)
- Altitude
- 0-10,000 feet ASL
- If frequency
- 950-1450 MHz 950-1700 MHz
- External ref
- 10 MHz, 0 5 dBm
- Output power
- 8 W BUC 16 W BUC 25 W BUC
- Saturated
- 39.5 dBm 42.5 dBm 44.5 dBm
- Rated
- 39.0 dBm 42.0 dBm 44.0 dBm
- Plin1
- 38.0 dBm 41.0 dBm 43.0 dBm
- Plin2
- 37.0 dBm 40.0 dBm 42.0 dBm
- Plin
- 36.0 dBm 39.0 dBm 41.0 dBm
- Small signal gain
- 55-70 dB
- Gain variation
- 1 dB p-p / 36 MHz
- Gain stability
- 3 dB p-p / band
- Gain adjustment
- 15 dB (Step: 1 dB)
- Phase noise
- -60 dBc / Hz @100 Hz
- Output spurious
- -55 dBc
About
RevGo Global’s RGUC-U Mid Power (Dual Band) is a block up-converter (buc) designed for satellite ground-segment (VSAT/SNG/maritime) RF chains, manufactured by RevGo Global Inc. (Reston, VA, USA), a satellite earth-station RF equipment manufacturer founded in 2002 and operating an ISO 9001:2015 quality system. This model operates over Band 1: 12.75-13.5GHz Band 2: 13.75-14.5GHz with rated output/class of 8W, 16W, 25W. RevGo’s product line uses highly integrated RF technologies (RFIC and GaN), is designed for high-volume production, and is built for rugged outdoor operation (typ. -40 to +60C, 0-100% humidity condensing, up to 10,000 ft altitude). Typical applications include maritime VSAT terminals, 5G backhaul, SNG (satellite news gathering) vehicles, and fixed, portable, or transportable satellite terminals. Full RF, power, mechanical, and interface specifications are provided in the manufacturer’s datasheet linked below.
