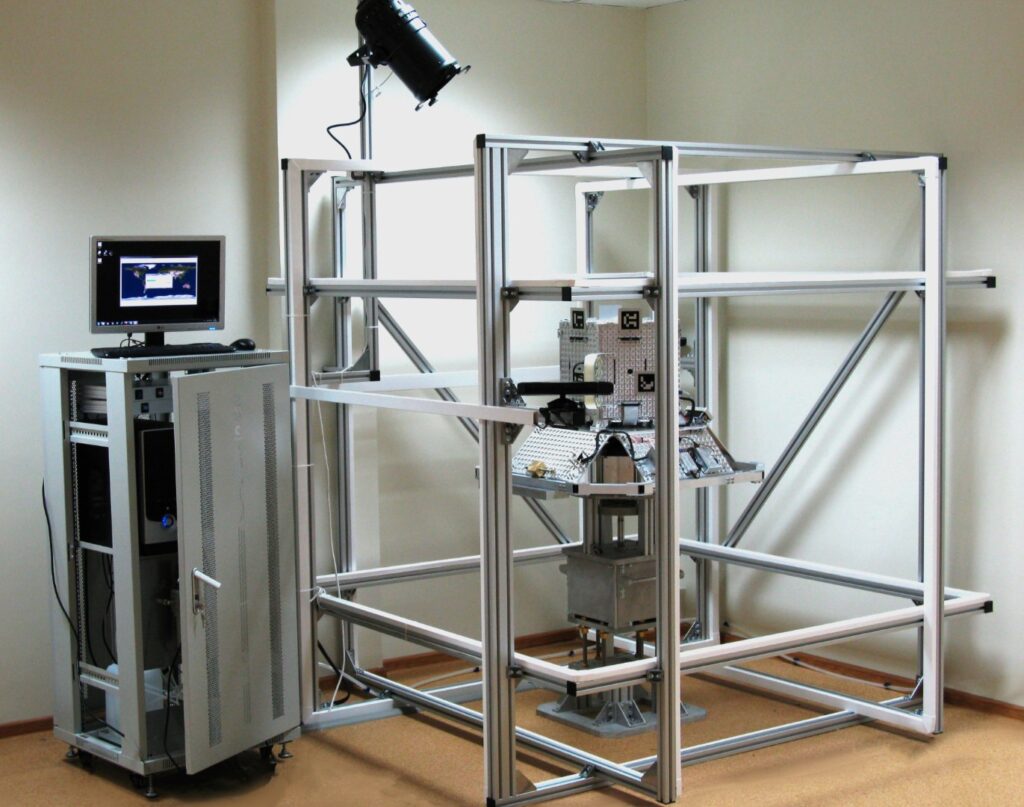

ADCS Hardware-in-the-Loop Simulation Bench
SPUTNIX
Hardware-in-the-loop simulation bench for developing and verifying attitude determination, stabilization and navigation systems of small spacecraft under conditions emulating LEO flight (Helmholtz/Merritt coil magnetic field, air-bearing, sun simulator, optical tracking). Available in three configurations from CubeSat (01) to educational (02) to professional small-satellite testing (03).
Key figurescomparable across the catalogue
- Payload capacity
- 160 kg
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Type
- ADCS hardware-in-the-loop bench
- Sxc config 01
- CubeSat 1U/3U/6U; Helmholtz coils 2 m, Ø600 mm uniform field; air-bearing ≤ 35 kg; pointing accuracy ≤ 0.25°
- Sxc config 02
- Educational; Helmholtz coils 1.3 m, Ø250 mm field; air-bearing ≤ 35 kg; accuracy ≤ 1°
- Sxc config 03
- Professional small-sat; Merritt coils; Ø900–1300 mm field; air-bearing ≤ 160 kg; accuracy ≤ 0.3°
- Sun simulator
- ≥ 90,000 lx at 1.5 m, ~6000 K
- Magnetic field amplitude
- ± 150 µT (config 01)
- Variants
- SXL-SCOE-ADCS-01 / -02 / -03
About
Hardware-in-the-loop simulation bench for developing and verifying attitude determination, stabilization and navigation systems of small spacecraft under conditions emulating LEO flight (Helmholtz/Merritt coil magnetic field, air-bearing, sun simulator, optical tracking). Available in three configurations from CubeSat (01) to educational (02) to professional small-satellite testing (03).
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
