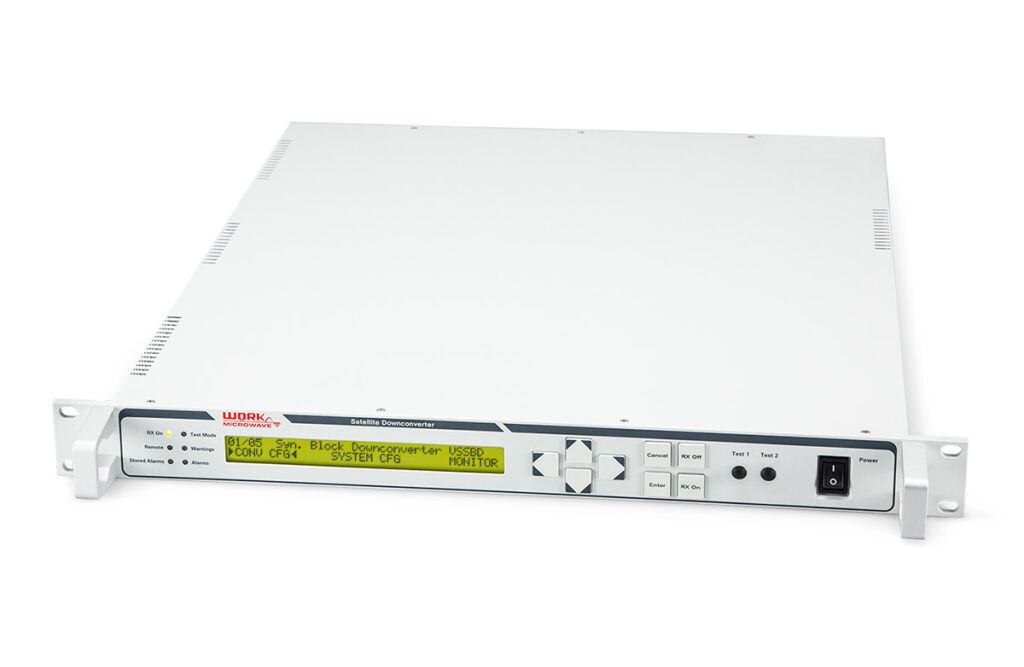

Synthesized Block Downconverter VSSBD
WORK Microwave
Frequency Downconverters for S- to Q-band with L-Band output, available for indoor and outdoor use, and suitable for standard and customized applications.
Technical specifications
- Product Line
- Downconverters
- Application
- Teleport Infrastructure
- Item Number
- VSSBD
- Bands
- S, C, X, Ku, K(DBS), Ka, Q-Band
- Output
- L-Band
- Phase Noise
- < -50 dBc/Hz @ 10 Hz
- OCXO Stability
- < 10 -7 / year
- Gain Slope Equalizer
- +8 dB / GHz max. (optional)
About
The Synthesized Block Downconverter (VSSBD) from WORK Microwave offers frequency downconversion capabilities across a wide range of bands, from S- to Q-Band, with an L-Band output. These versatile downconverters are designed for both indoor and outdoor installations, catering to standard and customized application requirements. Key features include very low phase noise, typically less than -50 dBc/Hz at 10 Hz, ensuring high signal integrity. The unit incorporates a highly stable OCXO with long-term stability better than 10^-7 per year. For enhanced signal conditioning, an optional adjustable gain slope equalizer is available, providing up to +8 dB per GHz. The VSSBD also features digital gain compensation and can be configured as multi-channel or multi-band converters to meet diverse operational needs.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
