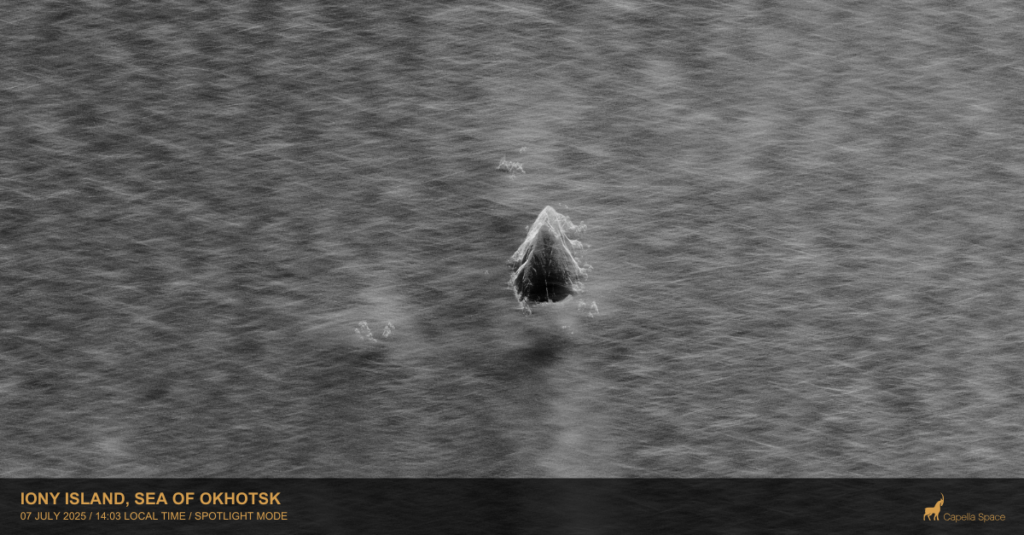

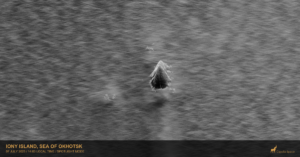

Synthetic Aperture Radar (SAR) Data
Capella Space
Capella delivers high-resolution SAR data for rapid, all-weather insights, enabling monitoring of critical areas of interest and informed decision-making.
Technical specifications
- Ultra Spotlight Scene Size
- 5 km x 5 km
- Ultra Spotlight Azimuth Resolution
- 0.25 m
- Ultra Spotlight Slant Range Resolution
- 0.25 m
- Ultra Spotlight Number Of Looks
- 5
- Spotlight Scene Size
- 5 km x 5 km
- Spotlight Azimuth Resolution
- 0.5 m
- Spotlight Slant Range Resolution
- 0.25 m
- Spotlight Number Of Looks
- 3
- Spotlight Wide Scene Size
- 10 km x 20 km
- Spotlight Wide Azimuth Resolution
- 1.0 m
- Spotlight Wide Slant Range Resolution
- 0.5 m
- Spotlight Wide Number Of Looks
- 3
About
Capella’s Synthetic Aperture Radar (SAR) data provides highly precise radar imaging for all-weather, 24/7 intelligence. With very-high resolution data at 0.25 m azimuth resolution and up to 60-second multi-look dwell, it offers unmatched clarity. The system is designed for sustained performance with 10-minute duty cycles, allowing for longer dwell times and more images per orbit. An intuitive automated platform facilitates self-serve search, tasking, and customization through Automated TCPED. Capella offers various collection types, including Spotlight Ultra for fine details, Spotlight for object classification and change detection, Spotlight Wide for large-area monitoring, Stripmap for broad land use monitoring, and Parallel Stripmap for double coverage while retaining high-resolution. The data is available in detected (SIDD, GEO, GEC, CSI) and complex (SICD, SLC, CPHD) formats, featuring market-leading Noise Equivalent Sigma Zero (NESZ) and easy integration into common geospatial software applications. Benefits include advanced and actionable SAR imagery with vessel classification and Colorized Sub-aperture Imaging (CSI), multi-orbit global coverage, and robust security and trust measures.
Documentation
- 69f896cb4081d83a0d6e0773_1a982f94ee08336d1ad05db7cc5fd62c_Capella_Tech Spec_OnePager-DIGITAL_260112.PDF.pdf PDF source: cdn.prod.website-files.com ↗
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
