Portable Satcom Antennas (ThinPack family)
ThinKom Solutions, Inc.
The ThinPack family of portable Satcom antennas are lightweight, compact, and require no assembly, offering high spectral efficiency for Ku and Ka-band services.
Typed specifications52 values
Discloses 5 of 10 fields engineers filter by in this category (category median 3).
- Frequency band
- Ku datasheet p.1 Ka Ka100 model | Ku Ku100 and Ku100i models | Ku Ku100, Ku100i | X X100 model +2
- Mass
- 4 218.41 g Ka100 antenna weight · datasheet p.2 4 218.41 g Ka100 model | 3 674.1 g Ku100 antenna weight | 3 674.1 g Ku100 model | 2 948.35 g Ku100i antenna weight +3
- Frequency range
- 18 700–21 200 MHz Ka100 model, receive · datasheet p.2 28 100–31 000 MHz Ka100 model, transmit | 18 700–21 200 MHz Ka100 Rx | 28 100–31 000 MHz Ka100 Tx | 10 700–12 750 MHz Ku100 and Ku100i models, receive +7
- Envelope (L×W×H)
- Ku100: 16.1"L x 10.1"W x 3.4"H datasheet p.2 Ku100i: 16.1"L x 9.6"W x 2.1"H | Ka100: 16.8"L x 11.5"W x 2.8"H | X100: 16.1"L x 10"W x 2.8"H
- Polarization
- other Ka100 and X100 models, switchable circular · datasheet p.2 switchable Ka100/X100: Switchable circular | other Ku100 and Ku100i models, linear (manually aligned) | linear Ku100/Ku100i: Linear (manually aligned)
- Antenna type

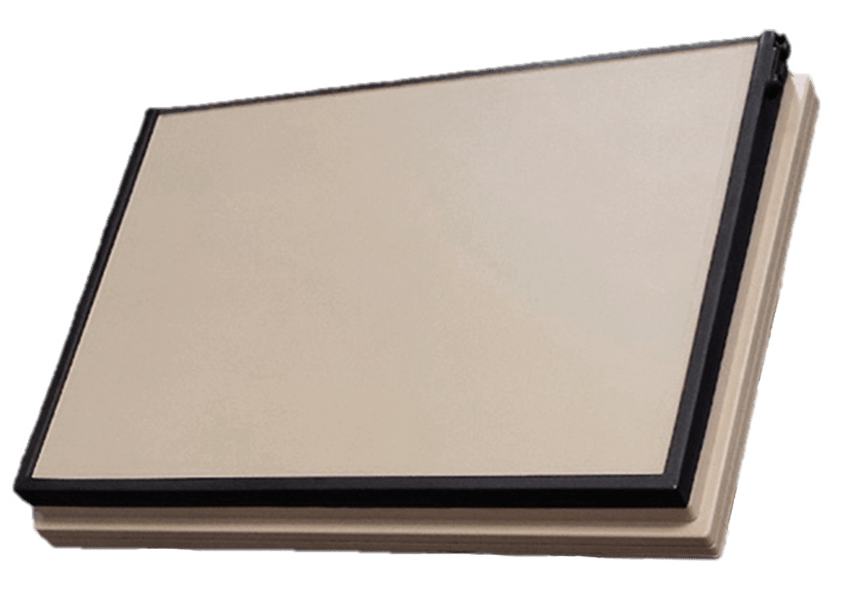

- flat panel array ultra-portable, flat-panel ThinPack antenna · datasheet p.1
- Operating temperature
- -40–60 °C datasheet p.2 -40–60 °C -40°F to +140°F
- Survival temperature
- -40–70 °C datasheet p.2 -40–70 °C storage, -40°F to +158°F
- Axial ratio
- 2 dB max · Ka100/X100 AR, typical · datasheet p.2
- Isolation
- 20 dB max · Ku100/Ku100i X-pol, typical · datasheet p.2 85 dB X100 Tx/Rx isolation | -80 dB max · Ku100/Ku100i Tx/Rx isolation, built-in diplexer/filters
- G/T
- 13 dB/K Ka100 (20.2 GHz) · datasheet p.2 9 dB/K Ku100 (12.25 GHz) | 11.5 dB/K Ku100i (12.25 GHz) | 6.5 dB/K X100 (7.5 GHz)
- EIRP
- 46 dBW Ka100, 30 GHz w/5 W BUC · datasheet p.2 39.5 dBW Ku100, 14.25 GHz w/6 W BUC | 40 dBW Ku100i, 14.25 GHz w/6 W BUC | 37.5 dBW X100, 8.15 GHz w/10 W BUC
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier15 lines, in the manufacturer's own wording
- Spectral efficiency
- up to 2 bits/Hz
- Frequency Band
- Ku-band
- Transmit (Tx) Band
- 13.75-14.5 GHz
- Receive (Rx) Band
- 10.7-12.75 GHz
- G/T
- 9.0 dB/K (12.25 GHz)
- EIRP
- 39.5 dBW (14.25 GHz w/6 W BUC)
- Transmit PSD
- 12.5 dBW/4 kHz
- Parabolic Dish Equivalent
- 40-45 cm
- Polarization
- Linear (manually aligned)
- X-Pol/AR
- <20 dB typical (X-pol)
- Tx/Rx Isolation
- <-80 dB (built-in diplexer/filters)
- Antenna Weight
- 8.1 lbs.
- Operating Temperature
- -40°F to +140°F (-40°C to +60°C)
- Storage Temperature
- -40°F to +158°F (-40°C to +70°C)
- Environmental Compatibility
- MIL-STD-810
About

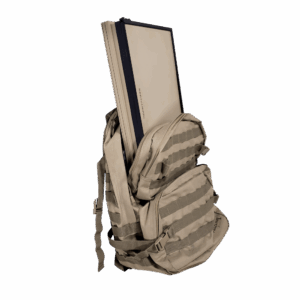

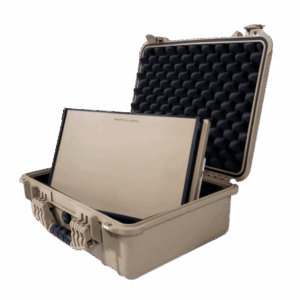

The ThinPack family of Portable Satcom Antennas are designed for efficient and flexible satellite communication. These antennas are compatible with both wide-beam and High Throughput Satellite (HTS) Ku and Ka-band services, offering high spectral efficiency of up to 2 bits/Hz. A key advantage is their network and modem agnostic nature, providing versatility in integration. The antennas are lightweight and compact, making them highly portable, and require no assembly for quick deployment. They are based on ThinKom’s patented Continuous Transverse Stub (CTS) technology, which utilizes principles similar to VICTS to achieve a highly efficient flat panel antenna design.
