POS
TICRA
Industry-standard reflector shaping combined with array optimisation for advanced payload antenna systems.
Technical specifications
- Feature
- Shaping of single-, dual-, and multiple-reflector systems
- Feature (2)
- Array classes with full freedom of configuration for element positions and orientations
- Feature (3)
- Optimisation of array excitation coefficients
- Feature (4)
- Optimisation of array layout
- Feature (5)
- Constraints on excitation coefficients for representation of DBF performance
- Feature (6)
- Optimisation goals for design of HTS antennas
- Feature (7)
- CAD export of shaped reflector surfaces
- Feature (8)
- Large selection of optimisation goals and algorithms
- Benefit
- Seamless integration with other products in TICRA Tools
- Benefit (2)
- Industry standard for design of contoured-beam reflectors
- Benefit (3)

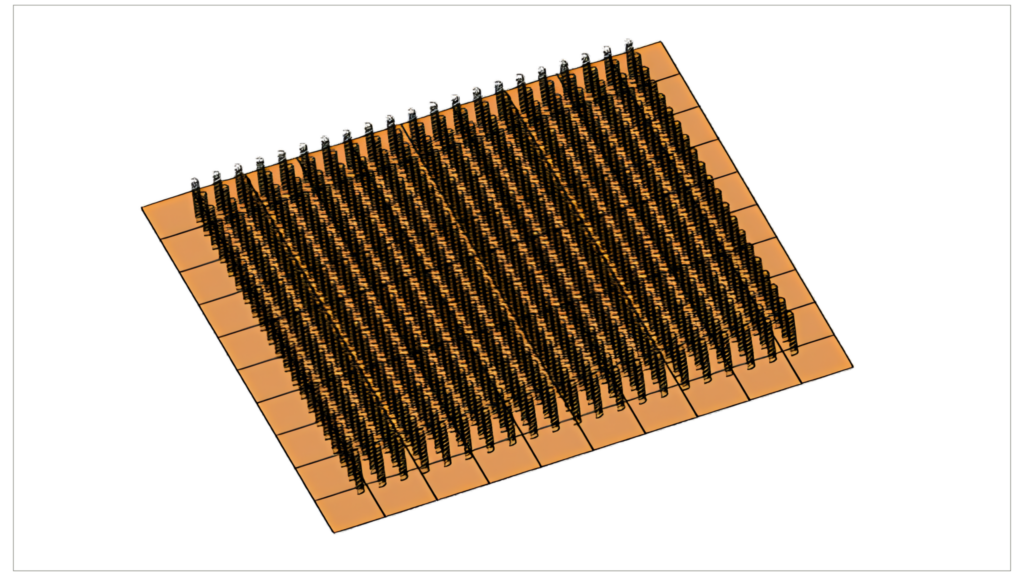

- Convenient and fast optimisation of direct-radiating arrays and array-fed reflectors
- Benefit (4)
- Thoroughly tested by the space industry for decades
About

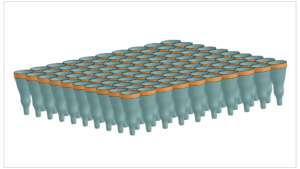

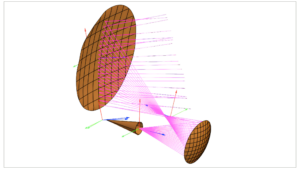

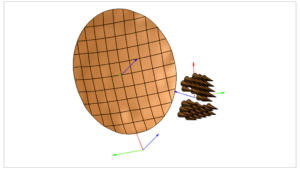

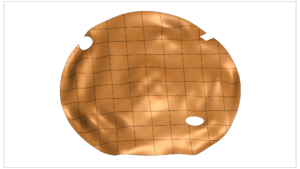

Single, dual and multiple reflector systems can be shaped in POS to achieve contoured beams, with shapes defined via built-in templates in TICRA Tools or by importing station files from SATSOFT. POS provides efficient algorithms for analysis and optimisation of arrays, supporting dense and sparse arrays with identical or unique elements, including elements modelled in CHAMP 3D or ESTEAM, with simultaneous optimisation of elements and excitation coefficients. Array-fed reflectors can be optimised in terms of reflector shape, array geometry, and excitation coefficients, including optimisation across multiple reflector shapes for best performance under multiple thermal conditions. Manufacturing-imposed surface curvature constraints and payload-envelope displacement constraints can be included in the optimisation. POS is integrated in TICRA Tools, making it easy to combine with other TICRA products in daily workflows.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
