QUPES
TICRA
Analysis and design of quasi-periodic surfaces such as reflectarrays, frequency selective surfaces and transmitarrays.
Technical specifications
- Feature
- Analysis and optimisation of scattering parameters of periodic unit cell structures
- Feature (2)
- Predefined library of commonly used geometries
- Feature (3)
- Dedicated methods for the analysis of periodic/quasi-periodic surfaces
- Feature (4)
- Features for multiple panels, holes, planar and curved surfaces
- Feature (5)
- Large-scale direct optimisation of quasi-periodic surfaces for goals on primary as well as secondary radiation patterns
- Benefit
- Seamless integration with other products in TICRA Tools
- Benefit (2)
- Fast and accurate analysis of periodic/quasi-periodic surfaces
- Benefit (3)
- Design of quasi-periodic surfaces in a single tool
- Benefit (4)
- Provides designs with superior performance compared to traditional methods
- Benefit (5)
- Can handle real-life applications
About

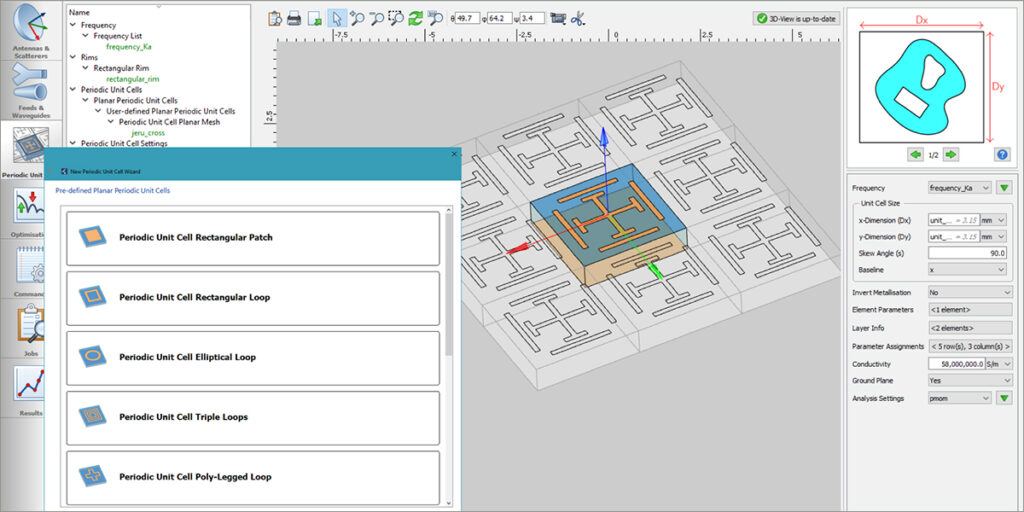

QUPES is a dedicated software tool for the analysis and design of quasi-periodic surfaces such as reflectarrays, frequency selective surfaces (FSS), and transmitarrays. Starting from the definition and design of the unit cell geometry through to optimisation of the entire finite-sized structure, QUPES provides the needed capabilities to design a periodic/quasi-periodic surface in a single tool, avoiding the need for multiple software packages. A built-in library of commonly used periodic unit cell geometries makes it easy to define unit cells, and TICRA Tools’ optimisation capabilities allow users to optimise geometries to fulfil reflection/transmission properties. Its capability to optimise entire quasi-periodic surfaces directly for final radiation-pattern goals is a unique, enabling technology not available in other commercial software.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
