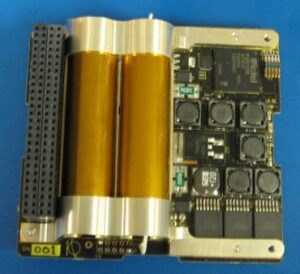

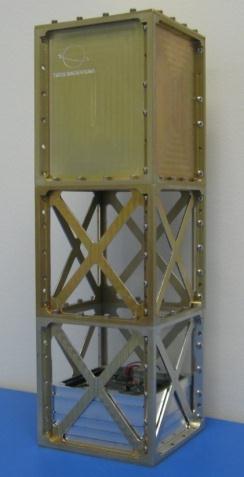

CubeSat 0.5U Electronics Package
Tiger Innovations, Inc.
Compact, P-POD-compatible CubeSat avionics and power package combining C&DH, EPS, RF communications, and I/O boards in only 5 cm of height.
Typed specifications36 values
Discloses 7 of 14 fields engineers filter by in this category (category median 7).
- Mass
- 215 g w/ Batts · datasheet p.1 215 g with Batteries
- Envelope (L×W×H)
- 20mm (Height) datasheet p.1 20 mm height as printed: Height, Mass 20mm; 215g
- Outputs (as printed)
- 5V@2A; 3.3V@2A datasheet p.1 5V@2A; 3.3V@2A regulated voltage
- Power consumption
- 0.05 W Quiescent · datasheet p.1 0.05 W max · quiescent power <50 mW
- Unit type
- integrated EPS with battery Batteries: 2 Li-Ion, 4.2V 1.8A-Hr · datasheet p.1
- Board format
- custom 0.5U Electronics Package · datasheet p.1 PC/104 can be integrated with PC-104 based CubeSat kits | PC/104 EPS can be configured to be integrated with our CubeSat produ…
- Unregulated (battery) bus voltage
- 8.4 V Li-Ion bus available, 1.8 A-Hr · datasheet p.1 12.6 V Li-Ion bus available, 1.8 A-Hr
- Regulated output voltages
- 5 V Regulated Voltage · datasheet p.1 3.3 V Regulated Voltage
- Solar array inputs
- 4 4 w/ Pk Pwr Track, 10W · datasheet p.1
- Max solar input power
- 10 W as printed: Solar Array Inputs 4 w/ Pk Pwr Track, 10W · datasheet p.1
- Solar array regulation
- PPT (peak power tracking) four individual, autonomously-tunable peak power trackers · datasheet p.1
- Protections
- Low V, Over V, Low Amp datasheet p.1 other Bus Protection: Low Amp | under-voltage lockout Bus Protection: Low V | over-voltage Bus Protection: Over V | over-voltage +1
- Flight heritage
- TSX-5, STPSat-1, STPSat-2 product page
- Satellite class
- CubeSat datasheet p.1 microsat 10-100 kg nanosat class spacecraft
- Max current per output
- 2 A 3.3 V rail · datasheet p.1 2 A 3.3V | 2 A 5 V rail | 2 A 5V
- Battery voltage range accepted
- 8.4 V flight proven Li-Ion batteries · datasheet p.1 12.6 V flight proven Li-Ion batteries
- MPPT
- yes peak power trackers · datasheet p.1
- Integrated battery cell configuration
- 2 Li-Ion, 4.2V 1.8A-Hr datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier12 lines, in the manufacturer's own wording
- Electronics package height
- 5 cm (0.5U)
- Board set
- C&DH, EPS, RF Communications, Interface I/O
- Form factor compatibility
- P-POD compatible
- Environmental qualification standard (planned)
- GSFC-STD-7000
- Regulated voltage
- 5 V @ 2 A; 3.3 V @ 2 A
- Solar array inputs
- 4, with peak power tracking, 10 W
- Shunt
- Dissipates excess power
- Batteries
- 2 x Li-Ion, 4.2 V, 1.8 A-Hr (8.4 V and 12.6 V bus options available)
- Bus protection
- Low voltage, over voltage, low amp
- Quiescent power
- < 50 mW
- EPS height / mass
- 20 mm; 215 g (with batteries)
- Related flight heritage
- TSX-5, STPSat-1, STPSat-2
About
Tiger Innovations offers a complete integrated electronics package that is only 5 cm high (0.5U), consisting of a C&DH board, an EPS board, an RF communications board, and an Interface I/O board, tested and ready to integrate payload modules. The avionics module supports multiple interface protocols and can be integrated with external ADCS modules, payloads, custom mechanisms, and deployment devices. In addition to functioning as a CubeSat bus, the system can provide C&DH, EPS, and TT&C subsystems for larger nanosat-class spacecraft. The design is P-POD compatible, and Tiger Innovations has planned environmental testing to qualify the CubeSat electronics package per GSFC-STD-7000. The CubeSat EPS leverages Tiger Innovations’ spacecraft hardware experience from TSX-5, STPSat-1, and STPSat-2, providing four individual, autonomously-tunable peak power trackers supporting both body-mounted and deployable solar arrays, with flight-proven Li-Ion batteries.
