Solar Array Simulator (SAS)
Tiger Innovations, Inc.
Rack-mount EGSE that simulates spacecraft solar arrays with individually controllable IV curves for satellite integration and test.
Typed specifications14 values
Discloses 3 of 12 fields engineers filter by in this category (category median 3).
- Mass
- 19 504.46 g Base 4U, approx. · datasheet p.1 24 040.38 g Base 6U, approx.
- Envelope (L×W×H)
- 4U or 6U, 19" rack mounted, 20" deep datasheet p.1 4U, 19” rack mounted Base 4U Configuration
- Form factor (as printed)
- 4U, 19” rack mounted datasheet p.1 6U, 19” rack mounted
- Supply voltage
- 5–60 V DC input from external supply; 0-20A (4U), 0-60A (6U) · datasheet p.1
- Data interface
- Ethernet datasheet p.1 Ethernet UDP/IP, continuous stream
- Operating temperature
- -120–120 °C PRTD simulator per channel · datasheet p.1
- Array configuration
- solar array simulator (EGSE) datasheet p.1
- Open-circuit voltage at the panel output (Voc)
- 55 V max · adjustable per channel output open circuit voltage (simulator) · datasheet p.1
- Short-circuit current (Isc)
- 3 A max · Base 4U, current range per channel · datasheet p.1 8 A max · Base 6U, current range per channel (max current configurable …
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier18 lines, in the manufacturer's own wording
- Number of channels (4U base)
- 8 - 16
- Number of channels (6U base)
- 8 - 24
- DC input power (4U)
- 0 - 20 A @ 5 - 60 V from external supply
- DC input power (6U)
- 0 - 60 A @ 5 - 60 V from external supply
- Current range (4U)
- 0 - 3 A per channel
- Current range (6U)
- 0 - 8 A per channel
- Open circuit voltage
- 0 V - 55 V, adjustable per channel
- Short circuit current
- 0 - 8 A, adjustable per channel
- Per channel control
- Max Power Voltage, Max Power Current, Open Circuit Voltage, Short Circuit Current
- Format (4U)
- 4U, 19" rack mounted, 20" deep
- Format (6U)
- 6U, 19" rack mounted, 20" deep
- Mass (4U)
- Approx. 43 lbs
- Mass (6U)
- Approx. 53 lbs
- I/o format
- Ethernet
- I/o protocols
- UDP/IP
- Data formats
- Continuous stream
- Prtd simulator range
- -120 C to +120 C per channel
- Configurable max current
- 3, 6, or 8 A per channel
About

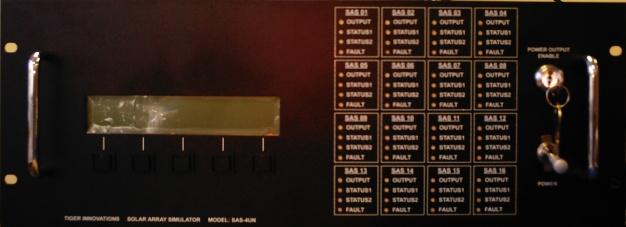

The Tiger Innovations Solar Array Simulator (SAS) provides up to 24 individual solar array simulators housed in a single 4U or 6U, 19-inch rack-mount chassis. All SAS channels have an individually controllable IV curve, adjustable for max-power current/voltage, short-circuit current, and open-circuit voltage. The SAS requires one or more external power supplies for operation; supply size and number can be adjusted to meet aggregate power requirements, and can be integrated in parallel with all channels or wired directly to individual channels. The SAS provides telemetry and control for each channel, including separate output enable switches. Each channel can be individually configured with a parameterized IV curve, and orbit simulations are generated using a scripting language to periodically update these values via software command. Software control is typically implemented using Tiger Innovations’ StreamLINK ground control package or through a defined Ethernet interface.
