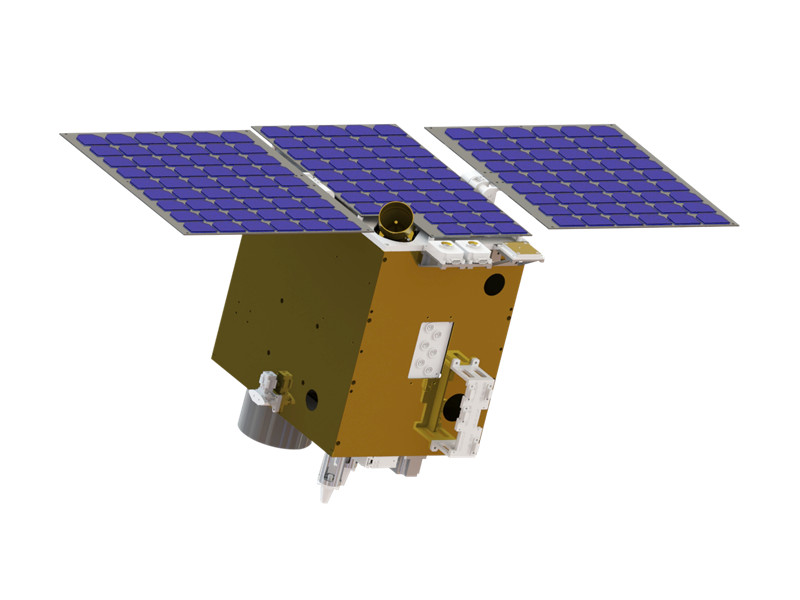

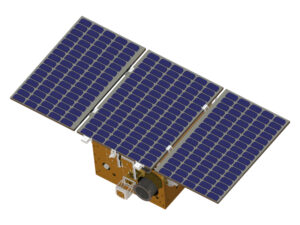

High-resolution agricultural and forestry monitoring satellite series
Zhongke Xingchen
A series of high-resolution satellites designed for agricultural and forestry monitoring, equipped with both hyperspectral and panchromatic cameras for detailed Earth observation.
Key figurescomparable across the catalogue
- Mass
- 130 kg
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Satellite
- High-resolution agricultural and forestry monitoring satellite series
- Imaging mode
- Pushbroom imaging
- Load index
- Hyperspectral camera
- Spectral range
- 450 nm~900 nm
- Spatial resolution
- 10m@500 km
- Number of spectral segments
- 70
- Spectral resolution
- 6.5 nm
- Width
- 14 km@500 km
- Quantization bits
- 12bit
- Panchromatic camera spectral range
- 450 nm~850 nm
- Spatial resolution (2)
- ≤2m@500 km
- Width (2)
- ≥14m@500 km
- Quantization bits (2)
- 12bit
- Total star weight
- 130 kg
About
The High-resolution agricultural and forestry monitoring satellite series is specifically designed for applications such as crop growth monitoring, resource management, and pest and disease detection. Each satellite is equipped with a 10-meter hyperspectral camera that operates within the 450nm to 900nm spectral range, featuring 70 spectral segments and a spectral resolution of 6.5nm. This hyperspectral payload is designed to avoid atmospheric absorption peaks, allowing for accurate capture of vegetation characteristics. Additionally, the satellites carry a 2-meter panchromatic camera, covering a spectral range of 450nm to 850nm. After fusion processing of the data from both cameras, the system can output high-quality 2-meter resolution data. Both cameras utilize 12-bit quantization for data capture. The hyperspectral camera has a width of 14km at 500km altitude, while the panchromatic camera has a width of at least 14m at 500km. The total weight of each satellite in the series is 130kg.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
