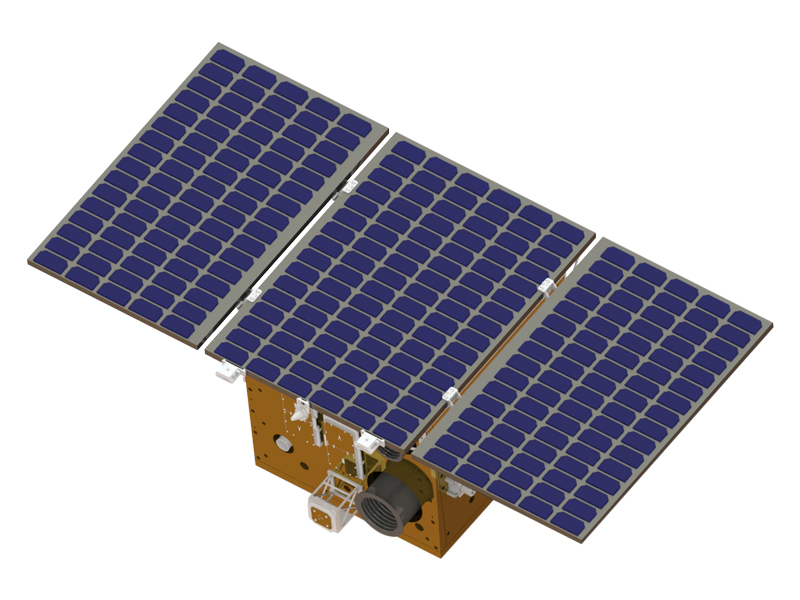

Methane Integrated Satellite Series
Zhongke Xingchen
The Methane Integrated Satellite Series are advanced satellites equipped with a high-resolution methane camera and other instruments for comprehensive environmental monitoring and carbon assessment.
Key figurescomparable across the catalogue
- Mass
- 75 kg
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Representative satellite
- Xi Guang 1-04 Star (Xi Guang 1)
- Imaging mode
- Pushbroom imaging
- Load index
- methane camera
- Spectral range
- 1630 nm~1675 nm
- Spectral resolution
- 0.1 nm
- Width
- 12 km@500 km
- Spatial resolution
- 25m
- Number of spectral channels
- 450
- Chlorophyll camera spectral range
- 0.67μm~0.78μm
- Chlorophyll camera spectral resolution
- 0.485 nm
- Chlorophyll camera spatial resolution
- 0.88 km
- Chlorophyll camera width
- 225 km@500 km
- Chlorophyll camera number of spectral channels
- 227
- Multispectral camera spectral range
- 450 nm~850 nm
- Multispectral camera width
- 80 km@500 km
- Multispectral camera spatial resolution
- 10m
- Total star weight
- 75 kg
About
The Methane Integrated Satellite Series satellites are at the forefront of domestic technology, featuring a methane camera with a spectral resolution of 0.1 nanometers. These satellites are designed for a variety of applications, including methane leak monitoring, emission assessment, drift trend analysis, and carbon neutrality capacity assessment. They are widely utilized in fields such as ecological environment monitoring, industrial emissions tracking, gas leak detection, gas exploration, carbon sink assessment, and carbon trading. The series includes representative satellites like the Xi Guang 1-04 Star (Xi Guang 1). The imaging mode for the methane camera is pushbroom imaging. In addition to the methane camera, the satellites are equipped with a chlorophyll camera and a multispectral camera, providing a comprehensive suite of remote sensing capabilities.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
