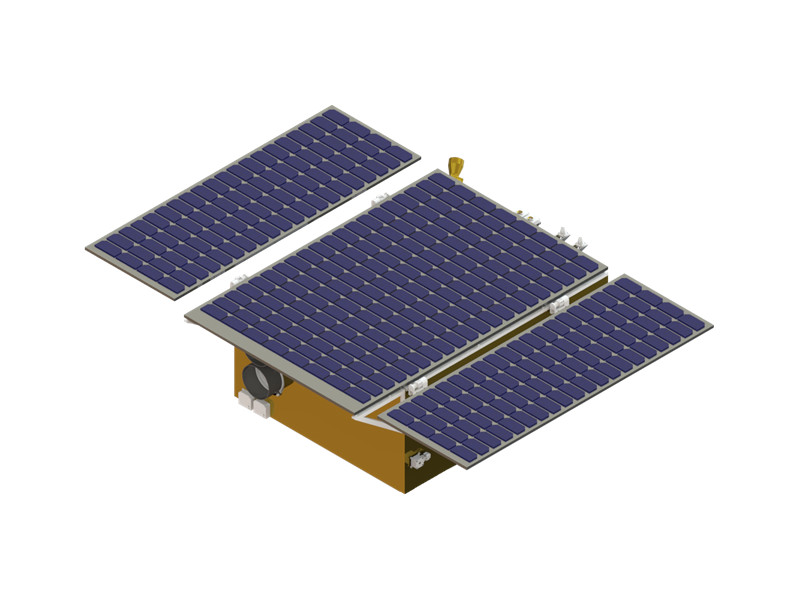

Mineral Monitoring Satellite Series
Zhongke Xingchen
The Mineral Monitoring Satellite Series are Earth observation satellites equipped with shortwave infrared and panchromatic cameras for mineral exploration and identification.
Key figurescomparable across the catalogue
- Mass
- 130 kg
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Satellite
- Mineral exploration satellite series
- Imaging mode
- Pushbroom imaging
- Load index
- shortwave infrared camera
- Spectral range (shortwave infrared camera)
- 2000 nm~2500 nm
- Spatial resolution (shortwave infrared camera)
- 20m/5m
- Spectral resolution (shortwave infrared camera)
- 15 nm
- Number of spectral segments (shortwave infrared camera)
- 34
- Width (shortwave infrared camera)
- 12 km@500 km
- Quantization bits (shortwave infrared camera)
- 12bit
- Panchromatic camera
- Spectral range
- Spectral range (Panchromatic camera)
- 450 nm~850 nm
- Spatial resolution (Panchromatic camera)
- ≤5m@500 km
- Width (Panchromatic camera)
- ≥18 km@500 km
- Quantization bits (Panchromatic camera)
- 12bit
- Total star weight
- 130 kg
About
The Mineral Monitoring Satellite Series are designed for mineral exploration and identification. These satellites are equipped with advanced imaging capabilities, including a 20-meter shortwave infrared camera and a 5-meter panchromatic camera. The shortwave infrared camera covers the absorption peaks of key minerals, operating within a spectral range of 2000nm to 2500nm, with a spectral resolution of 15nm across 34 spectral segments. It boasts a spatial resolution of 20m/5m and a width of 12km at 500km altitude, with 12-bit quantization. This allows for effective identification of altered minerals like chlorite and sericite by avoiding atmospheric interference and providing accurate mineral information. The panchromatic camera has a spectral range of 450nm to 850nm, a spatial resolution of ≤5m at 500km, and a width of ≥18km at 500km, also with 12-bit quantization. The total weight of the satellite is 130kg.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
