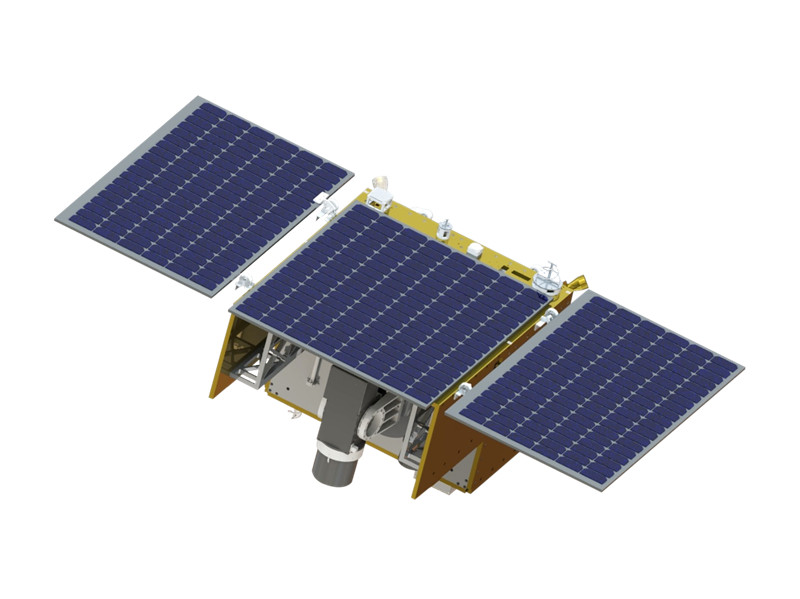

Wide-field methane series satellites
Zhongke Xingchen
The Wide-field methane series satellites are designed for comprehensive methane monitoring and carbon neutrality assessment, featuring a wide-swath methane camera and a multispectral camera.
Key figurescomparable across the catalogue
- Mass
- 150 kg
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Satellite
- Wide-field methane series satellites
- Imaging mode
- Pushbroom imaging
- Load index
- methane camera
- Single-track continuous imaging time (methane camera)
- ≥300s
- Spectral range (methane camera)
- 1610 nm~1685 nm
- Spectral resolution (methane camera)
- 0.1 nm
- Width (methane camera)
- 200 km@500 km
- Spatial resolution (methane camera)
- 100m
- Multispectral camera
- Single-track continuous imaging time
- Single-track continuous imaging time (multispectral camera)
- ≥300s
- Spectral range (multispectral camera)
- 450 nm~850 nm
- Width (multispectral camera)
- 200 km@500 km
- Spatial resolution (multispectral camera)
- 25m
- Total star weight
- 150 kg
About
The Wide-field methane series satellites are designed to provide early warning of carbon sources, carbon sinks, and carbon emission concentrations by covering key areas with a wide-swath methane camera. This system aims to establish a comprehensive methane monitoring and carbon neutrality assessment system. The methane camera boasts a swath width exceeding 200km, which significantly improves monitoring efficiency and accuracy. The satellite also includes a multispectral camera for additional data collection. The imaging mode for both instruments is pushbroom imaging. The methane camera operates in the spectral range of 1610nm to 1685nm with a spectral resolution of 0.1nm, a width of 200km at 500km altitude, and a spatial resolution of 100m. The multispectral camera covers a spectral range of 450nm to 850nm, also with a width of 200km at 500km altitude, and a higher spatial resolution of 25m. Both cameras are capable of single-track continuous imaging for at least 300 seconds. The total star weight (mass) of the satellite is 150kg.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
