About Anywaves

Anywaves is a global leader in Space RF and Payload Subsystem Technologies, founded in April 2017 in Toulouse, France. The company designs, manufactures, and qualifies high-performance space antennas, RF front-ends, software-defined radio (SDR) platforms, and integrated payload electronics for satellite missions across LEO, MEO, GEO, and interplanetary orbits. Products support telecommunications, Earth observation, navigation, scientific exploration, and defense programs, with flight heritage on over 200 missions worldwide.

In 2025, Anywaves merged with Luxembourg-based EmTroniX to form a unified Space RF and Payload Subsystems group, combining Anywaves' flight-proven antenna product lines with EmTroniX's embedded RF electronics and signal-processing expertise. The combined company operates across entities in France, Luxembourg, and the United States, employing more than 110 people, enabling end-to-end RF subsystems from antenna to signal chain.

Anywaves maintains full in-house control of the value chain — from initial design and qualification through series production — at production facilities in Toulouse. The company is EN 9100 certified and has been selected for programs at ESA (Hera mission), Thales Alenia Space, Rocket Lab, and major constellation operators.

Milestones

2017 Founded as a CNES spin-off in Toulouse
2019 First flight-proven antenna delivered on a commercial CubeSat mission
2021 Launched VILSA software-defined radio product line
2023 Surpassed 50 satellites equipped with Anywaves hardware

Company Info

Headquarters Toulouse, France, France

Founded 2017 (9 years)

Specializations

manufacturer components antennas

Website anywaves.com ↗

LinkedIn linkedin.com/company/anywaves-activities ↗

Email contact@anywaves.com

Products

TRL 7 · Demonstrated

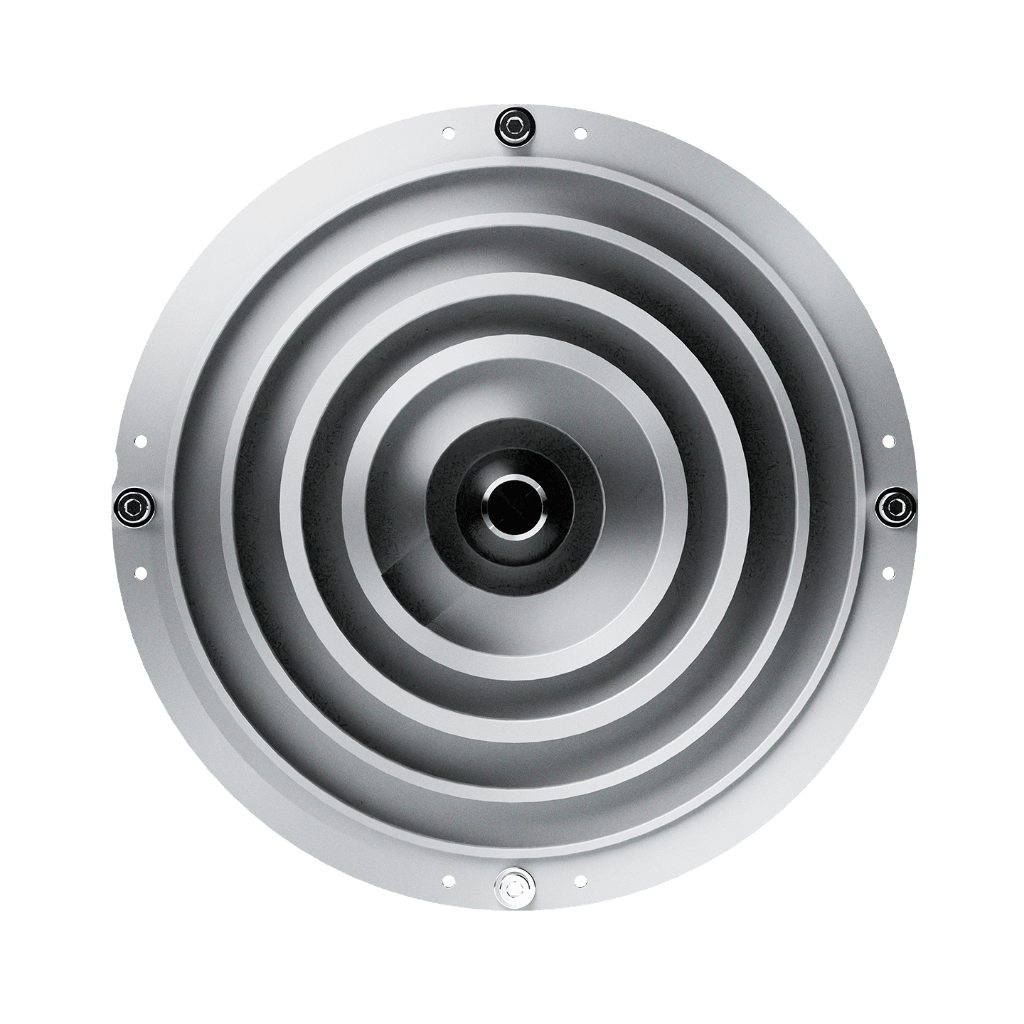

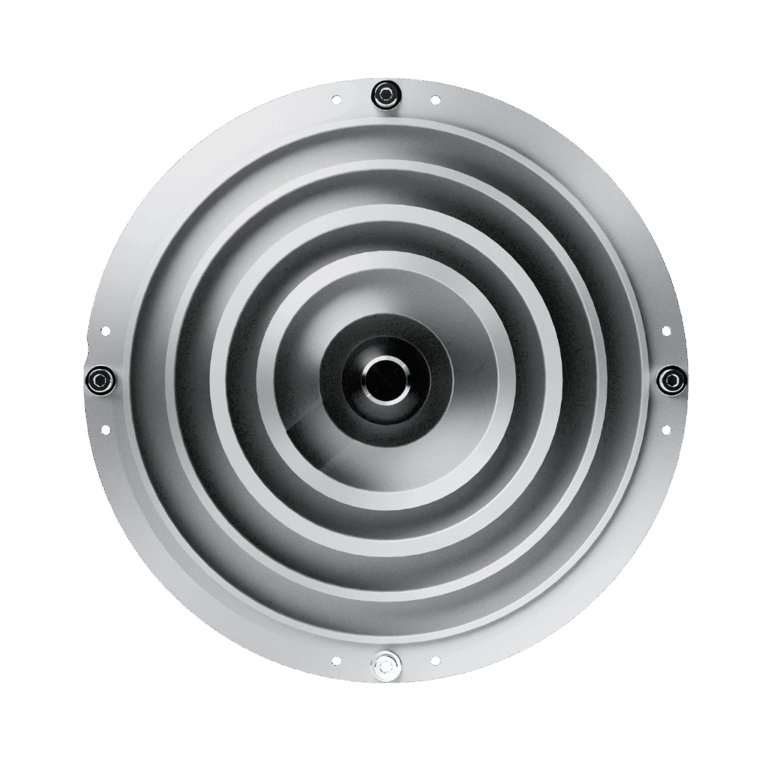

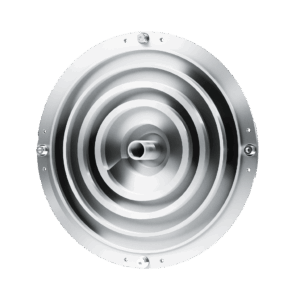

The Anywaves Ka-Band TT&C Antenna is a compact, reliable solution for telemetry, tracking and command operations in the Ka-band, available in Rx, Tx, and Rx/Tx models.

2 5

TRL	7
Frequency band	Rx: 29.5–30 GHz \| Tx: 19.7–20.2 GHz
Polarization	Option 1 & 2: Left or Right Hand Circular Polarization (LHCP or RHCP) Option 3: LHCP in Rx and RHCP in Tx channels (or vice versa)
Envelope size	Option 1 : (Rx) 108 × 108 × 44 mm Option 2 : (Tx) 150 × 150 × 60 mm Option 3 : (Rx/Tx) 90 × 90 × 40 mm
Realized gain	Option 1: Rx: > 5 dBi @ boresight \| > 0 dBi @ ±80° Option 2: Tx: > 3 dBi @ boresight \| > 0 dBi @ ±80° Option 3: Rx/Tx: – Tx band: > 4 dBi @ boresight \| > 0 dBi @ ±67° – Rx band: > 8 dBi @ boresight \|

TRL 8 · Qualified

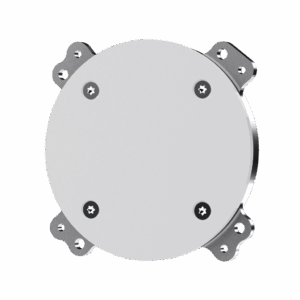

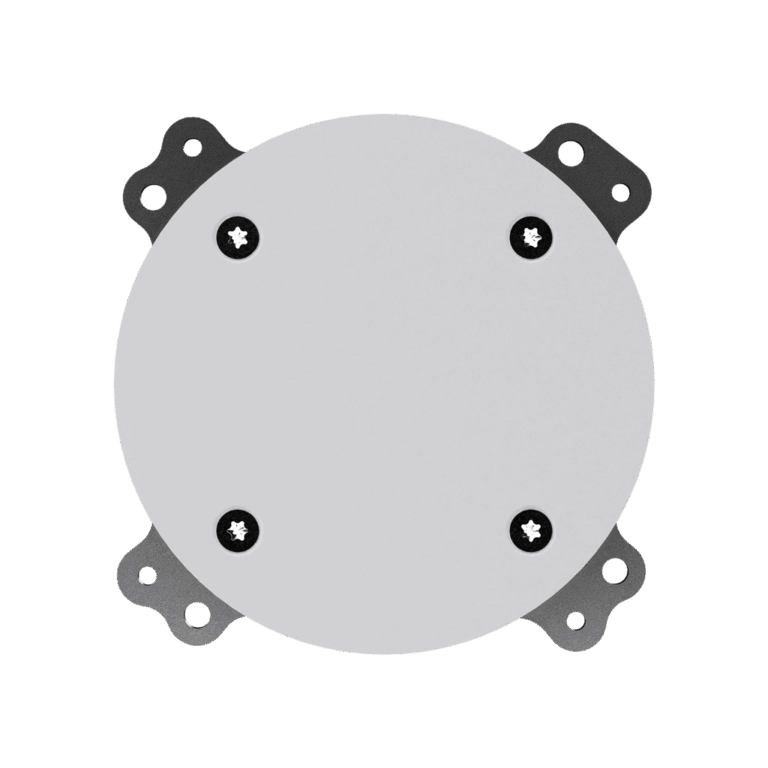

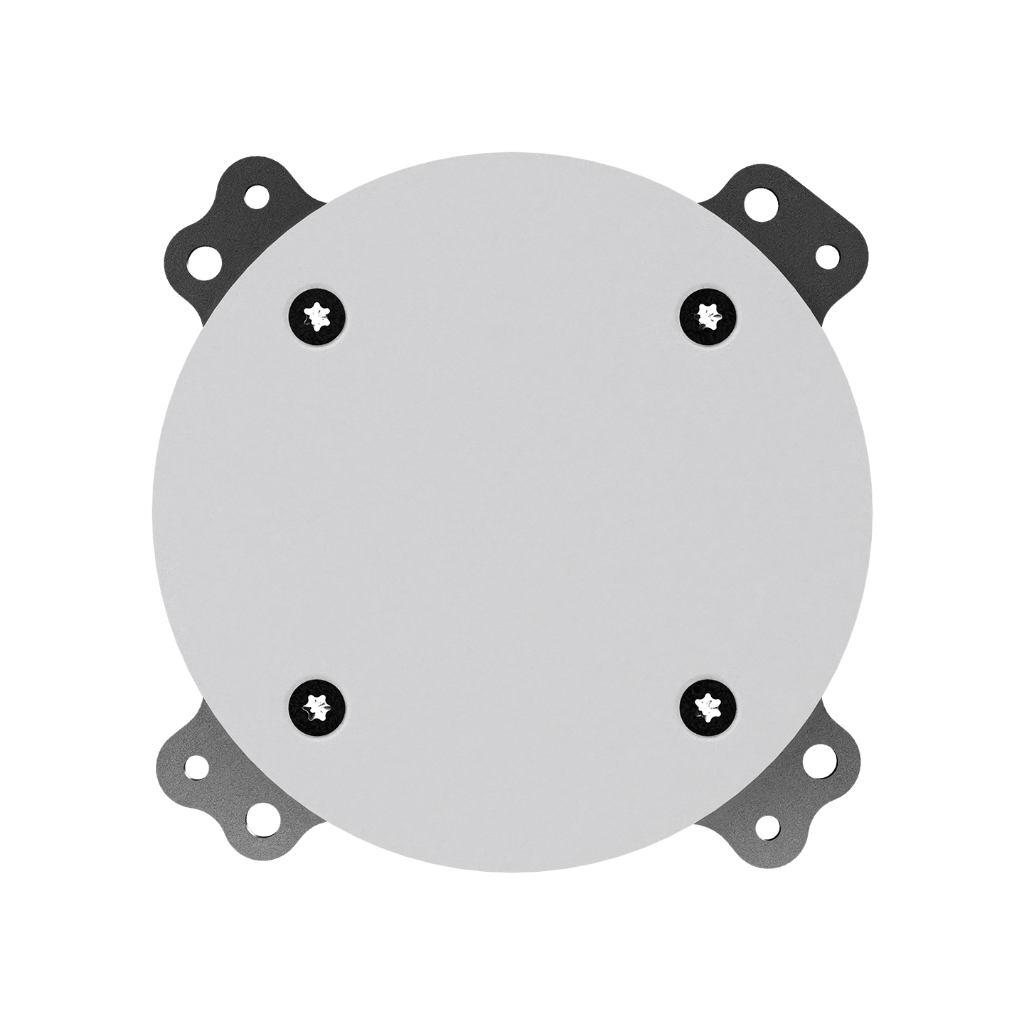

The Anywaves Compact S-Band TT&C Antenna is an ultra-compact, TRL 8 antenna for satellite telemetry, tracking and command in the S-Band frequency range of 1.98 to 2.29 GHz, featuring simultaneous dual-circular polarization.

2 6

Frequency band	1.98 GHz to 2.29 GHz
Polarization	Left and/or Right Hand Circular Polarization (single or dual simultaneously)
Envelope size	L 70.9 × W 70.9 × H 30.33 mm (connectors included)
Realized gain	> 5.4 dBi @ boresight \| > 4.2 dBi @ ±30° \| > 0.5 dBi @ ±60°
TRL	8
Mass with connector	< 106 g

TRL 9 · Flight-proven

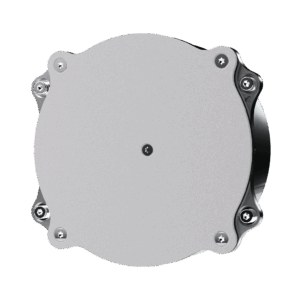

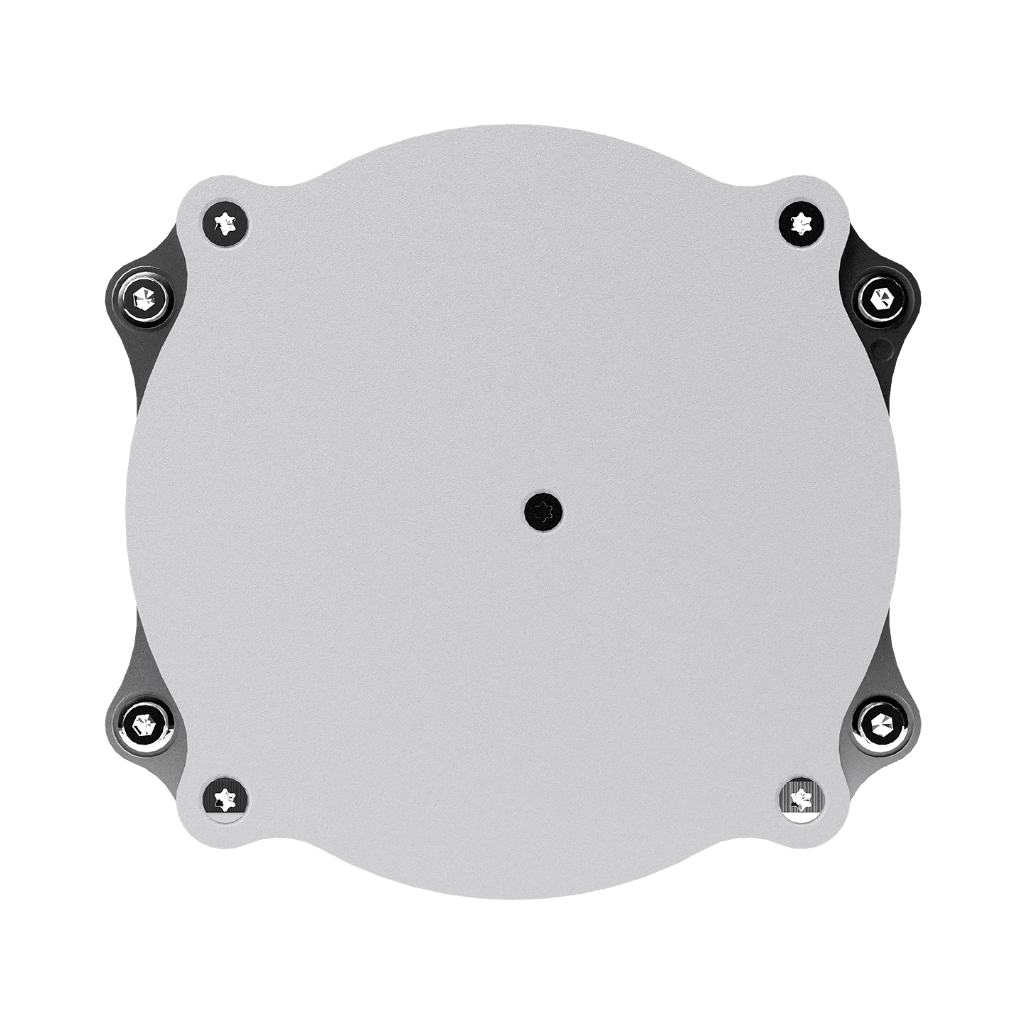

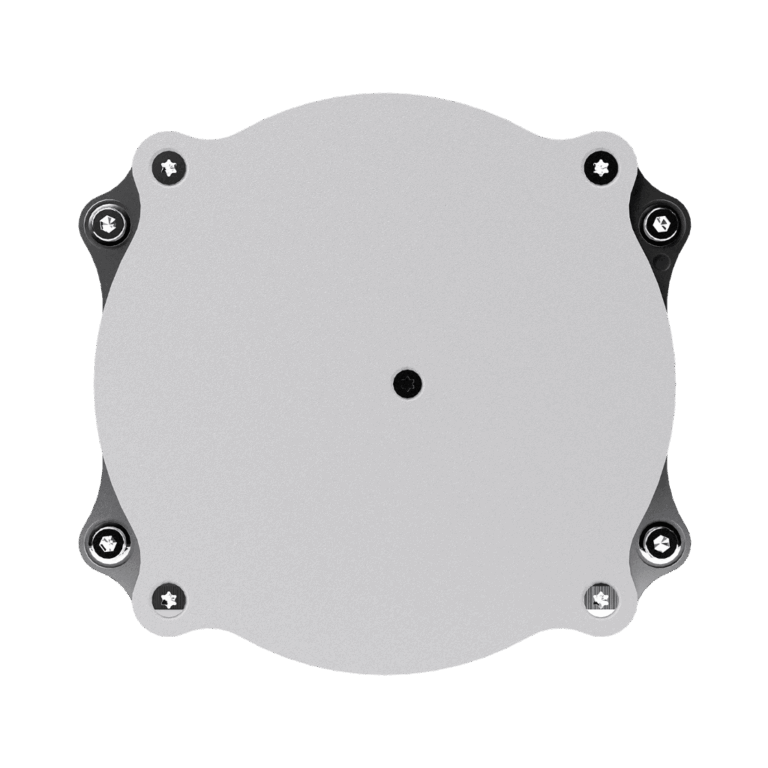

Anywaves' Compact Wideband Antennas are custom-designed payload antennas for spectrum monitoring, Space Situational Awareness (SSA), GNSS augmentation, and spectrum surveillance applications from LEO satellites.

2 5

Frequency band	UHF to S-band (custom — defined per project, from ~300 MHz to ~3 GHz)
Polarization	Single-circular polarization (LHCP or RHCP, custom)
Fractional bandwidth	Up to 100%
Size	<1U footprint
TRL	9

TRL 7 · Demonstrated

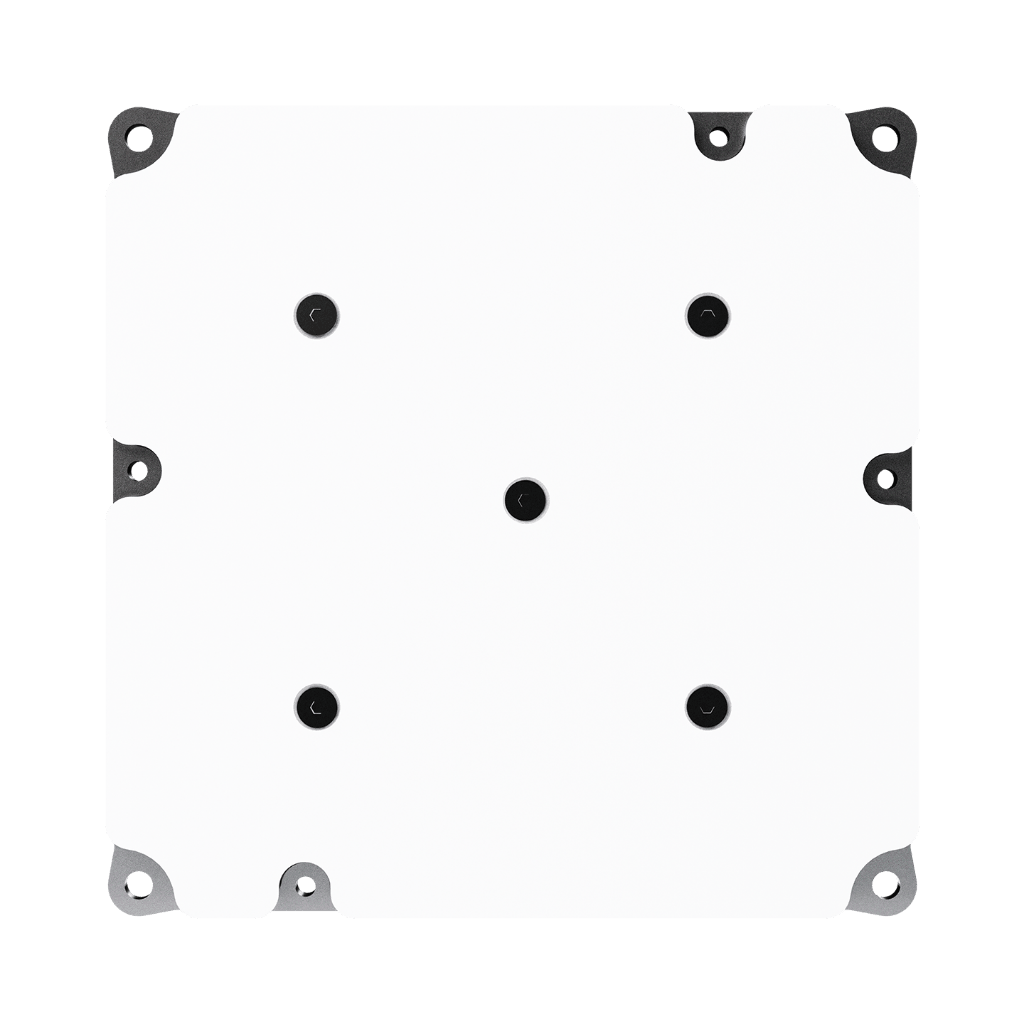

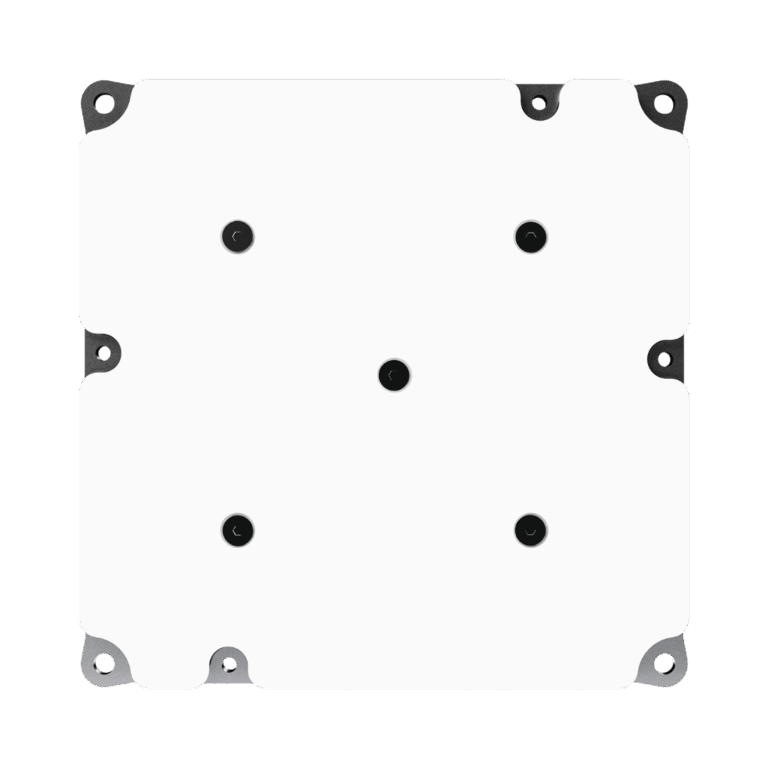

The Anywaves Compact X-Band Dual-Polarized Antenna is a TRL 7 data downlink antenna for LEO satellites, providing simultaneous LHCP and RHCP on two dedicated SMA connectors from a single 100 × 100 mm footprint.

2 6

Frequency band	8.025 GHz to 8.4 GHz
Polarization	Simultaneous Left and Right Hand Circular Polarization (LHCP + RHCP)
Envelope size without connector	L 100 × W 100 × H 26.8 mm (external protruding height: 9.31 mm)
Realized gain	> 15.5 dBi @ boresight @ 8.2 GHz
TRL	7
Mass with connector	153.5 g ± 8 g

TRL 9 · Flight-proven

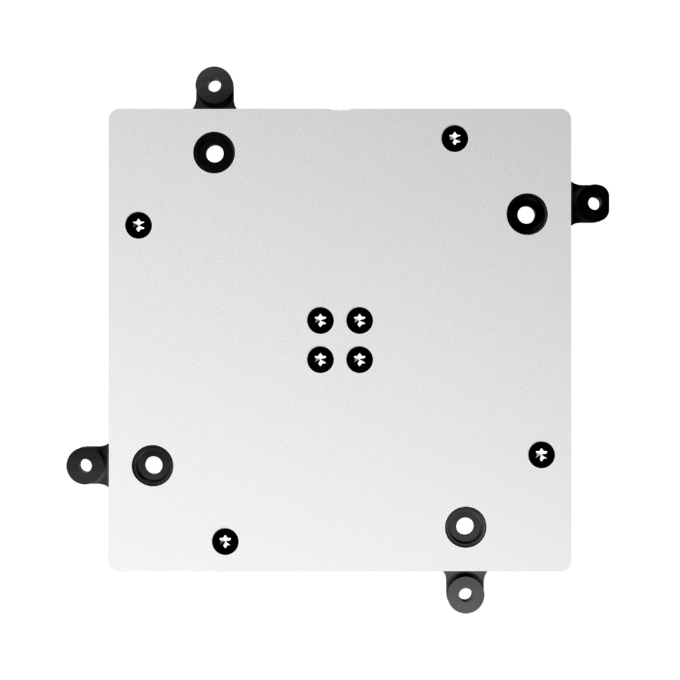

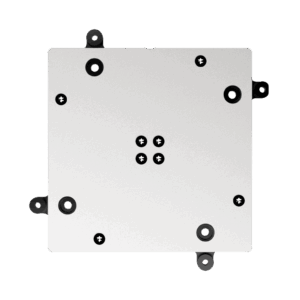

The Anywaves Compact X-Band Antenna is a TRL 9, flight-proven antenna for payload telemetry downlink from LEO satellites to ground stations, offering high data rates in an ultra-compact footprint.

2 6

Frequency band	7.9 GHz to 8.5 GHz
Polarization	Left or Right Hand Circular Polarization
Envelope size without connector	L 100 × W 100 × H 16.2 mm (protruding height: 6.5 mm)
Realized gain	15.5 dBi @ 8.2 GHz
TRL	9
Mass with connector	67.5 g (±4 g)

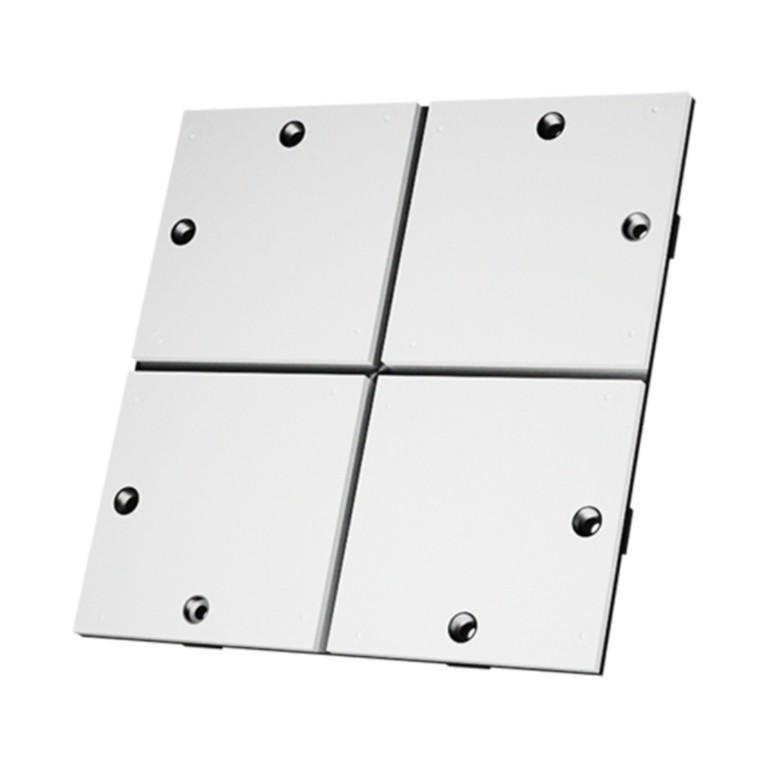

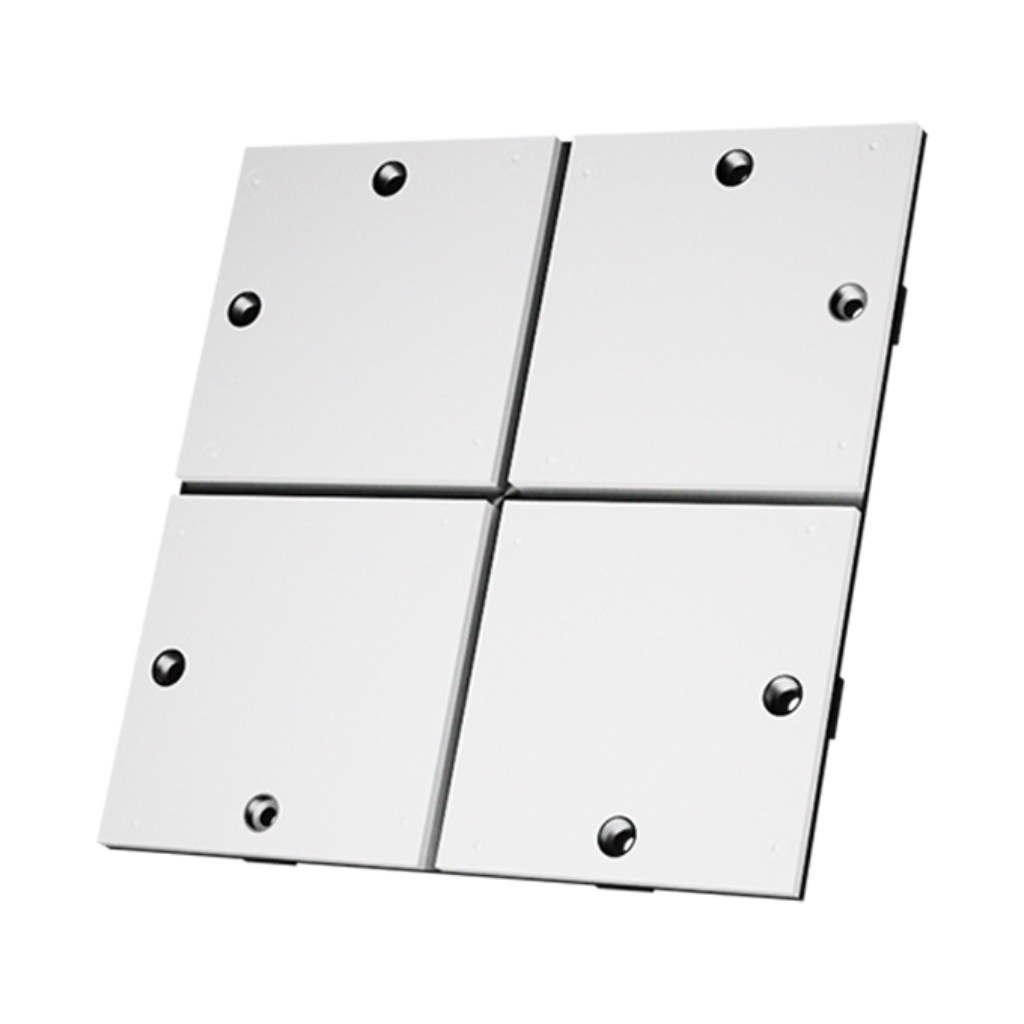

The Anywaves Direct Radiating Array Antenna is a custom-designed, high-gain flat antenna solution for satellite payload applications in Ku and Ka band, where high power handling and a low profile are the primary constraints.

1 6

Frequency band	Ku band to Ka band (custom — defined per project)
Polarization	Left or Right Hand Circular Polarization (custom)
Realized gain	> 30 dBi (design target — scalable per mission)
Fractional bandwidth	~10%
Profile thickness	< 15 mm (without connector)
Sidelobe levels	~15 dB

TRL 9 · Flight-proven

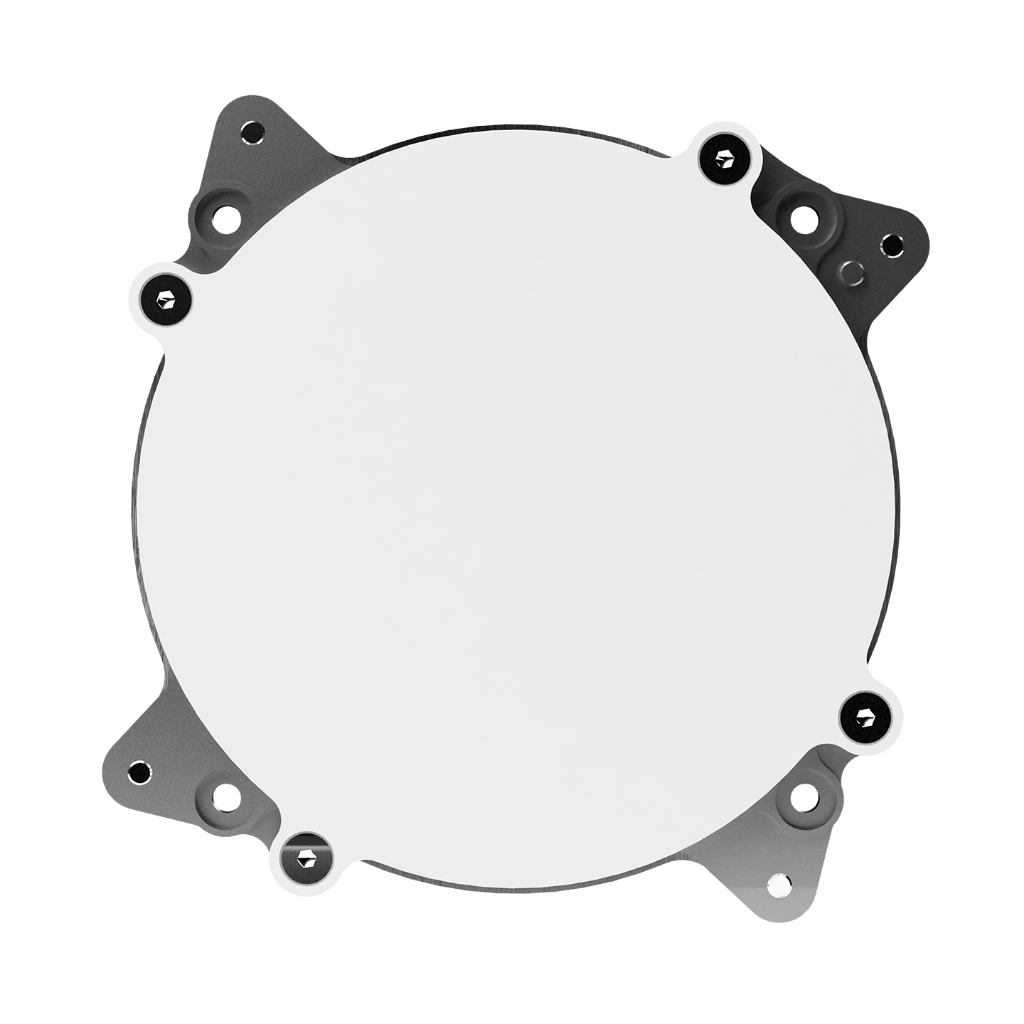

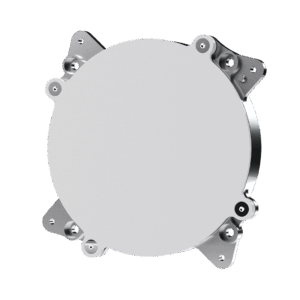

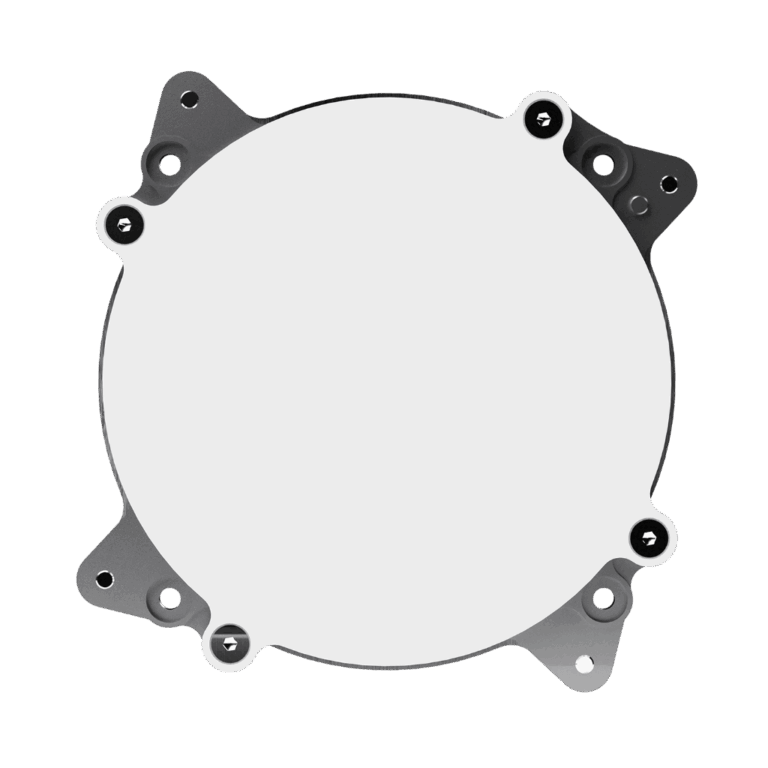

The Anywaves GNSS All-Bands Antenna is a TRL 9 navigation antenna for LEO satellites, covering the full 1160 MHz to 1610 MHz frequency range to receive all GNSS constellations simultaneously.

2 6

Frequency band	1160 MHz to 1610 MHz GPS L1/L2/L5, Galileo E1/E5a/E5b/E6, GLONASS G1/G2/G3, BeiDou B1/B2a/B2/B3, IRNSS L5, QZSS L6
Polarization	Right Hand Circular Polarization (RHCP)
Envelope size without connector	99.4 × 99.4 × 16.2 mm (external protruding height: 8.6 mm)
Realized gain	> 0 dBi @ boresight
TRL	9
Mass with connector	125.7 g ± 6 g

TRL 7 · Demonstrated

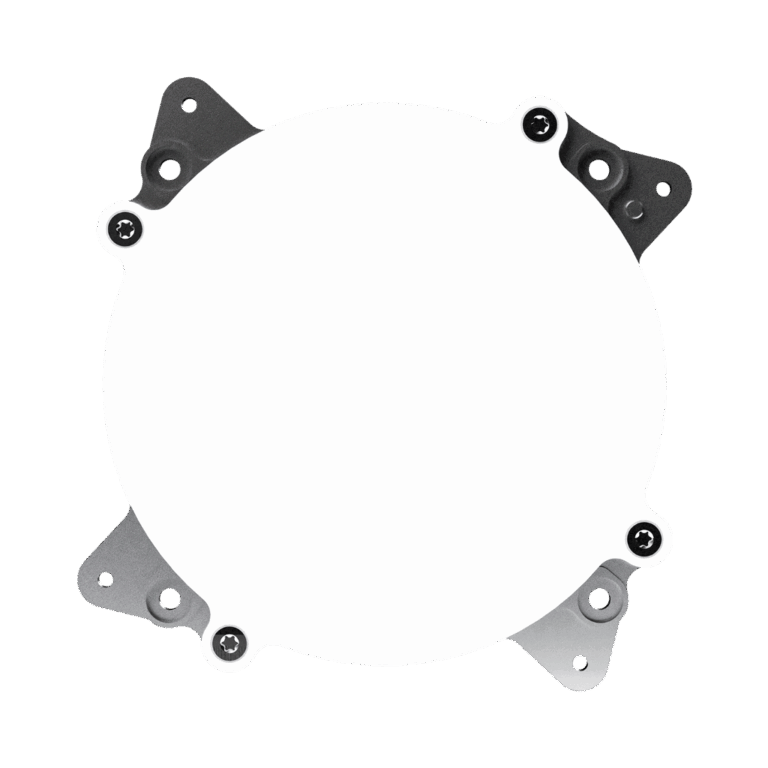

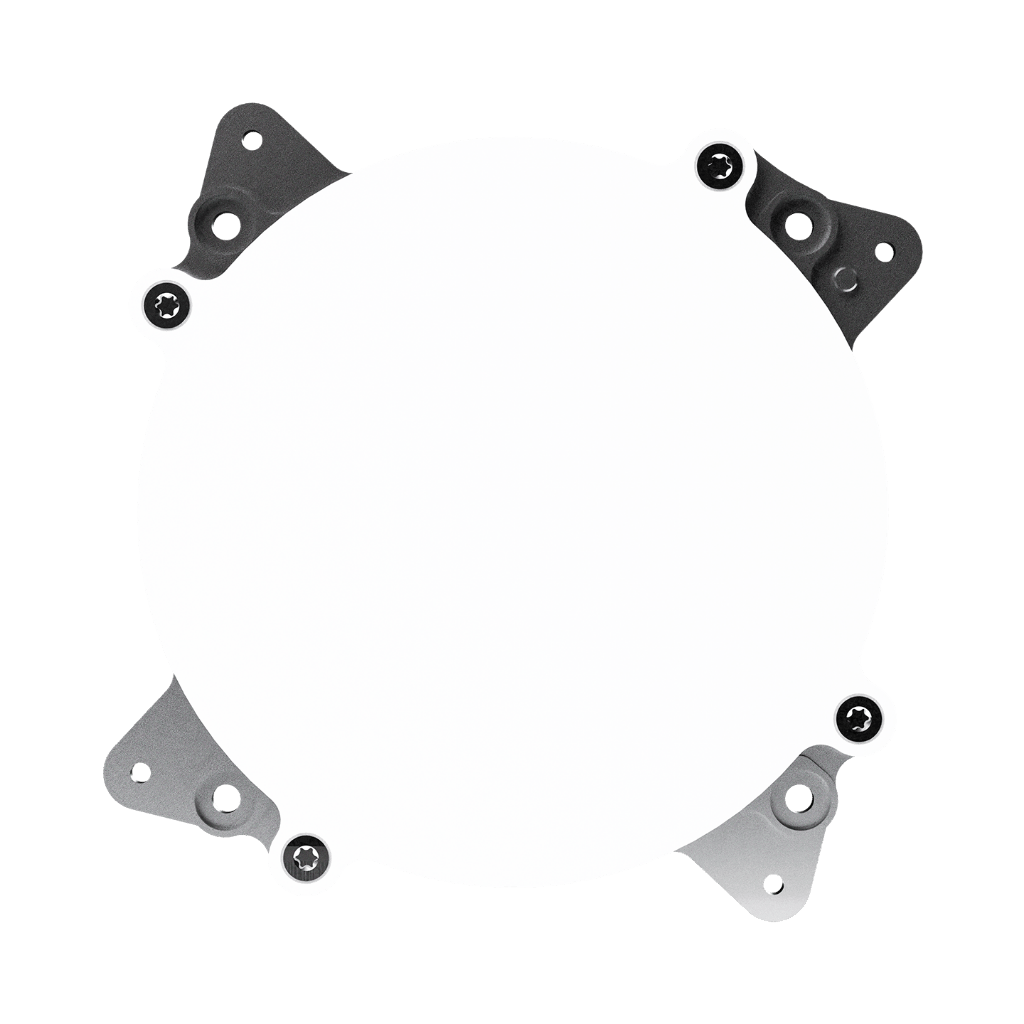

The Anywaves GNSS All-Bands Antenna with LNA Integrated Board is a TRL 7 active navigation antenna for LEO satellites, combining full multi-constellation GNSS coverage with an integrated low-noise amplifier and S-Band rejection filter.

2 12

Frequency band	1160 MHz to 1610 MHz — GPS L1/L2/L5, Galileo E1/E5a/E5b/E6, GLONASS G1/G2/G3, BeiDou B1/B2a/B2/B3
Polarization	Right Hand Circular Polarization (RHCP)
Envelope size (antenna + LNA block)	L 99 × W 99 × H 58 mm
LNA block gain	Typical 22 dB (lower bands) / 20.5 dB (upper bands)
Noise figure	Typical 1.8 dB
TRL	7
Mass (antenna + LNA block)	285 g ± 29 g
DC input	5.5–6.5 V
Power consumption	Typical 366 mW
Radiation-qualified	40 krad TID (DC/DC), 300 krad TID (GaAs RF)
Orbit lifetime	7-year orbit lifetime + 1 year on ground
Qualification temperature	−120°C to +120°C

TRL 8 · Qualified

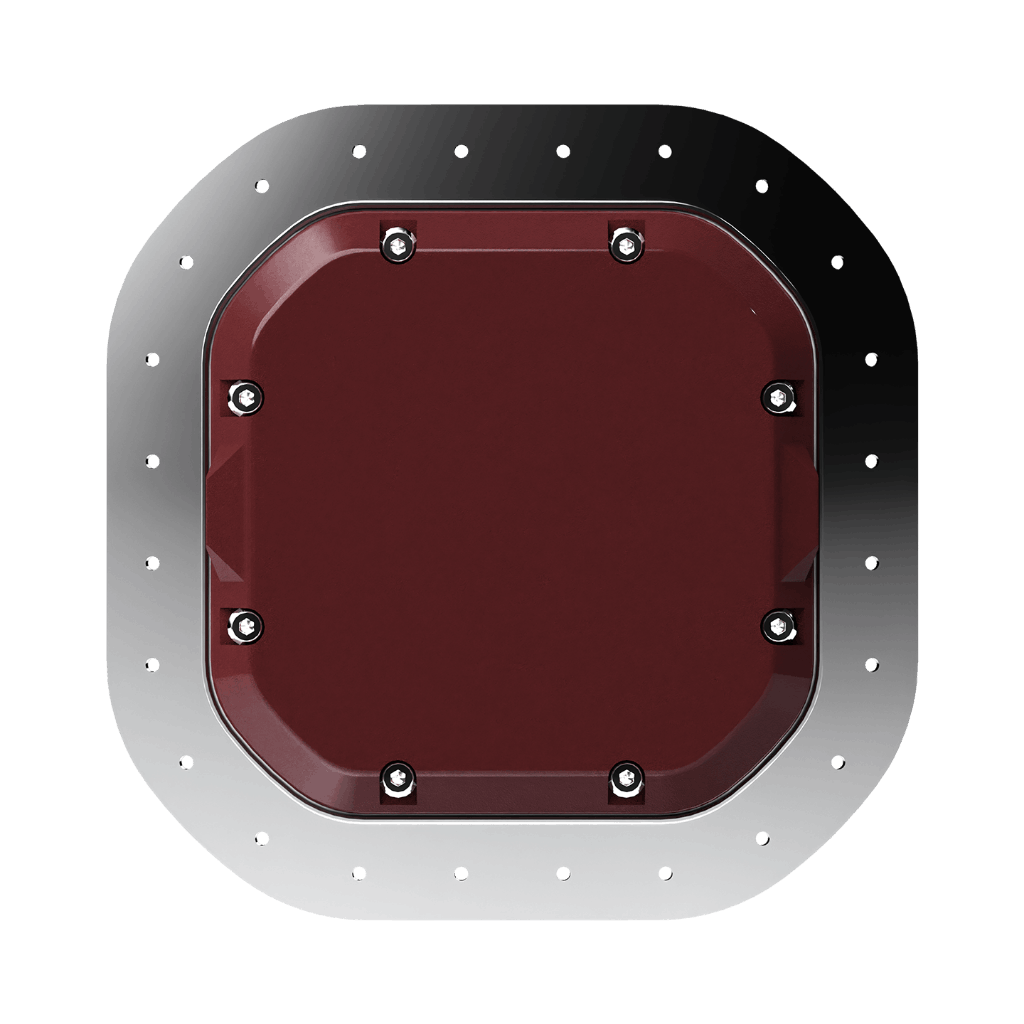

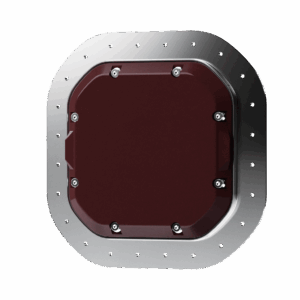

The Anywaves GNSS All-Bands Launcher Antenna is a TRL 8 navigation antenna specifically designed for launch vehicles, providing simultaneous multi-constellation GNSS reception from 1.16 to 1.61 GHz.

2 6

Frequency band	1.16 GHz to 1.61 GHz — GPS L1/L2/L5, Galileo E1/E5a/E5b/E6, GLONASS G1/G2/G3, BeiDou B1/B2a/B2/B3
Polarization	Right Hand Circular Polarization (RHCP)
Envelope size	150 × 150 × 30 mm
Realized gain	> 0 dBi @ boresight > −2 dBi @ ±30° > −6 dBi @ ±60°
TRL	8
Mass with connector	Antenna: 162 g ± 8 g Flat mechanical bracket: 106 g Thermal shield: 62 g

Miniaturized multi-constellation GNSS patch antenna for GPS, Galileo, GLONASS, and BeiDou reception on orbit.

1 5

Frequency	L1/E1 (1575.42 MHz)
Gain	≥3 dBic
Mass	<30 g
Operating temperature	-40 to +85 °C
Polarization	RHCP

TRL 8 · Qualified

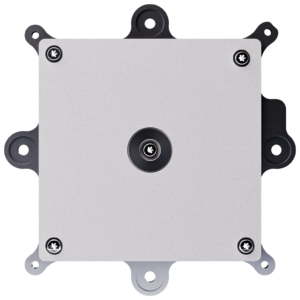

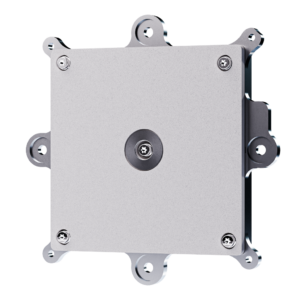

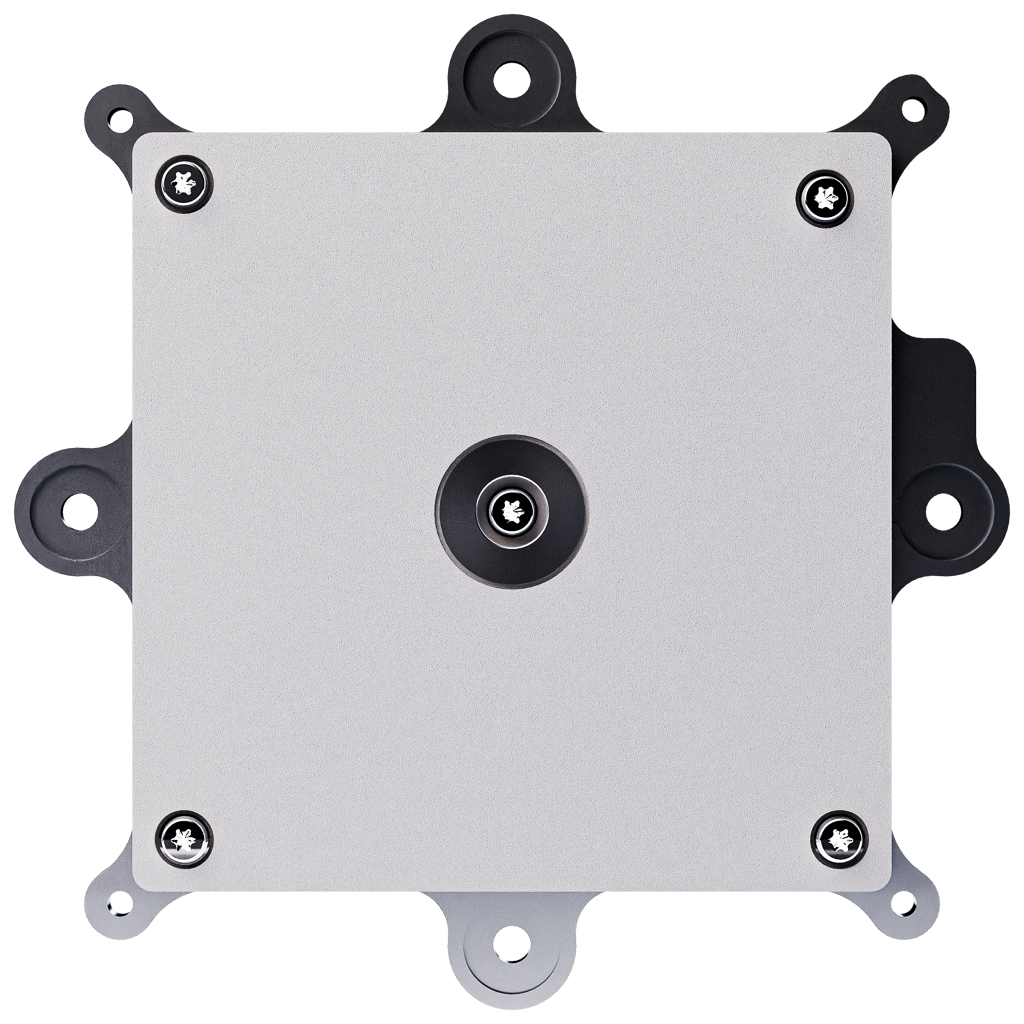

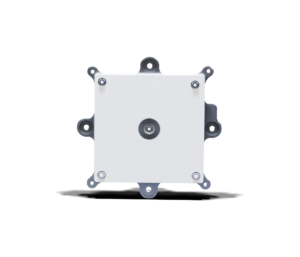

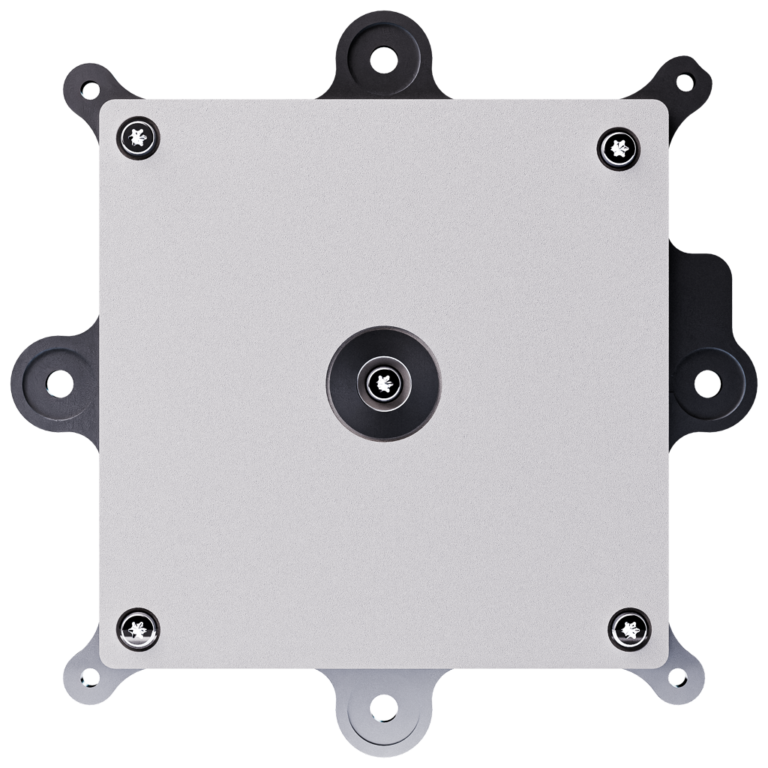

The Anywaves GNSS L1/E1 Bands Antenna is a TRL 8 navigation antenna for LEO satellites, designed for high-accuracy GPS L1 and Galileo E1 positioning with a compact footprint.

3 12

Model	ASA-052026
Frequency band	GPS L1 (1 563–1 587 MHz) \| Galileo E1 (1 575.42 MHz nominal)
Polarization	Right Hand Circular Polarization (RHCP)
Envelope size with connector	L 96.6 × W 96.6 × H 23.75 mm
Realized gain	> 6.5 dBi @ boresight \| > 4.5 @ ±30° \| > 0 dBi @ ±60°
TRL	8
Mass with connector	103 g ± 5 g
Phase center variation	<1 mm
Protruding height	< 8 mm
Qualification temperature	−120°C to +120°C
Reflection coefficient	better than −18 dB
Axial ratio	below 1 dB at boresight

TRL 5 · Development

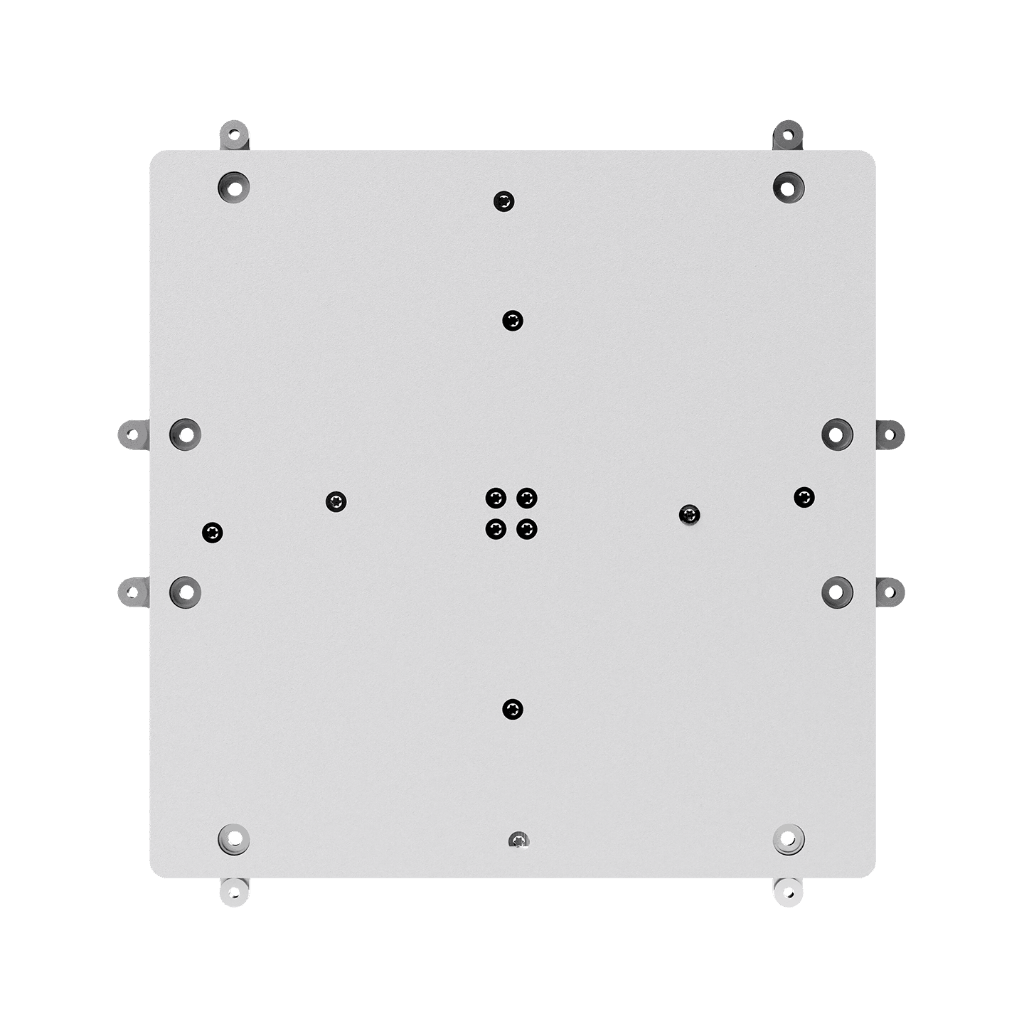

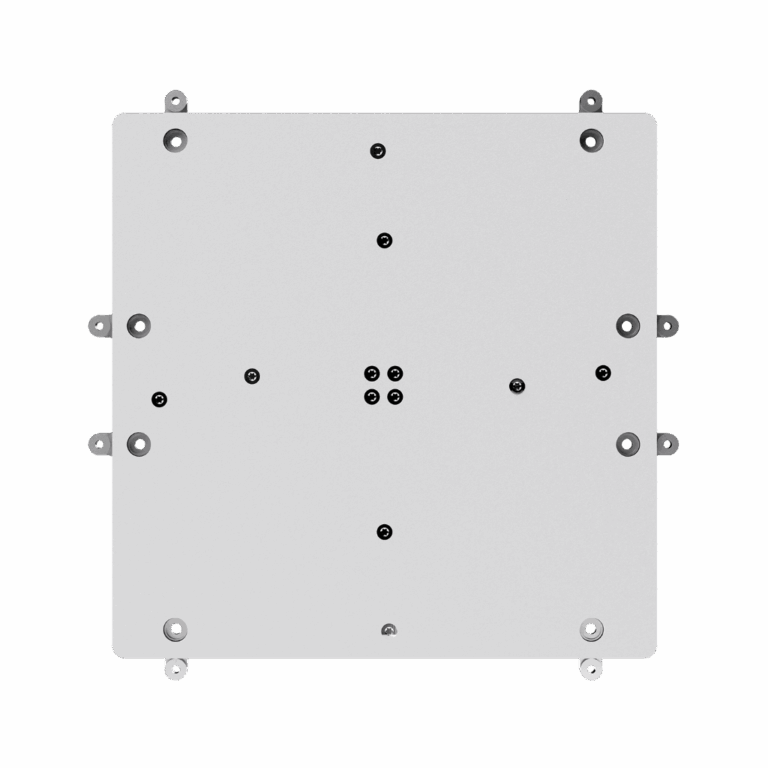

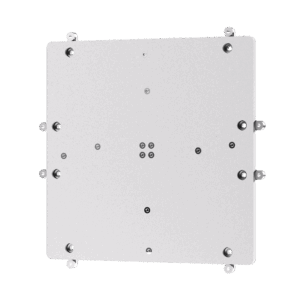

The Anywaves High Gain X-Band Antenna delivers more than 20 dBi of realized gain at 8.2 GHz, enabling maximum data throughput for Earth observation and remote sensing missions.

2 8

Realized Gain	> 20 dBi
Configuration options	LHCP, RHCP
Frequency band	7.9 GHz to 8.5 GHz
Polarization	Left or Right Hand Circular Polarization
Envelope size without connector	L 200 × W 200 × H 16 mm
Realized gain (2)	> 20 dBi @ boresight @ 8.2 GHz
TRL	5
Mass with connector	503 g ± 20%

High-gain Ka-Band antenna enabling Gbps-class data downlink from small Earth observation satellites.

1 4

Frequency band	Ka-Band (26.5–40 GHz)
Gain	>30 dBi
Eirp	>40 dBW
Mass	<500 g

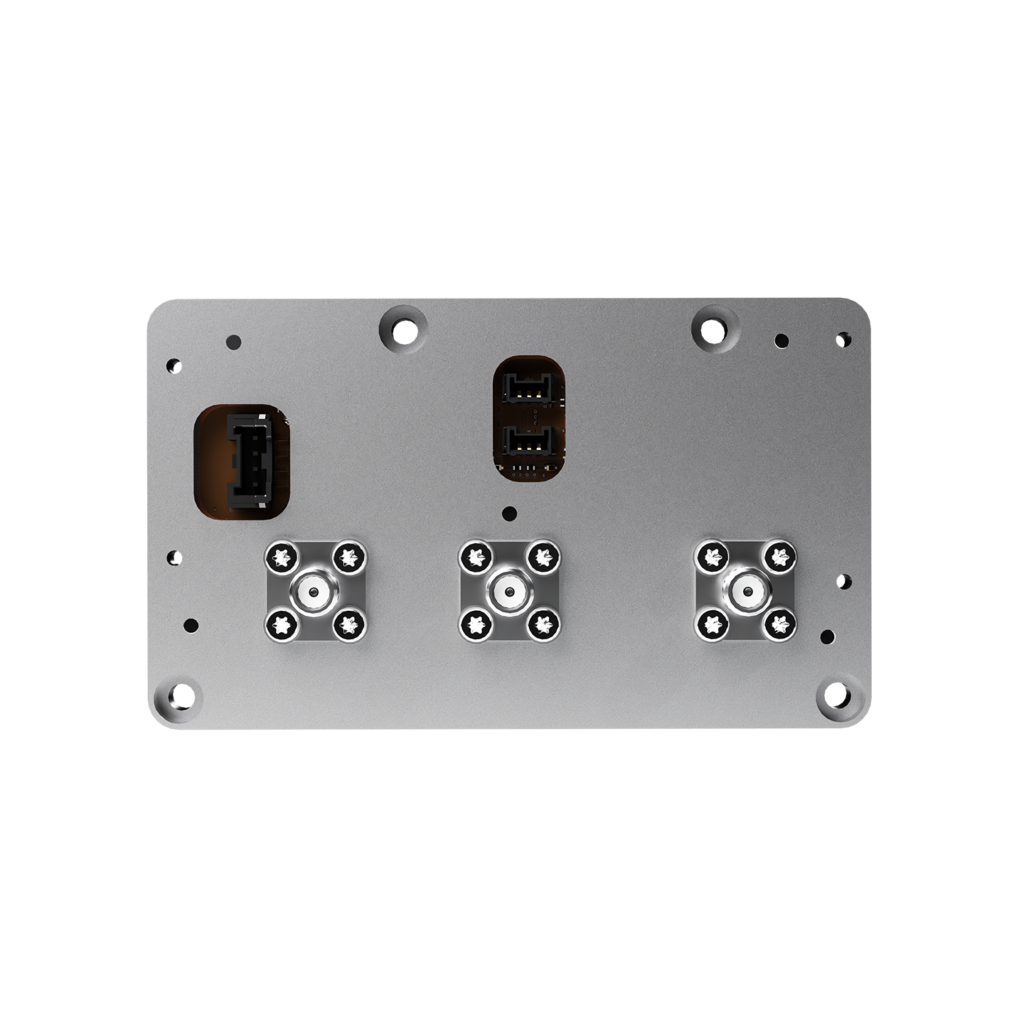

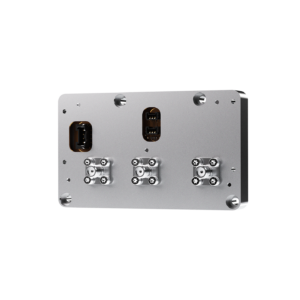

The Anywaves Low Noise Block Downconverter (LNB) is a compact, fully customisable RF front-end component for satellite and CubeSat communication systems, providing low-noise amplification and frequency down-conversion.

2 6

Frequency coverage	1 GHz to 12 GHz (three sub-bands: 1–2 / 2–6 / 6–12 GHz)
RF architecture	Dual input RF, Dual output IF & common LO (Local Oscillator)
IF (Intermediate Frequency) bandwidth	Up to 400 MHz
Noise figure	Optimised per band (down to 1.2 dB)
Power consumption	≤ 5 W (dual‑channel)
Qualification	Space‑grade, TRL 9

TRL 8 · Qualified

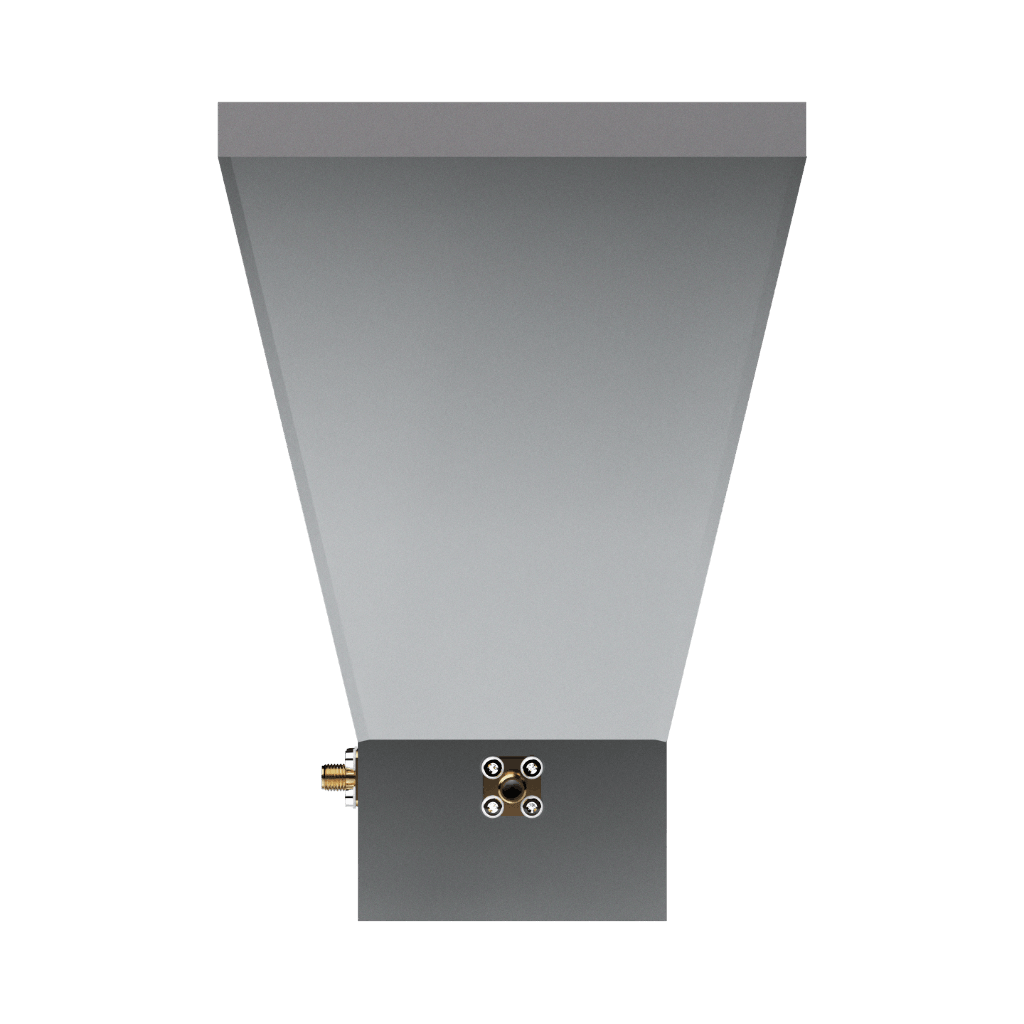

The Anywaves Quad-Ridged Horn Antenna is a custom-designed, full-metal wideband antenna for satellite payload applications requiring simultaneous coverage of a wide frequency range with medium gain and full polarization agility.

2 7

Frequency band	S to X band — S+C band version: ~2–6 GHz \| C+X band version: ~6–12 GHz (custom per project)
Polarization	Dual — linear and circular (simultaneous)
Realized gain	S+C band version: > 6 dBi at boresight (S- to C-band) C+X band version: > 8 dBi at boresight (C- to X-band)
Fractional bandwidth	Up to 100%
Radiation efficiency	> 90% (C+X band version, full-metal design)
Size	S+C band version: < 110 × 110 × 200 mm C+X band version: < 60 × 60 × 150 mm
TRL	8

TRL 9 · Flight-proven

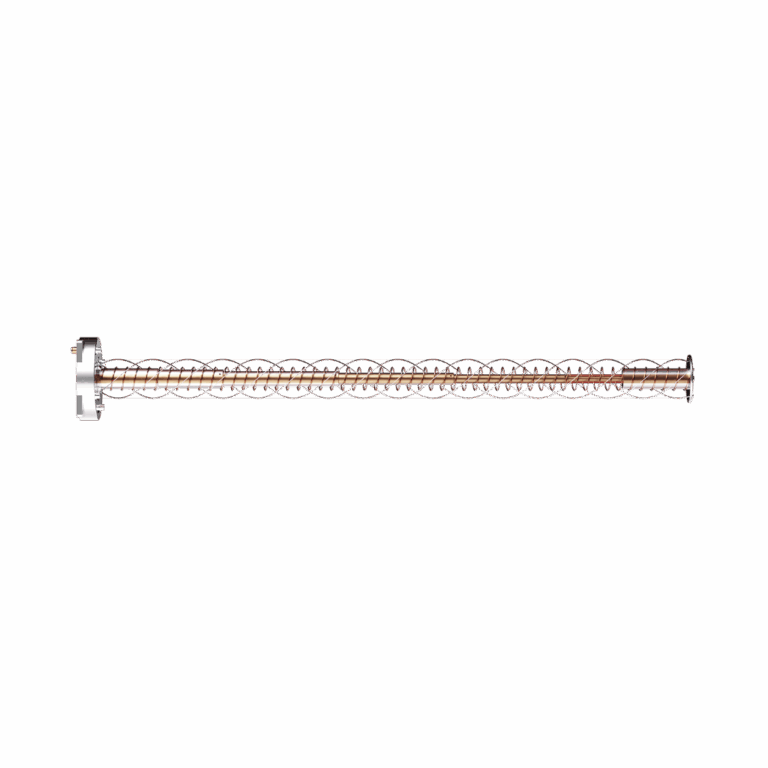

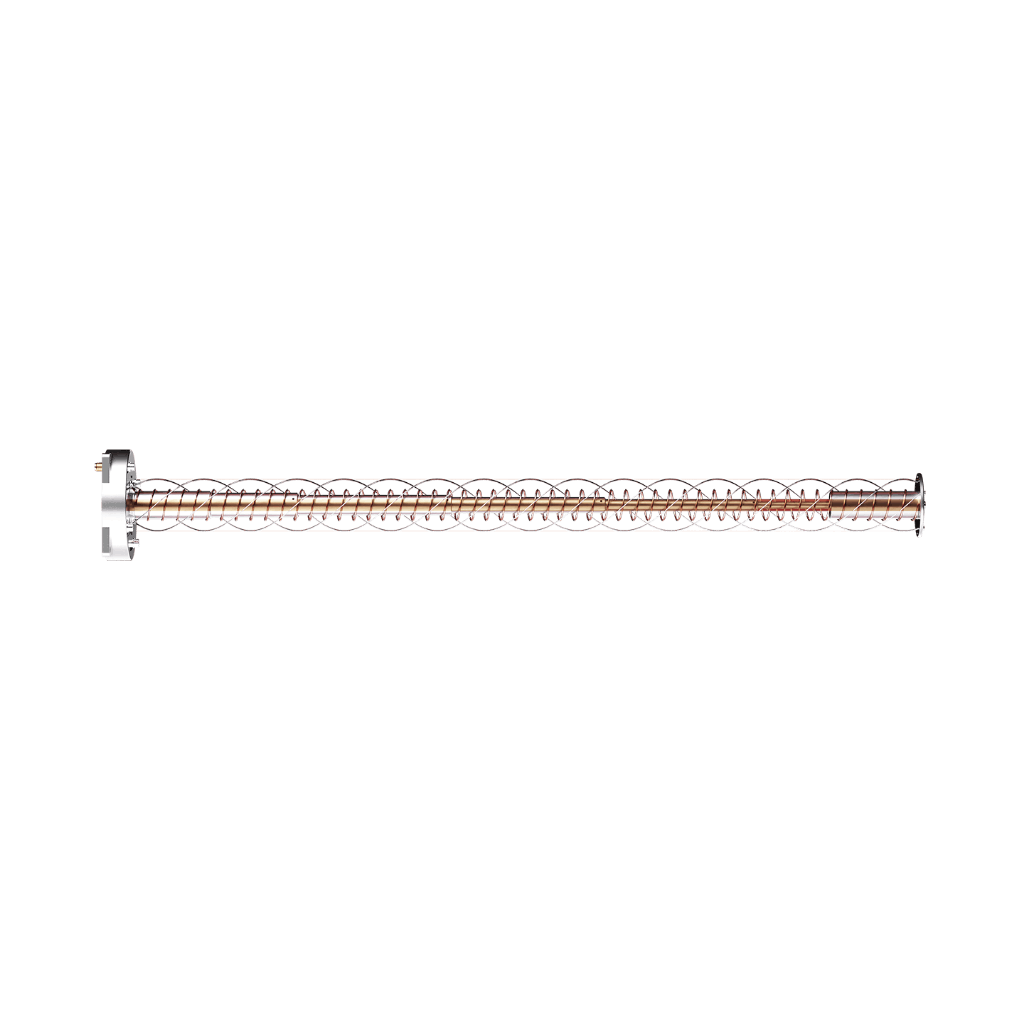

Anywaves Quadrifilar Helix Antennas are custom-designed payload antennas for LEO satellites requiring uniform coverage across their ground footprint, available in deployable and fixed versions.

2 5

Polarization	Single-circular polarization (LHCP or RHCP, custom)
Frequency range	UHF to C-band (custom — defined per project)
Radiation pattern	Isoflux — customised gain profile to your coverage requirements
Fractional bandwidth	~10% (per frequency version)
TRL	9

TRL 9 · Flight-proven

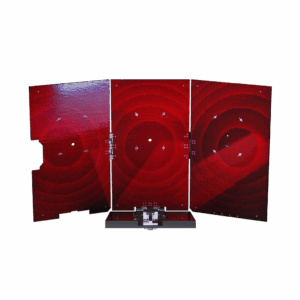

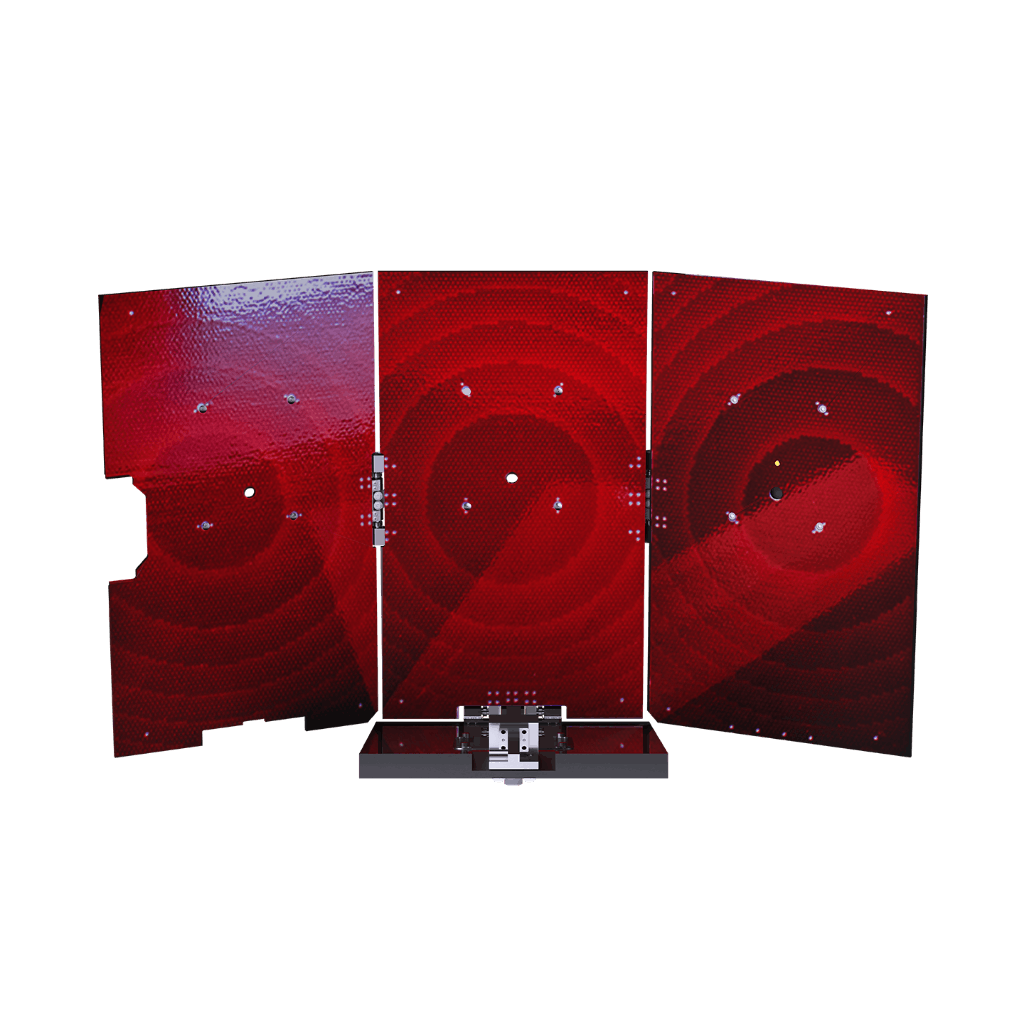

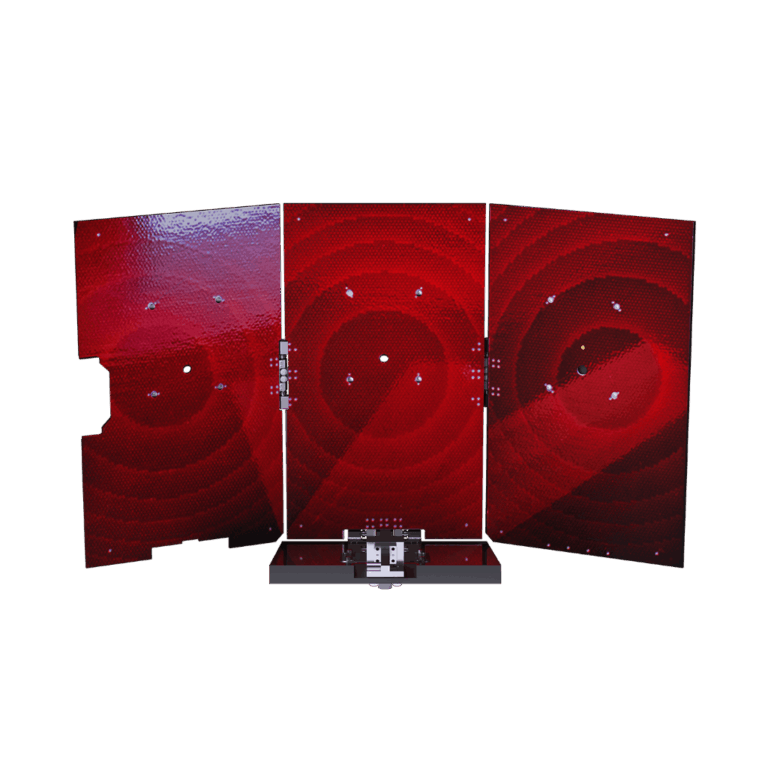

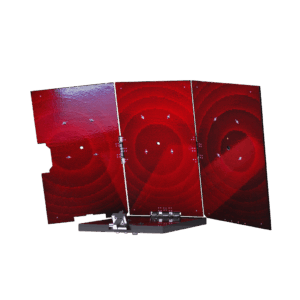

The Reflectarray Antenna replicates the performance of a parabolic reflector using a series of flat, foldable panels engineered to reflect and phase-control RF waves, delivering high gain from X-band to Ka-band.

2 6

Central frequency	X-band to Ka-band (scalable toward Q/V band)
Polarization	Dual-circular polarization (simultaneous LHCP and RHCP)
Realized gain	Up to 40 dBi (design target — optimised per project)
Fractional bandwidth	Up to 15%
Stowed dimensions	360 × 210 × 30 mm (compact stowed volume for launch)
TRL	9 — In orbit

TRL 8 · Qualified

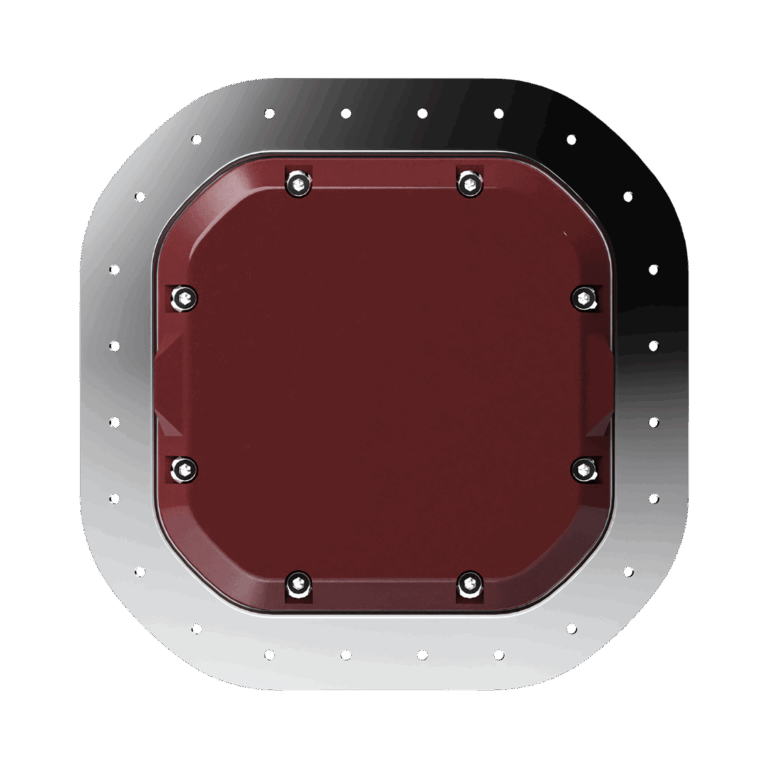

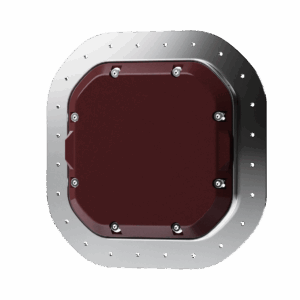

The Anywaves S-Band Launcher Antenna is a compact, TRL 8 antenna for telemetry, tracking and command (TT&C) on launch vehicles, designed to withstand the extreme thermal and mechanical loads of liftoff and ascent.

2 6

Frequency band	2.025 GHz to 2.29 GHz
Polarization	Left or Right Hand Circular Polarization
Envelope size	145 × 145 × 30 mm
Realized gain	> 6.0 dBi @ boresight > 2.0 dBi @ ±30° > −4.0 dBi @ ±60°
TRL	8
Mass with connector	Antenna: 136 g ± 3 g Flat mechanical bracket: 166 g Thermal shield: 60 g

TRL 9 · Flight-proven

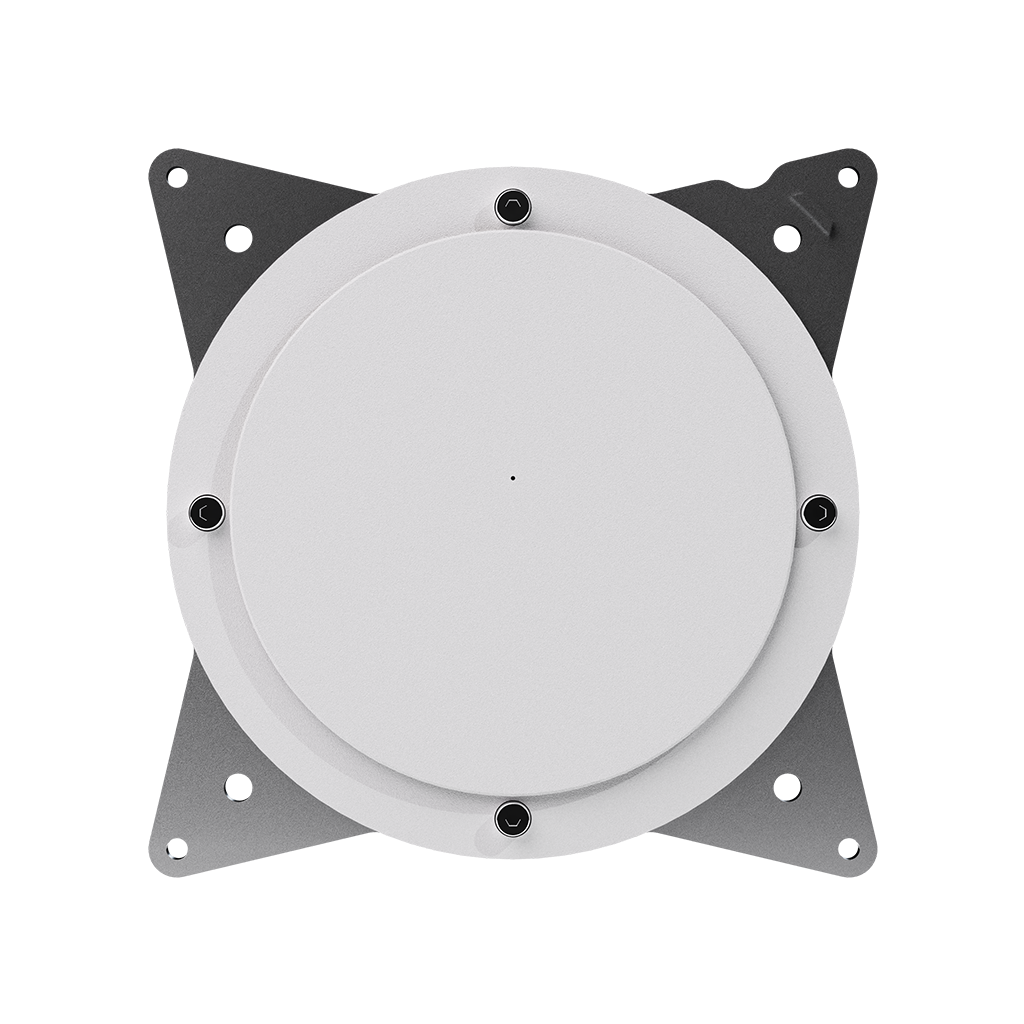

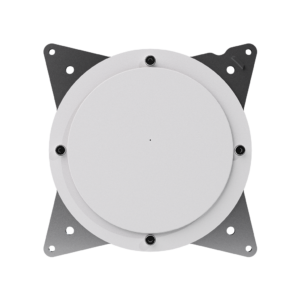

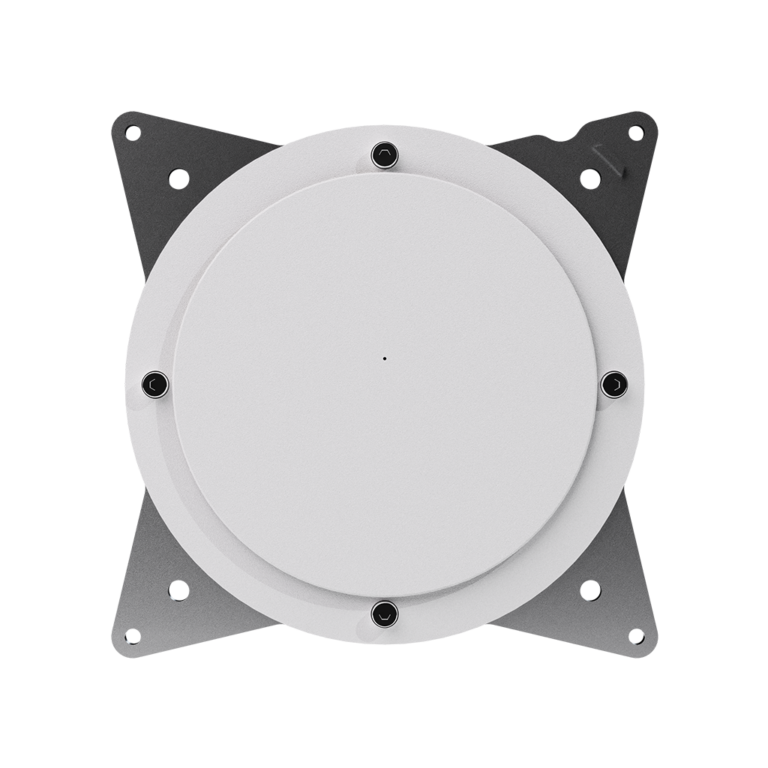

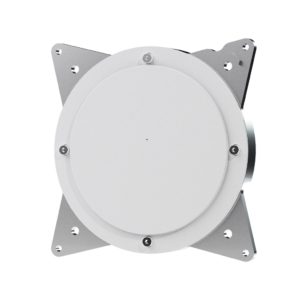

The Anywaves S-Band TT&C Antenna is a flagship telemetry, tracking, and control antenna with strong flight heritage and TRL 9, perfectly suited for LEO platforms.

3 6

Frequency band	From 2.025 GHz to 2.29 GHz
Polarization	Left or Right Hand Circular Polarization
Envelope size without connector	L 84.3 x W 84.3 x H 12.1 mm³
Realized gain	> 6.5 dBi @ boresight > 4.5 dBi @ ± 30° > 0 dBi @ ± 60°
TRL	9
Mass with connector	136 g

TRL 5 · Development

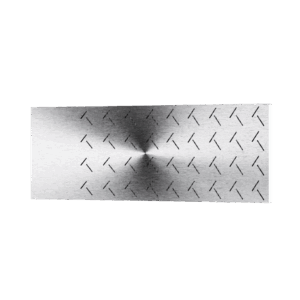

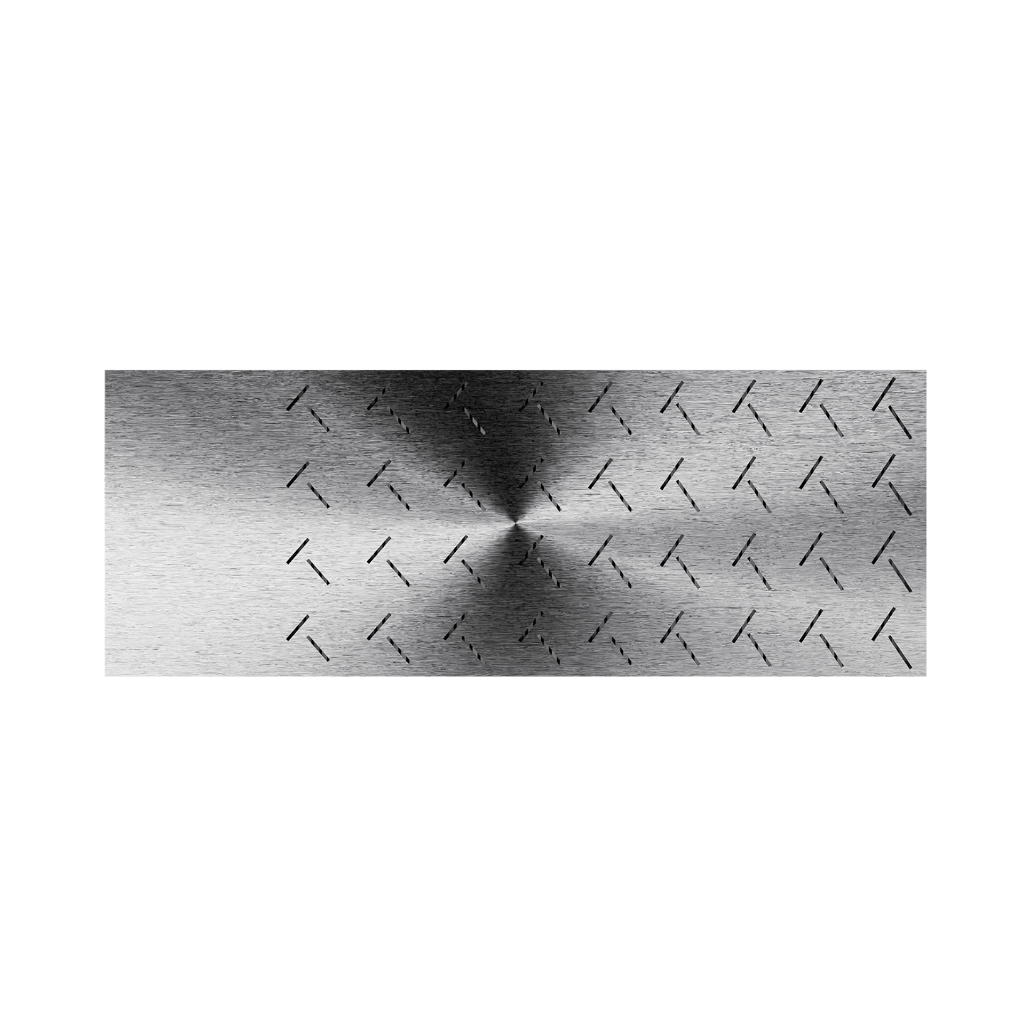

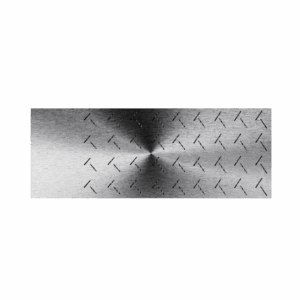

A custom-designed, high-gain flat antenna solution for satellite payload applications requiring gains above 20 dBi in the Ku or Ka band, built from a full-metal structure.

2 6

Frequency band	Ku band to Ka band (custom — defined per project)
Polarization	Left or Right Hand Circular Polarization (custom)
Realized gain	> 20 dBi (design target — optimised per project)
Fractional bandwidth	~5% (in circular polarization)
Profile thickness	< 10 mm (without connector)
TRL	5

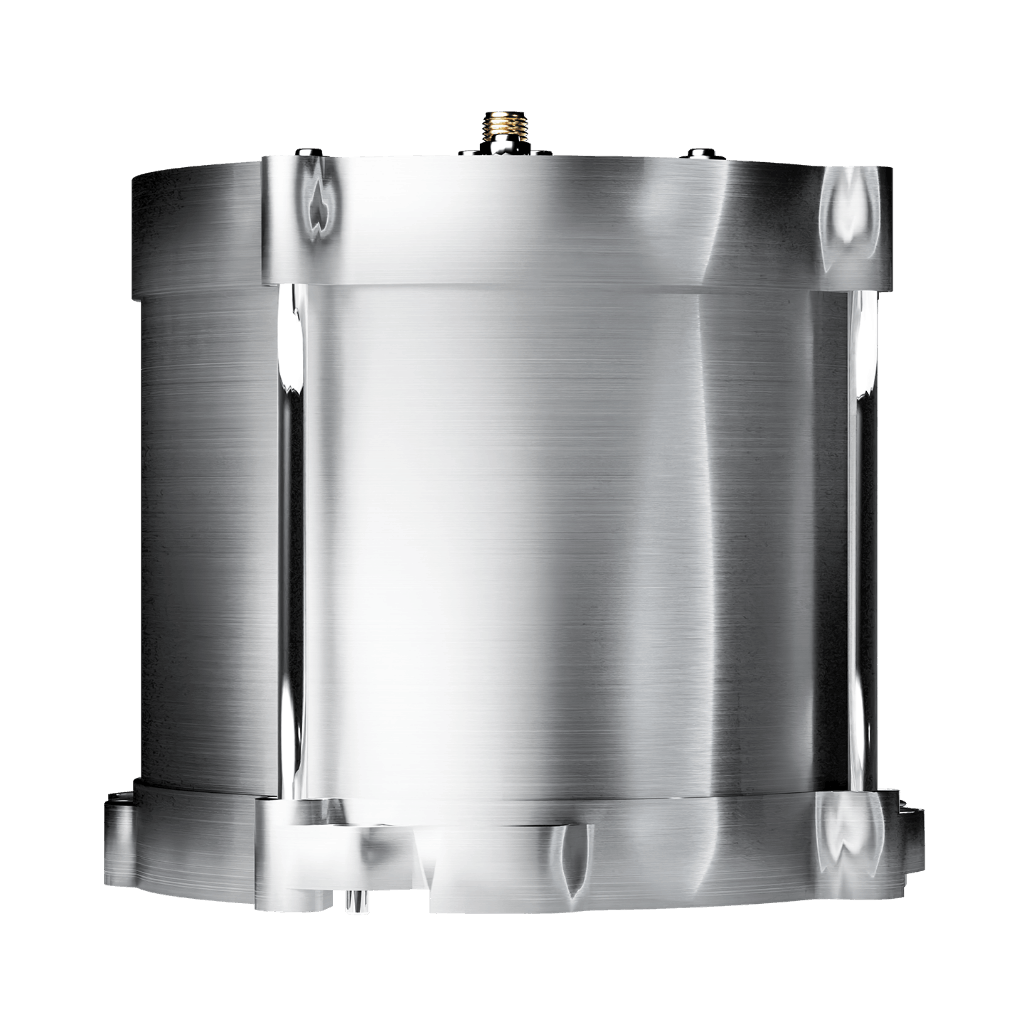

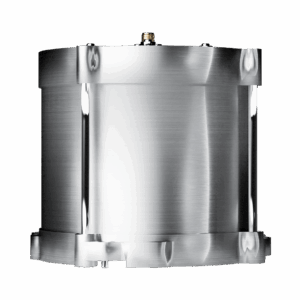

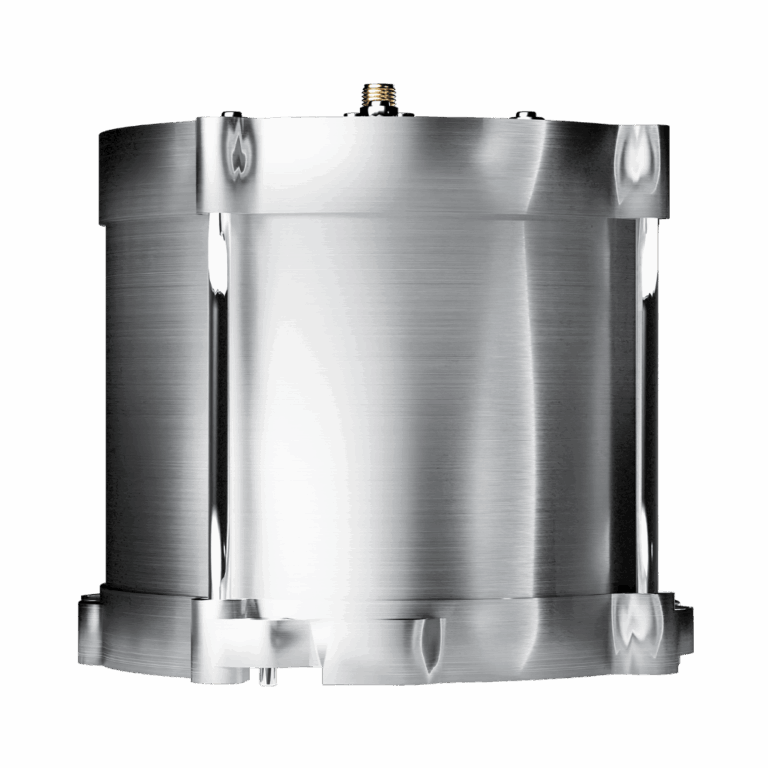

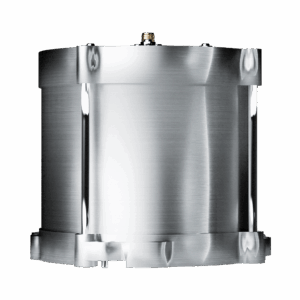

The Anywaves Test Hat for GNSS All-Bands Antennas is a ground support equipment (GSE) tool for performing end-to-end RF testing of the Anywaves GNSS All-Bands Antenna and receiver chain directly on the satellite platform.

2 4

Coupling factor	~−29 dB — variation
Envelope size with connector	Ø 118.8 mm × 105.74 mm
Mass with connector	915 g (±5 g)
Qualification temperature	−40°C to +70°C (TVAC compatible)

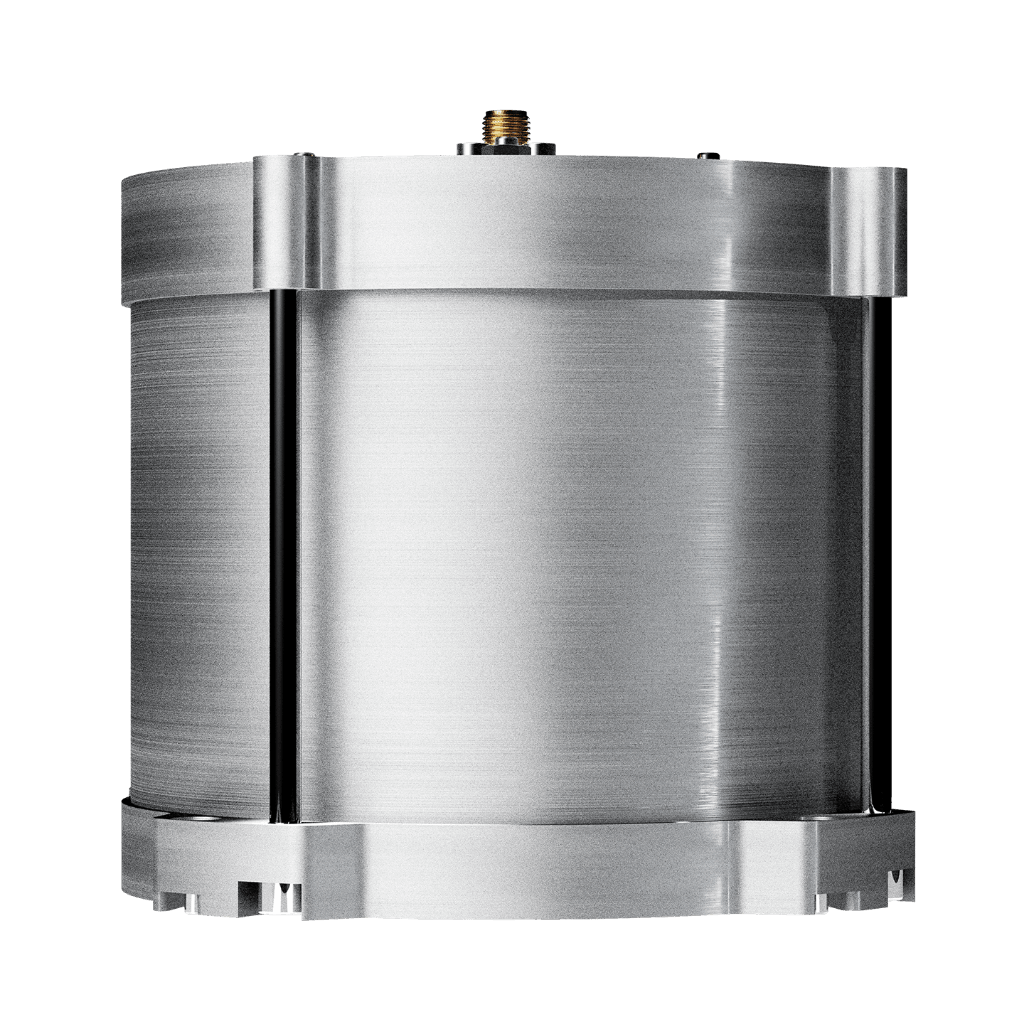

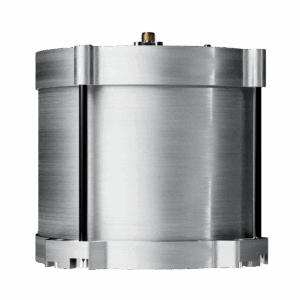

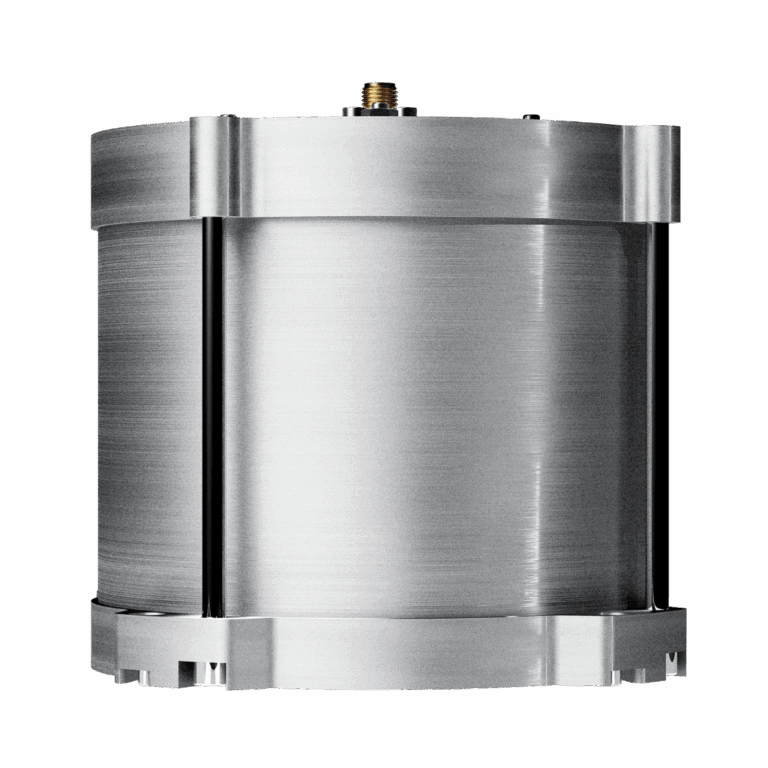

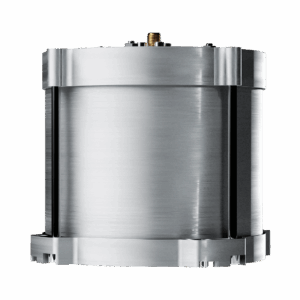

The Anywaves Test Hat for S-Band TT&C Antennas enables complete end-to-end RF testing of S-Band TT&C antennas and transceiver chains directly on the satellite platform, from assembly to TVAC testing.

2 5

Frequency band	1 980 MHz to 2 290 MHz (> 310 MHz bandwidth)
Coupling factor	~−29 dB
Envelope size with connector	Ø 117 mm × 102.74 mm
Mass with connector	919 g
Qualification temperature	−40°C to +70°C (TVAC compatible)

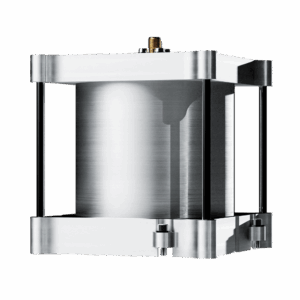

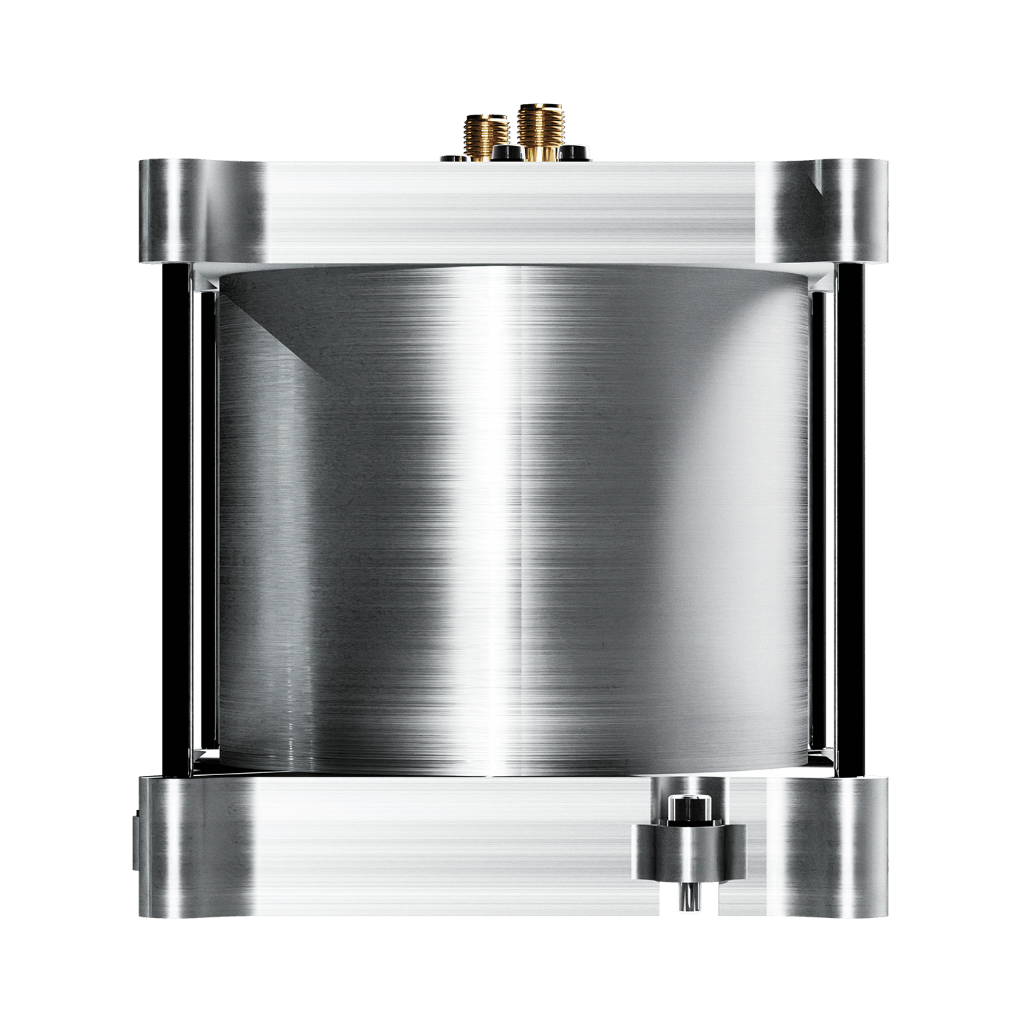

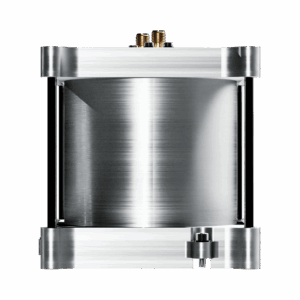

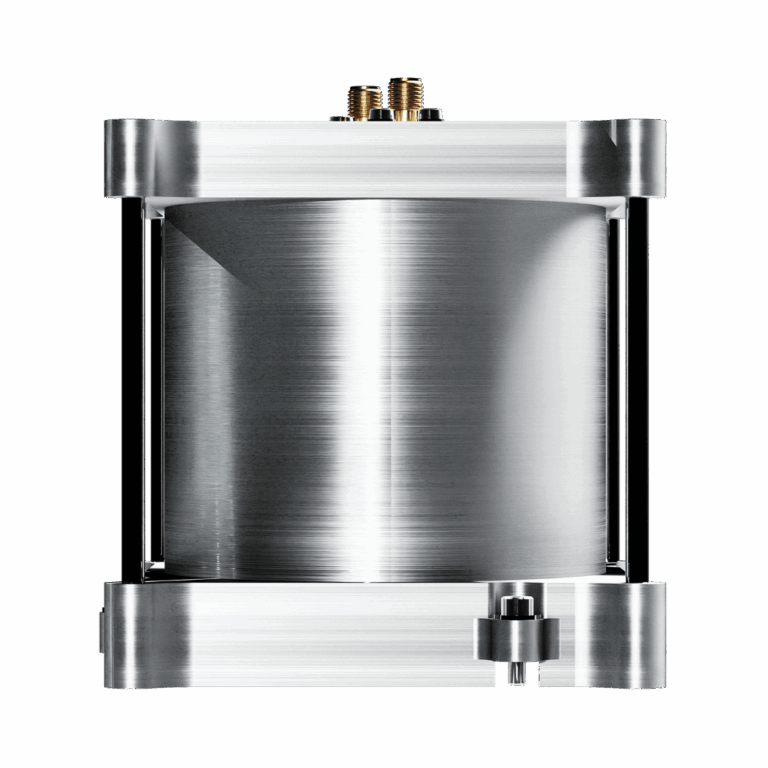

The Anywaves Test Hat for X-Band Antennas is a ground support equipment (GSE) tool for performing end-to-end RF testing of Anywaves X-Band payload downlink antennas directly on the satellite platform.

2 5

Frequency band	7.9 GHz to 8.5 GHz
Coupling factor	> 31 dB between 7.9 and 8.5 GHz
Envelope size without connector	100.2 × 100.2 × 106.2 mm
Mass with connector	615 g (±5%)
Qualification temperature	−40°C to +85°C (TVAC compatible)

Reconfigurable software-defined radio payload for small satellites supporting multiple waveforms and protocols.

1 5

Frequency range	0.3–6 GHz
Instantaneous bandwidth	up to 200 MHz
Mass	<300 g
Power consumption	<10 W
Interface	SpaceWire / UART

Flight-proven

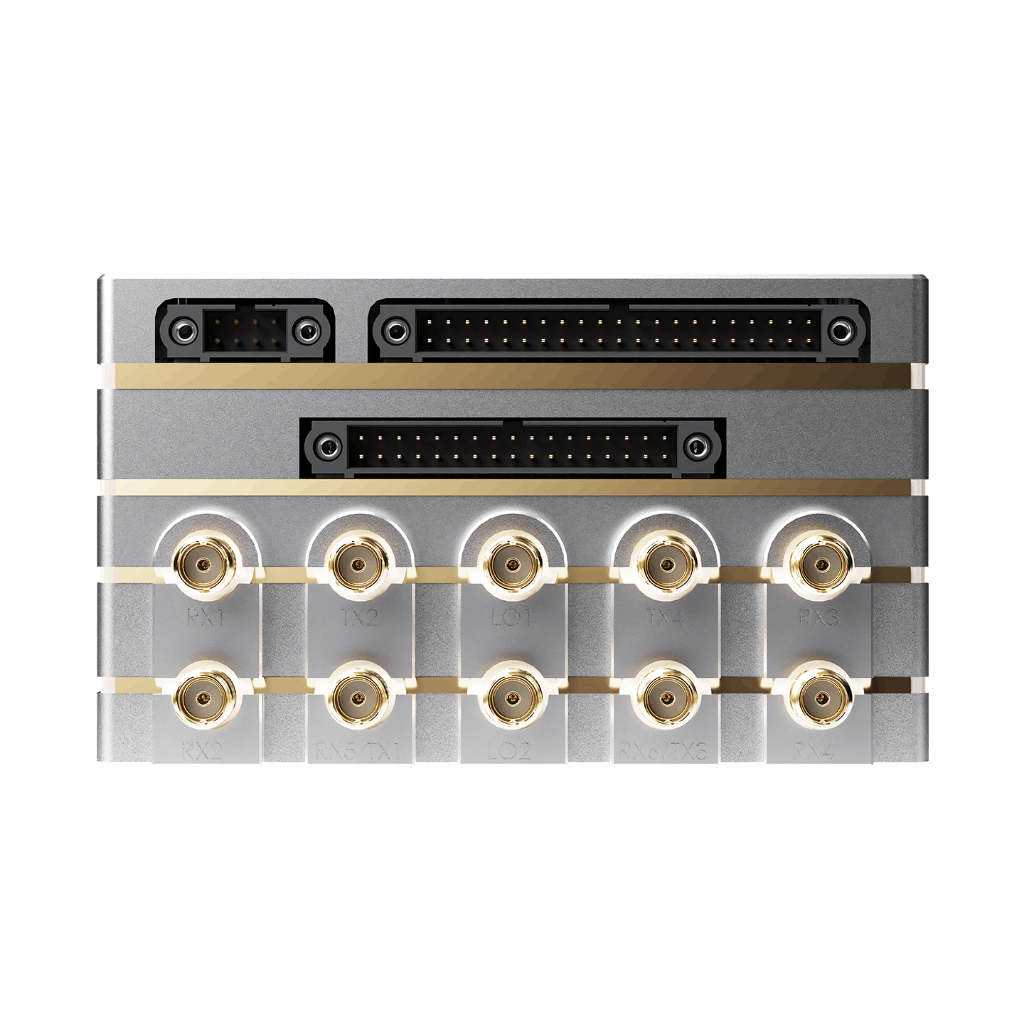

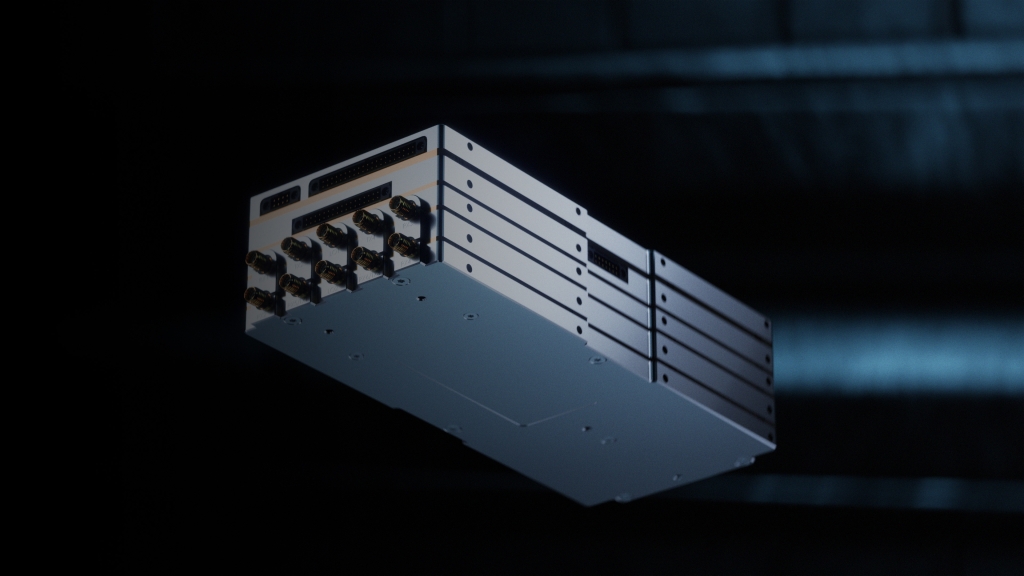

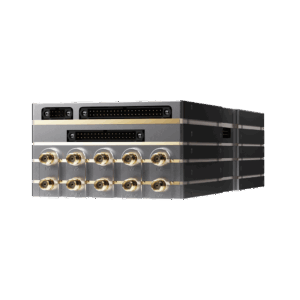

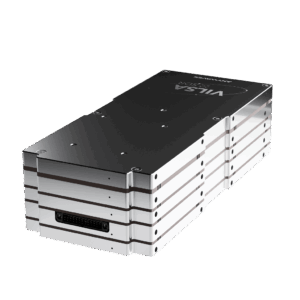

The VILSA SDR is a versatile, fully reconfigurable Software Defined Radio for space missions, combining a high-performance digital core with a multi-channel RF frontend in a ruggedized, radiation-tolerant enclosure.

5 13

In-flight reconfigurability	Yes, via Zynq® UltraScale+ SoC
RF channels	Up to six receive and four transmit channels (configurable as 6Rx/2Tx or 4Rx/4Tx)
Architecture	Distributed board architecture (four modular boards)
Mission lifetime	5-year mission lifetime (designed for)
Operating frequency range	50 MHz to 7 GHz (direct sampling mode), up to 10 GHz (integrated superheterodyne receiver)
Supported frequency bands	VHF, UHF, L-band, S-band, C-band, X-band
Maximum instantaneous bandwidth per channel	100 MHz (if all channels active)
DAC sampling frequency	3 GSa/s
ADC sampling frequency	12 GSa/s
Radiation tolerance	18 krad TID
Onboard memory	>256 GB NAND flash
Flight heritage	Based on previous-generation SDR with in-flight heritage (e.g., Juventas radar payload on ESA Hera mission)
Models available	Engineering and Flight Models

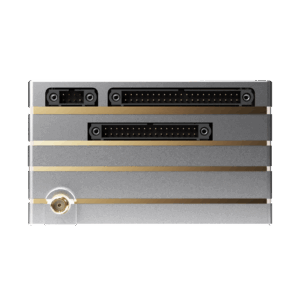

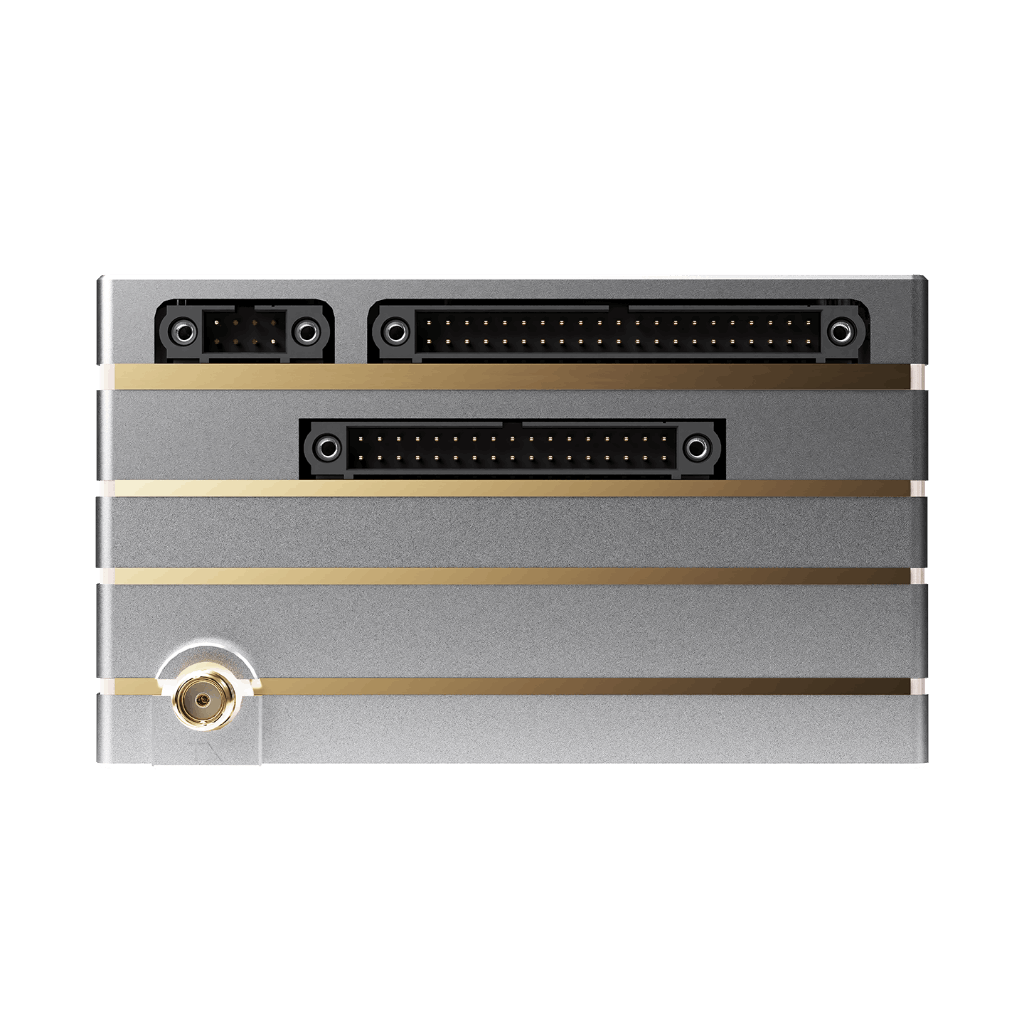

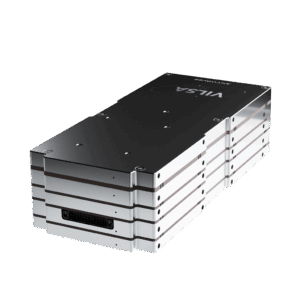

The VILSA XDL is a high-speed X-band downlink transmitter designed for high-throughput payload data transfer in demanding space missions, leveraging DVB-S2X adaptive modulation.

2 7

Frequency band	X-Band — 8.025 to 8.400 GHz
Transmit power	Configurable from +28 to +38 dBm
Data rate	Up to 800 Mbps (using APSK 32/64)
Supported standard	DVB‑S2X with adaptive modulation
Weight / Dimensions (XDL)	≈ 1,375 g / 88 × 55 × 210 mm
Weight / Dimensions (Deep-space filter)	≈ 400 g / 180 × 32 × 120 mm
Operating environment	>5-year lifetime in LEO — 18 krad TID — −20°C to +50°C

TRL 8 · Qualified

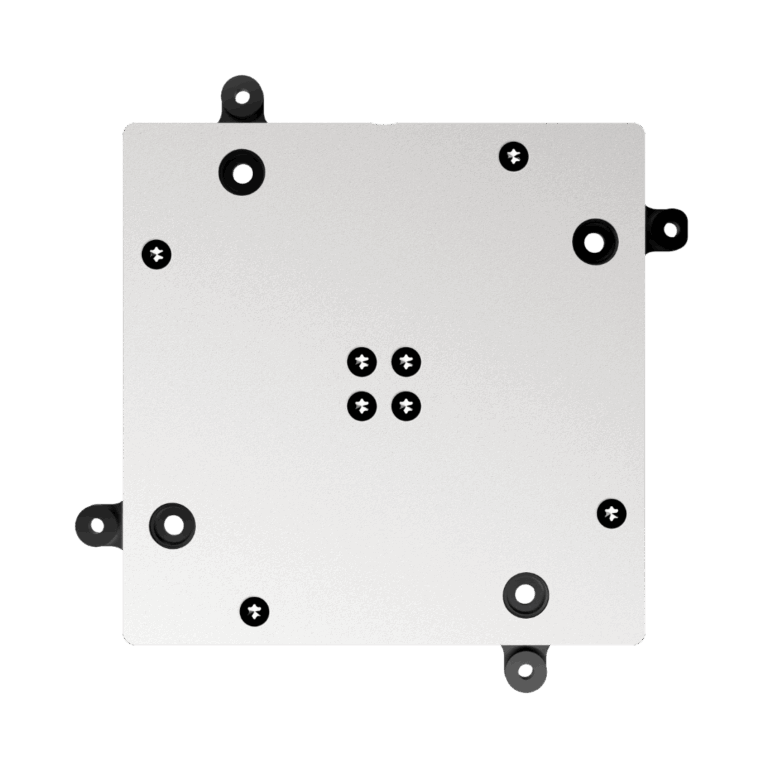

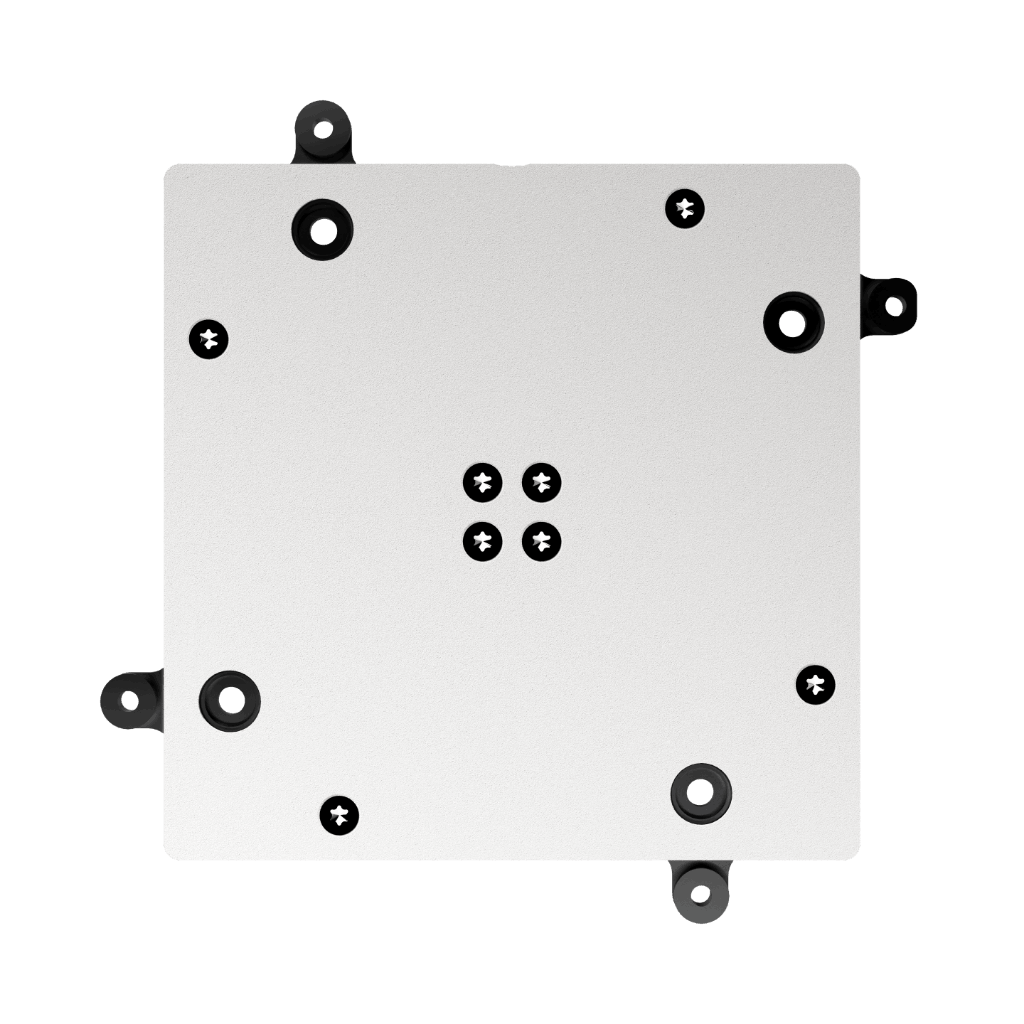

The Anywaves Wide Beam X-Band Antenna provides payload telemetry downlink across a wider field of view than the Compact X-Band Antenna, operating from 8.025 to 8.4 GHz with a Half Power Beam Width of approximately 86°.

2 7

Frequency band	8.025 GHz to 8.4 GHz
Envelope size with connector	L 100 × W 100 × H 16.2 mm
Realized gain	> 5.0 dBi @ boresight, > 4.0 dBi @ ±30°, > −1.0 dBi @ ±60°
TRL	8
Mass with connector	67.5 g (±3 g)
Beam Pattern	~86° HPBW
Configuration options	LHCP, RHCP

Additional Services

Integration & testing

Details →

RF and Electronics Subsystem Integration

Anywaves supports a higher level of integration at the heart of mission-critical spacecraft functions. This is achieved by combining flight-proven antenna product lines with embedded RF and signal-processing electronics. Their expertise allows them to deliver complete RF chains, from antenna…

Full details →

Testing & qualification

Details →

Anywaves designs and manufactures Electrical Ground Support Equipment (EGSE) for satellite RF testing and validation. These solutions enable end-to-end verification of antennas and RF chains directly on spacecraft platforms, reducing reliance on complex test facilities. Supporting GNSS, S-band and X-band…

Full details →

Details →

Anywaves provides support for qualification and test campaigns. This includes services such as test plan definition, support for test execution, data analysis, and participation in review boards (TRR, TRB, AR). They also provide dedicated Ground Support Equipment (GSE) to further…

Full details →

Engineering & analysis

Details →

Anywaves provides end-to-end space hardware design expertise, covering RF engineering (passive and active), electronics design, mechanical and thermal analysis, and embedded software development. Their multidisciplinary approach ensures that performance, reliability and environmental compliance are addressed from the earliest design stages.…

Full details →

Details →

Anywaves offers technical consultancy and co-development services, engaging with customers from the earliest stages of a program. They work across the full programme lifecycle, including requirements definition, technical consultancy, co-development, and complete product development from first requirements through to flight…

Full details →

Reviews

No reviews yet — reviews come from buyer accounts that have worked with this company.

Write a review

← All providers

Anywaves

About Anywaves

Milestones

Products

Choke Ring Ka-band TT&C Antenna

Choke Ring Ka-band TT&C Antenna

Description

Specifications

Compact S-Band TT&C Antenna

Compact S-Band TT&C Antenna

Description

Specifications

Compact Wideband Antennas

Compact Wideband Antennas

Description

Specifications

Compact X-Band Dual Polarized Antenna

Compact X-Band Dual Polarized Antenna

Description

Specifications

Compact X-Band Payload Telemetry Antenna

Compact X-Band Payload Telemetry Antenna

Description

Specifications

Direct Radiating Array Antenna

Direct Radiating Array Antenna

Description

Specifications

GNSS All-Bands Antenna

GNSS All-Bands Antenna

Description

Specifications

GNSS All-Bands Antenna with LNA Integrated Board

GNSS All-Bands Antenna with LNA Integrated Board

Description

Specifications

GNSS All-Bands Launcher Antenna

GNSS All-Bands Launcher Antenna

Description

Specifications

GNSS Antenna for Small Satellites

GNSS Antenna for Small Satellites

Description

Specifications

GNSS L1/E1 Bands Antenna

GNSS L1/E1 Bands Antenna

Description

Specifications

High Gain X-Band Payload Telemetry Antenna

High Gain X-Band Payload Telemetry Antenna

Description

Specifications

Ka-Band High-Gain Antenna

Ka-Band High-Gain Antenna

Description

Specifications

Low-Noise Block Downconverter 1–12 GHz – Space LNB

Low-Noise Block Downconverter 1–12 GHz – Space LNB

Description

Specifications

Quad-Ridged Horn Antenna

Quad-Ridged Horn Antenna

Description

Specifications

Quadrifilar Helix Antenna

Quadrifilar Helix Antenna

Description

Specifications

Reflectarray Antenna

Reflectarray Antenna

Description

Specifications

S-Band Launcher Antenna

S-Band Launcher Antenna

Description

Specifications

S-Band TT&C Antenna

S-Band TT&C Antenna

Description

Specifications
