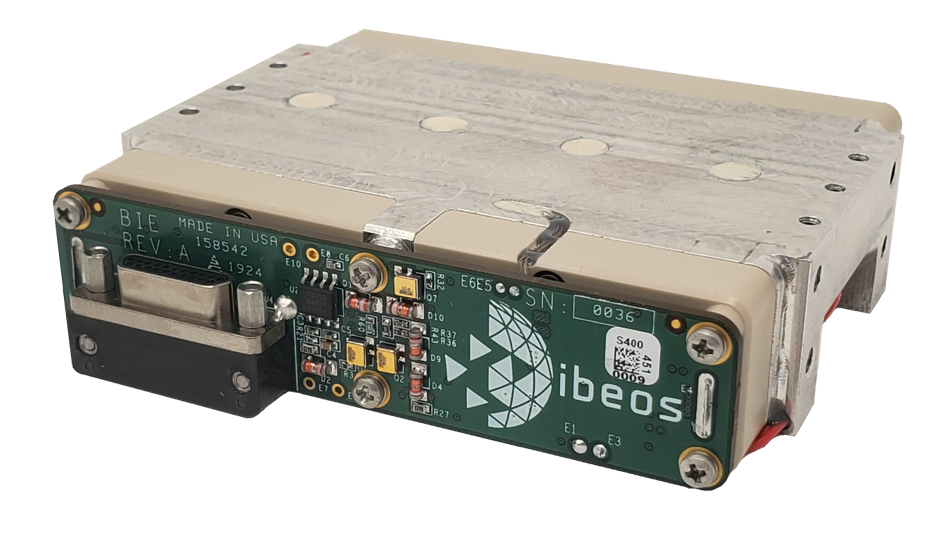

B14-M45/M90 14V Modular SmallSat Battery
Radiation-tolerant 14V modular Li-ion SmallSat battery: 45 Whr single module (B14-M45) or 90 Whr dual module (B14-M90), 6.5A peak discharge, 30 kRad TID, TRL 9.
Description
The Ibeos B14-M45/M90 is a radiation-tolerant, fault-tolerant, ISS-compliant 14V lithium-ion battery module for small satellites. The single-module B14-M45 delivers 45 Whr capacity; two modules integrated side-by-side form the B14-M90 at 90 Whr. Aluminum and PEEK packaging provides structural integrity and thermal management. The Battery Interface Electronics (BIE) provides remove-before-flight inhibit, over-voltage protection (OVP), over-current protection (OCP), and under-voltage protection (UVP). Compatible with the Ibeos E14-150 Electric Power System for a complete 14V power chain.
Specifications
| Configuration | B14-M45: 45 Whr (single); B14-M90: 90 Whr (dual module) |
|---|---|
| Nominal Voltage | 13.2–16.8 V |
| Max Discharge Rate | 6.5 A |
| Recommended Charge Rate | 1.6 A |
| Heater Power | 8 W @ 16V |
| Dimensions (single) | 94.5 x 84.1 x 23.1 mm |
| Mass (single) | <375 g |
| Operating Temp (charge) | 10 to 45 deg C |
| Operating Temp (discharge) | 0 to 45 deg C |
| SEE (operate) | LET > 37 |
| TID | 30 kRad(Si) |
| Protection | OVP, OCP, UVP, RBF inhibit |
| TRL | 9 |
