B28-M275/550/825/1100 28V Modular Battery Series
ibeos
Scalable 28V modular Li-ion battery series in 275, 550, 825, and 1100 Whr configurations, 20–80A peak discharge, 30 kRad TID, aluminum+PEEK chassis, TRL 9.
Typed specifications79 values
Discloses 8 of 12 fields engineers filter by in this category (category median 5).
- Energy
- 275 Wh 8S2P · datasheet p.1 550 Wh 8S4P | 825 Wh 8S6P | 1 100 Wh 8S8P
- Mass
- 2 100 g 8S2P configuration · datasheet p.1 4 000 g 8S4P configuration | 5 900 g 8S6P configuration | 7 800 g 8S8P configuration | 2 100–7 800 g
- Cell chemistry
- Li-ion (unspecified) lithium-ion battery assemblies · datasheet p.1
- Envelope (L×W×H)
- 150 x 147 x 90 mm 8S2P (length x width x height) · datasheet p.1 250 x 147 x 90 mm 8S4P (length x width x height) | 360 x 147 x 90 mm 8S6P (length x width x height) | 465 x 147 x 90 mm 8S8P (length x width x height)
- Supply voltage
- 24 V min · Operating Voltage · datasheet p.1 33.6 V max · Operating Voltage | 24–33.6 V operating voltage
- Power consumption
- 20 W Heater Power @ 28V, 8S2P · datasheet p.1 40 W Heater Power @ 28V, 8S4P | 60 W Heater Power @ 28V, 8S6P | 80 W Heater Power @ 28V, 8S8P
- Operating temperature
- 0 °C min · Charge Cell Temperature · datasheet p.1 -25 °C min · Discharge Cell Temperature | 45 °C max · Charge Cell Temperature | 55 °C max · Discharge Cell Temperature | -25–55 °C discharge cell temperature
- Radiation tolerance (TID)
- 30 krad (Si) · datasheet p.1 30 krad total ionizing dose
- TRL
- 9 product page
- Cell configuration
- 8S8P 1100 Whr capacity · datasheet p.1 8S2P 275 Whr capacity | 8S4P 550 Whr capacity | 8S6P 825 Whr capacity | 8S4P +2
- Max continuous discharge current
- 80 A 1100 Whr capacity · datasheet p.1 20 A 275 Whr capacity | 40 A 550 Whr capacity | 60 A 825 Whr capacity | 20 A 8S2P configuration +7
- Nominal voltage
- 28 V nom. · 28-Volt battery assemblies · datasheet p.1
- Connector
- 1x 100-Pin scoop-proof 38999 connector; 1x 21-Pin Micro-D connector datasheet p.1 1x 21-Pin Micro-D Connector
- Max charge current
- 20 A 1100 Whr capacity · datasheet p.1 5 A 275 Whr capacity | 10 A 550 Whr capacity | 15 A 825 Whr capacity | 5 A 8S2P configuration +7
- Built-in heater
- yes Kapton thermofoil heaters · datasheet p.1
- Heater power
- 20 W 8S2P, @ 28V, each · datasheet p.1 40 W 8S4P, @ 28V, each | 60 W 8S6P, @ 28V, each | 80 W 8S8P, @ 28V, each
- Protections
- over-current charge datasheet p.1 over-charge (OV) over-voltage | external inhibit / RBF storage/pre-launch inhibit interface | short circuit survives sustained short-circuit | over-discharge (UV) under-voltage +5
- Charge temperature range
- 0–45 °C charge cell temperature · datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier12 lines, in the manufacturer's own wording
- Configurations
- B28-M275 (275 Whr), B28-M550 (550 Whr), B28-M825 (825 Whr), B28-M1100 (1100 Whr)
- Operating voltage
- 24–33.6 V
- Max discharge rate
- 20 A (275 Whr) to 80 A (1100 Whr)
- Recommended charge rate
- 5 A (275 Whr) to 20 A (1100 Whr)
- Mass range
- 2.1–7.8 kg
- Cross-section
- 147 x 90 mm
- Length range
- 150–465 mm
- Cell temp (charge)
- 0 to 45 deg C
- Cell temp (discharge)
- -25 to 55 deg C
- SEE (operate)
- LET > 37
- TID
- 30 kRad(Si)
- TRL
- 9
About

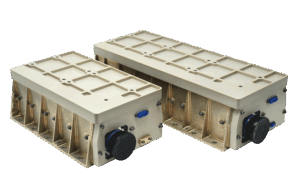

The Ibeos B28-M275/550/825/1100 is a radiation-tolerant, fault-tolerant modular 28V lithium-ion battery series for SmallSat and larger spacecraft. Four configurations cover 275 to 1100 Whr in 275 Whr increments. Aluminum and PEEK chassis with Kapton thermofoil heaters. Connectors are 1x 100-pin 38999 plus 1x 21-pin Micro-D. Discharge rates scale with capacity from 20A (275 Whr) to 80A (1100 Whr). Mass ranges from 2.1 kg to 7.8 kg and length from 150 mm to 465 mm, with constant 147×90 mm cross-section for modular integration.
