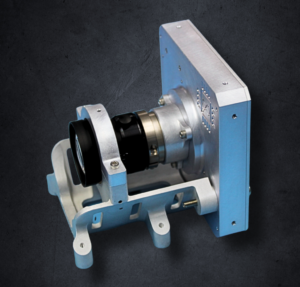

Lynx4MP-10 Satellite Camera
Wide-angle 4 MP CubeSat camera with 10 mm focal length and 58 deg FOV, designed for space asset monitoring and close proximity operations at 535 g.
Description

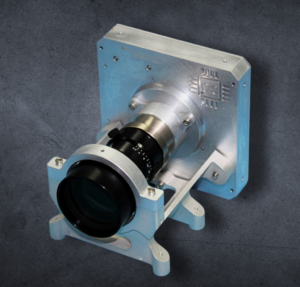

The Infinity Avionics Lynx4MP-10 features a 10 mm focal length wide-angle ruggedized optical assembly. The wide field of view is ideal for space-based space asset monitoring and close proximity applications. TRL 9 flight-qualified design.
Specifications
| Resolution | 2048 x 2048 (4 MP) |
|---|---|
| Pixel Size | 5.5 um |
| FOV | 58 deg |
| Focal Length | 10 mm |
| F-number | F/1.9 to F/16 (adjustable) |
| Frame Rate | 13 FPS |
| Mass | 535 g (with optics) |
| Power Supply | 5 V DC |
| Power Consumption | 2.75 W |
| Dimensions | 95 x 95 x 101 mm |
| Interface | UART / RS485 |
| TRL | 9 |
