Orion12MP
Infinity Avionics
The Orion12MP is a 12 Megapixel RGB/Monochrome camera backend electronics unit designed for various space applications, featuring a global shutter and up to 100 FPS capture to eliminate motion blur.
Typed specifications34 values
Discloses 5 of 14 fields engineers filter by in this category (category median 4).
- Mass
- 290 g datasheet p.19
- Envelope (L×W×H)
- 96 mm x 91 mm x 37 mm datasheet p.19
- Sensor resolution
- 12 Mpx datasheet p.19 4096x3072 px
- Supply voltage
- 5 V datasheet p.19 5 V input voltage / power supply
- Power consumption
- 2.5 W Idle · datasheet p.19 6 W max | 6 W max · max
- Data interface
- UART communication / control and image / bulk data interface · datasheet p.18 UART Communication / control interface | RS-485 control | RS-485 communication / control and image / bulk data interface | RS-485 Communication / control interface +3
- Operating temperature
- -10 °C product page -10–60 °C | -10 °C
- TRL
- 9 datasheet p.18 6
- Camera type
- other Monochrome · datasheet p.18 RGB RGB / Monochrome
- Focal length
- 550 mm product page
- Detector
- CMOS CMOS Global shutter · datasheet p.18
- Bit depth
- RAW Image encoding · datasheet p.17
- Frame rate
- 100 fps at full resolution · datasheet p.17 100 fps max · up to, at full resolution
- Sensor format (pixels)
- 4096x3072 (12 MP) datasheet p.18
- On-board storage
- 256 GB on-board flash memory · datasheet p.18 256 GB On-board storage / flash memory
- Pixel pitch
- 5.5 µm datasheet p.18
- On-board compression
- none (raw) image encoding RAW · datasheet p.18
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier40 lines, in the manufacturer's own wording
- Image sensor
- CMOS Global shutter
- Pixel resolution
- 4096×3072 (12 MP)
- Pixel size
- 5.5 µm
- Spectral bands
- RGB / Monochrome
- Image encoding
- RAW
- Frames per second
- Up to 100 FPS at full resolution
- On-board storage / flash memory
- 256 GB
- On-board ram
- Up to 290 full-resolution images
- Communication / control interface
- UART / RS485 / Ethernet
- Image / bulk data interface
- UART / RS485 / Ethernet
- Input voltage / power supply
- 5 V DC
- Power consumption
- 2.5 W Idle/ 6 W max
- Size / dimensions
- 96 mm x 91 mm x 37 mm
- Weight / mass
- 290 g
- Operating temperature
- −10°C to 60°C
- Recommended temperature for imaging
- −10°C to 60°C
- TRL
- 9
- Image sensor (2)
- CMOS Global shutter
- Pixel resolution (2)
- 4096×3072 (12 MP)
- Pixel size (2)
- 5.5 µm
- Spectral range
- 400 nm – 1000 nm (customisable)
- Spectral bands (2)
- RGB / Monochrome
- Field of view (degrees)
- 1.75°
- Focal length
- 550 mm
- F number
- F/6
- Optical assembly
- Space-qualified 550 mm assembly
- Spatial resolution / GSD
- 5 m at 500 km orbit
- Image encoding (2)
- RAW
- Frames per second (2)
- Up to 100 FPS at full resolution
- On-board storage / flash memory (2)
- 256 GB
- On-board ram (2)
- Up to 290 full-resolution images
- Communication / control interface (2)
- UART / RS485 / Ethernet
- Image / bulk data interface (2)
- UART / RS485 / Ethernet
- Input voltage / power supply (2)
- 5 V DC
- Power consumption (max)
- 2.5 W Idle/ 6 W max
- Size / dimensions (2)
- 100 mm × 100 mm × 250 mm
- Weight / mass (2)
- 1.5 kg
- Operating temperature (2)
- −10°C to 60°C
- Recommended temperature for imaging (2)
- −10°C to 60°C
- TRL (2)
- 6
About

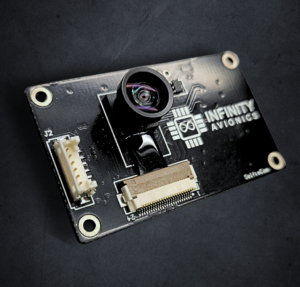

The Orion12MP is a highly customizable 12 Megapixel RGB/Monochrome camera backend electronics unit that can be combined with application-specific optical assemblies. Unlike standard monitoring cameras, it utilizes a global shutter and 100 FPS capture at full resolution to eliminate motion blur during high-velocity maneuvers, making it suitable for dynamic space environments. For missions prioritizing ultra-low power consumption over high-speed data, the manufacturer offers SelfieCam Video and Leo2MP as TRL 9 alternatives. The Orion12MP is designed leveraging a modular methodology, allowing for customization with different sensors and interface options, which reduces engineering effort and cost. It is suitable for a range of space applications including Earth observation, hyperspectral imaging, space-based space surveillance, and docking/rendezvous, depending on the selected optical assembly. The system has been qualified for thermal vacuum, vibration, and shock. The Orion12MP-550 variant includes a 550mm focal length space-grade optical assembly, specifically supporting Earth observation and space-based space surveillance applications.
