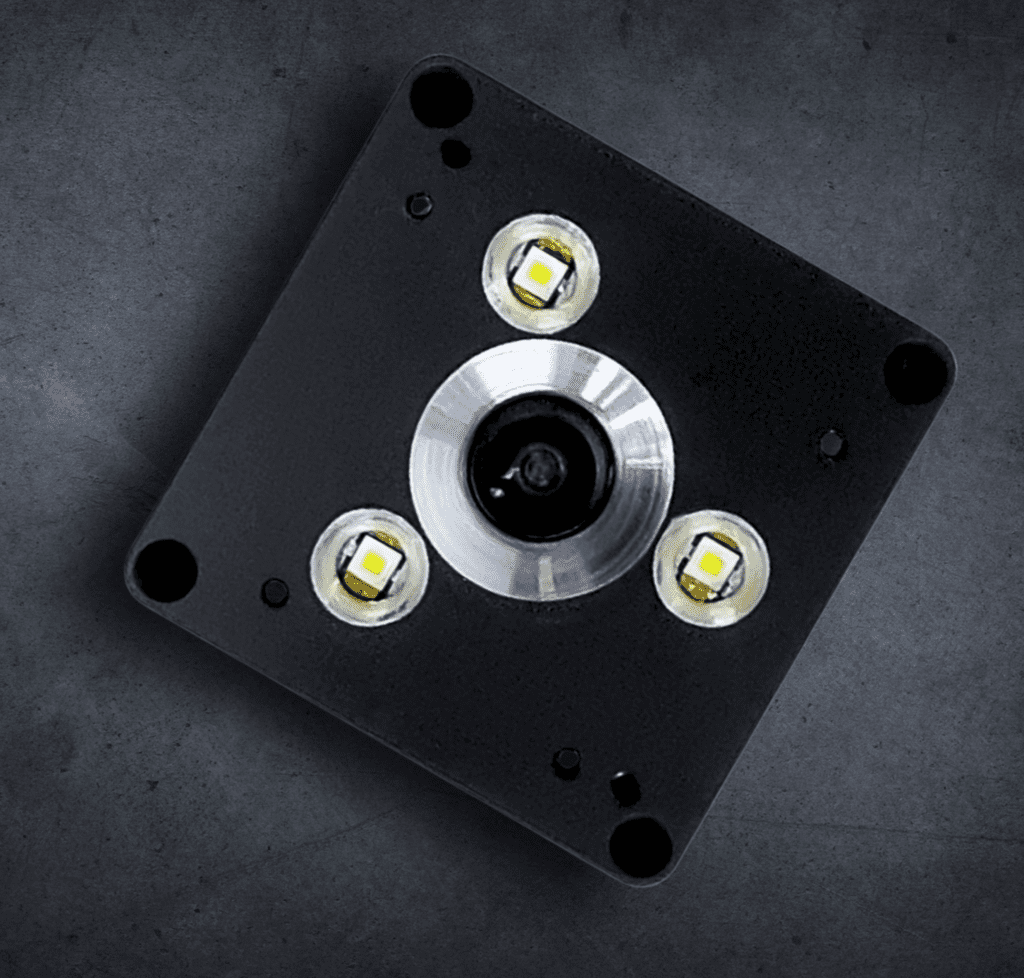

Leo2MP Monitor Camera with Image Streaming
Infinity Avionics
Leo2MP is a spacecraft close proximity camera with up to 2MP resolution, image data streaming, and LED illumination for space applications.
Typed specifications5 values
Discloses 1 of 14 fields engineers filter by in this category (category median 4).
- Mass
- 65 g product page
- Envelope (L×W×H)
- 2.2 µm product page 45 mm × 45 mm × 20 mm
- Operating temperature
- -20 °C product page
- Focal length
- 1 mm product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier16 lines, in the manufacturer's own wording
- Pixel resolution
- 1200 x 1600, 1024 x 768, 800 x 600, 640 x 480
- Pixel size
- 2.2 µm
- Spectral range
- VIS
- Field of view
- 110°
- Focal length
- 1 mm
- Image encoding
- JPEG
- Frames per second
- Up to 12 FPS
- On-board storage / flash memory
- 200 images
- Communication / control interface
- UART – ASCII commands
- Image / bulk data interface
- UART / USB2
- Input voltage / power supply
- 5 V DC
- Power consumption
- 1 W (without LED) / 3.5 W (with LED)
- Size / dimensions
- 45 mm × 45 mm × 20 mm
- Weight / mass
- 65 g
- Operating temperature
- −20°C to 60°C
- Recommended temperature for imaging
- −20°C to 60°C
About
The Leo2MP camera is designed for space applications, capable of image capture and on-board saving or streaming over a USB2 interface. It includes LED illumination to support challenging space lighting conditions. The camera can be used for monitoring spacecraft structures, deployment activities, space manufacturing, robotics, and rover applications.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
