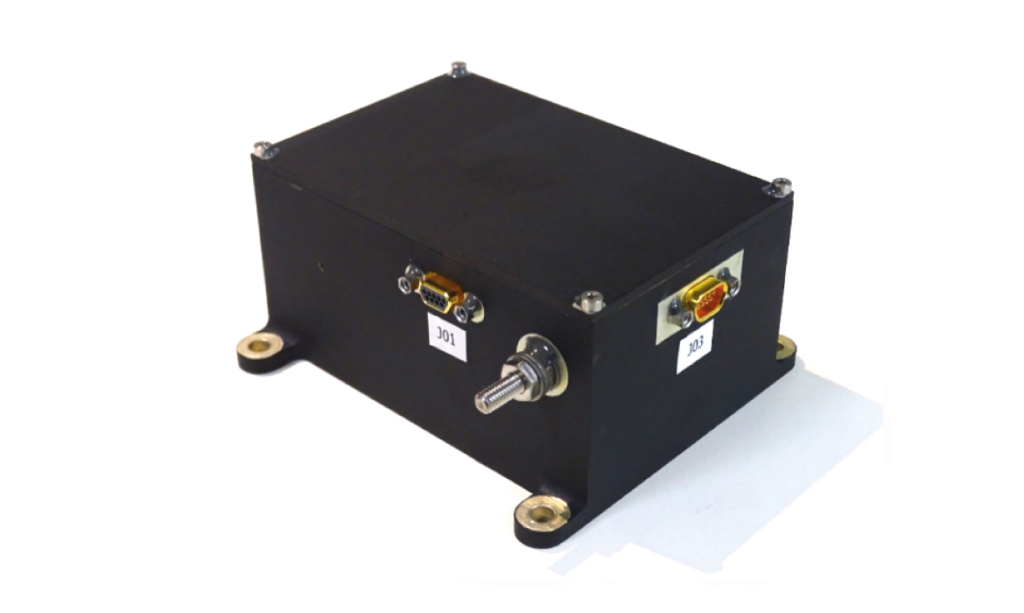

DMAG Digital Magnetometer
3-axis digital magnetometer with RS-485/422 interface and ±65,000 nT range for LEO attitude reference, ITAR/EAR-free and customizable to mission requirements.
Description
The Lusospace DMAG Digital Magnetometer provides 3-axis digital readings of the surrounding magnetic field for attitude reference in LEO missions where a digital interface is required. Designed, manufactured, and calibrated in-house using AMR (Anisotropic Magnetoresistance) technology, the DMAG is fully customizable to mission requirements. It operates from a +28 V or +5 V supply with RS-485/422 digital output and achieves a dynamic range of ±65,000 nT with noise under 20 nT (1σ). Radiation-hardened to 50 kRad and currently at TRL 8 under ECSS and MIL qualification. ITAR/EAR free.
Specifications
| Dynamic Field Range | ±65,000 nT |
|---|---|
| Noise | ≤20 nT (1σ) |
| Offset | ≤500 nT |
| Linearity | <±0.2% (full scale) |
| Bandwidth | ≤50 Hz |
| Supply Voltage | +28 V or +5 V |
| Power Consumption | <1.5 W |
| Data Interface | RS-485/422 |
| Mass | ≤300 g |
| Dimensions | 112 × 72 × 33 mm (excl. connectors) |
| Operating Temperature | -40°C to +70°C |
| Radiation Hardness | Up to 50 kRad |
| TRL | 8 (under ECSS/MIL qualification) |
| ITAR/EAR | Free |
