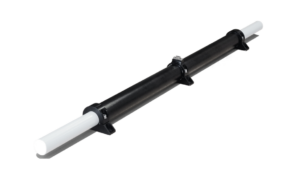

MTQ140 magnetorquer
Lusospace
The MTQ140 is a demisable magnetorquer for small satellites, used for attitude control, detumbling, stabilization, and reaction wheel unloading.
Typed specifications21 values
Discloses 6 of 8 fields engineers filter by in this category (category median 3).
- Magnetic dipole moment
- 140 A·m² nom. · datasheet p.2 140 A·m² +/- 140
- Mass
- 3 800 g max · datasheet p.2
- Envelope (L×W×H)
- 620 x 90 x 60 mm datasheet p.2
- Residual moment
- 0.5 A·m² max · product page
- Supply voltage
- 15 V +/- · datasheet p.1 15 V max · up to +/- 15 V
- Power consumption
- 4.5 W max · datasheet p.2
- Operating temperature
- 85 °C -40 to · datasheet p.1 -40–85 °C qualification
- Radiation tolerance (TID)
- 100 krad datasheet p.2 100 krad max · up to 100 kRad
- TRL
- 8 product page
- Magnetorquer type
- rod datasheet p.1
- Axes
- 2 datasheet p.1
- Survival temperature
- -35–80 °C non-operating, qualification · datasheet p.1
- Flight heritage
- Space Rider datasheet p.2
- Satellite class
- microsat 10-100 kg datasheet p.1 smallsat 100-500 kg
- Missions flown
- 1 datasheet p.1
- Linearity
- 1 % max · linearity error · datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier11 lines, in the manufacturer's own wording
- TRL
- 8
- Torque
- +/- 140 A.m2
- Linearity Error
- <= 1%
- Residual Magnetic Moment
- <= 0.5%
- Time Constant
- <= 175 ms
- Supply voltage
- Up to +/- 15 V
- Power
- < 4.5 W
- Number of Coils
- 2
- Mass
- < 3.8 Kg
- Dimensions
- 620 x 90 x 60 mm
- Radiation Hardness
- Up to 100 kRad
About
Lusospace’s MTQ140 magnetorquer is a passive magnetic system designed for attitude and control purposes in small-size satellites. Its functions include detumbling, stabilization, and unloading of reaction wheels. The magnetorquer generates a magnetic field that interacts with the Earth’s magnetic field, providing a control torque for the spacecraft’s Attitude and Orbit Control System (AOCS). A key feature of the MTQ140 is its ‘Demisable by design’ characteristic. This addresses the challenge of re-entry survival for magnetorquer cores, which typically exceed 3.5 kg and can survive re-entry due to shielding. Lusospace developed this demisable solution to meet the identified needs for recurrent actuators. The MTQ140 is currently undergoing qualification for space applications, adhering to ECSS (ESA) standards, and has a Technology Readiness Level (TRL) of 8. It is also free from non-EU export restrictions, specifically being ITAR and EAR free.
