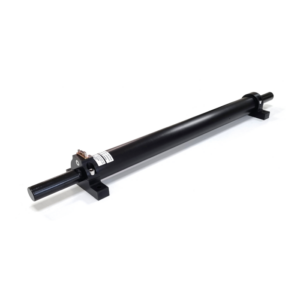

MTQ400 magnetorquer
Lusospace
The Lusospace MTQ400 is a demisable magnetorquer designed for attitude and control purposes, including detumbling, stabilization, and reaction wheel unloading for medium to large satellites.
Typed specifications23 values
Discloses 5 of 8 fields engineers filter by in this category (category median 3).
- Magnetic dipole moment
- 400 A·m² +/- 400 · datasheet p.1 400 A·m² max
- Mass
- 7 000 g max · datasheet p.2
- Envelope (L×W×H)
- 950 x 80 x 80 mm datasheet p.2
- Residual moment
- 0.5 A·m² max · product page
- Supply voltage
- 28 V max · datasheet p.2 28 V max · up to +/- 28 V
- Power consumption
- 15 W max · datasheet p.1 15 W max
- Operating temperature
- -35 °C min · datasheet p.2 65 °C max | -35–65 °C qualification
- Radiation tolerance (TID)
- 100 krad max · datasheet p.2 100 krad max · up to 100 kRad
- TRL
- 6 according to ECSS (ESA) · datasheet p.1
- Export status
- ITAR-free free from any non-EU export restrictions · datasheet p.1
- Magnetorquer type
- rod datasheet p.0
- Survival temperature
- -40 °C min · datasheet p.2 80 °C max | -40–80 °C non-operating, qualification
- Satellite class
- large >500 kg datasheet p.0 smallsat 100-500 kg
- Linearity
- 1.5 % max · linearity error · datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier12 lines, in the manufacturer's own wording
- TRL
- 6 according to ECSS (ESA)
- Export restrictions
- ITAR and EAR free
- Magnetic Dipole
- +/- 400 A.m2
- Linearity Error
- <= 1.5%
- Residual Magnetic Moment
- <= 0.5%
- Time Constant
- <= 250 ms
- Supply Voltage
- Up to +/- 28 V
- Power consumption
- <= 15 W
- Number of Coils
- 1 or 2
- Mass
- < 7 Kg
- Dimensions
- 950 x 80 x 80 mm
- Radiation Hardness
- Up to 100 kRad
About
The Lusospace MTQ400 magnetorquer is a passive magnetic system used for attitude and control (AOCS) purposes in medium to large size satellites. Its functions include detumbling, stabilization, and reaction wheel unloading. The magnetorquer generates a magnetic field that interacts with the Earth’s magnetic field, providing a control torque for the spacecraft. A key feature of the MTQ400 is its demisable design. Unlike typical magnetorquers with magnetic cores above 3.5 kg that tend to survive re-entry due to shielding, Lusospace developed this solution to meet the identified need for demisability for recurrent actuators. The MTQ400 was developed specifically for space applications and has achieved a Technology Readiness Level (TRL) of 6 according to ECSS (ESA) standards. Its design is free from any non-EU export restrictions, including ITAR and EAR.
