About PicoSaTs

PicoSaTs is an Italian company based in the Friuli Venezia Giulia region, developing and manufacturing miniaturized radio frequency transponders and antenna systems for small satellites and CubeSats. The company's product line covers K-band, Ka-band, and Ku-band communications hardware engineered for the power, mass, and volume constraints of nanosatellite missions.

The core product range includes integrated transponders combining up- and downlink functions in a single compact unit, and Ka-band horn antennas for high-gain ground communications. PicoSaTs targets commercial Earth observation operators, scientific CubeSat developers, and research institutions requiring flight-heritage RF components in standardized small satellite form factors.

All products are designed for flight qualification in accordance with European space standards and manufactured in Italy under EU VAT registration IT 01253470320.

Photos 3

Products

8

High-gain 8x8 K-band patch antenna of 135 g occupying under 1U of surface, with 22 dBi peak gain.

1 8

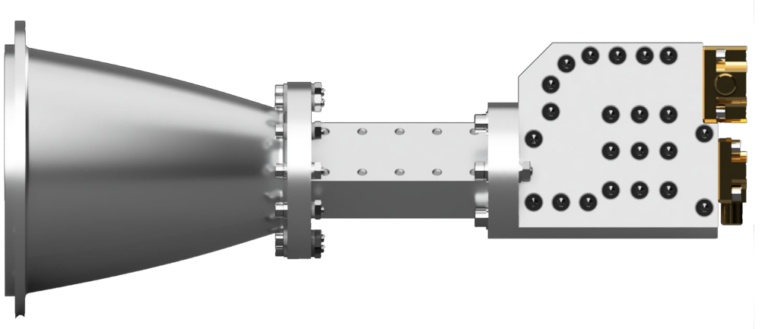

Dual-band dual-polarization high-gain horn antenna for LEO and GEO, under 2U and 569 g, 21.5 dBi in K-band and 24.5 dBi in Ka-band.

1 11

Dual-band linear-polarization Ku horn antenna for LEO and GEO, under 2U and 633 g, 16.2 dBi peak gain.

1 10

High-gain 4x4 X-band patch antenna of 100 g occupying under 1U of surface, with 17.1 dBi peak gain.

1 8

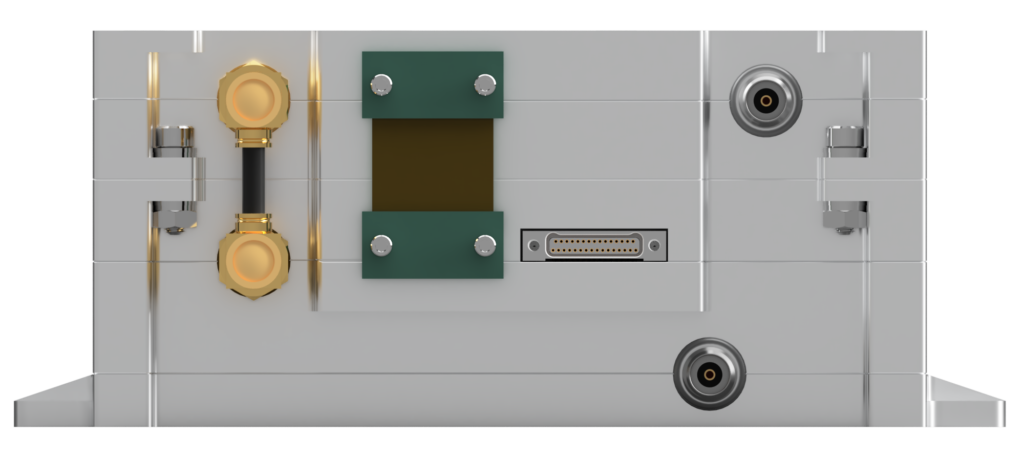

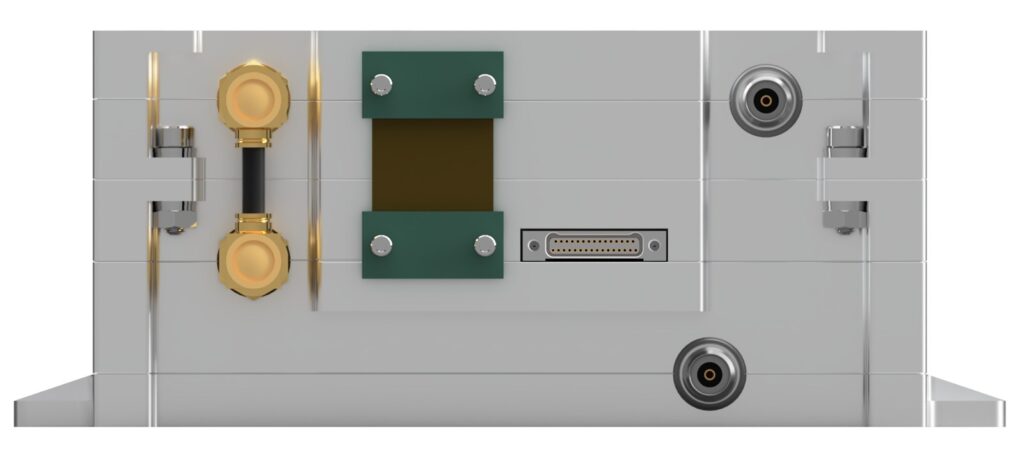

Miniaturized 0.5U non-regenerative bent-pipe K/Ka-band transponder, 700 g, up to 5 W RF, bandwidth customizable from 400 kHz to 500 MHz.

1 13

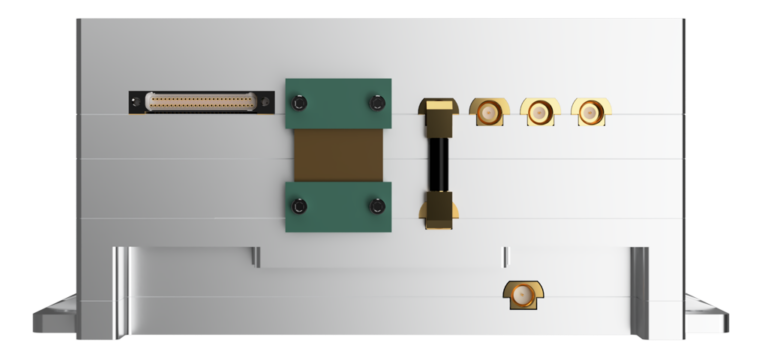

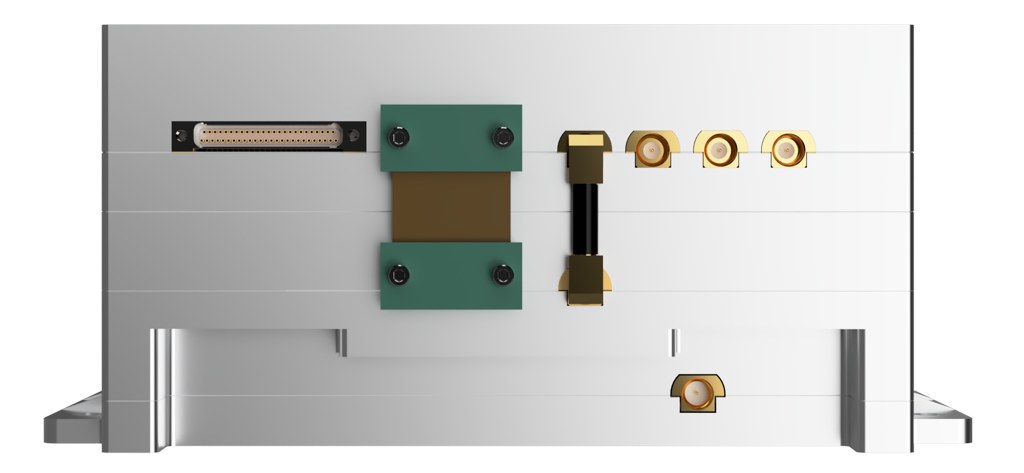

Sub-0.5U Ka-band downlink transmitter under 500 g reaching 4 Gbps, DVB-S2X with ACM up to 256 APSK.

1 11

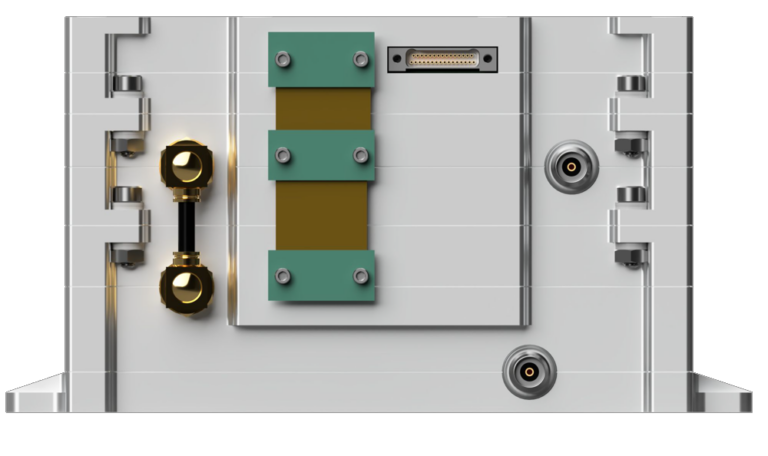

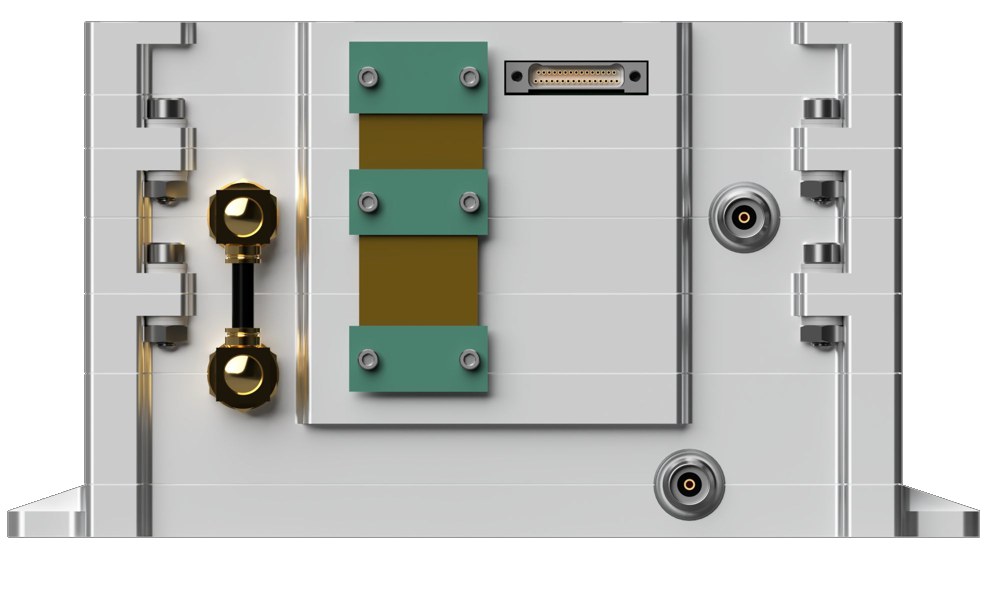

Miniaturized Ku-band bent-pipe transponder with dual selectable uplink bands, up to 5 W RF and customizable 400 kHz to 200 MHz bandwidth.

1 11

Sub-0.5U modem/SDR under 500 g with 300 MHz to 7 GHz tuning, up to 4 Gbps transmit and 1 Gbps receive.

1 12
