BEAMSAT K-Band Patch Antenna
PicoSaTs

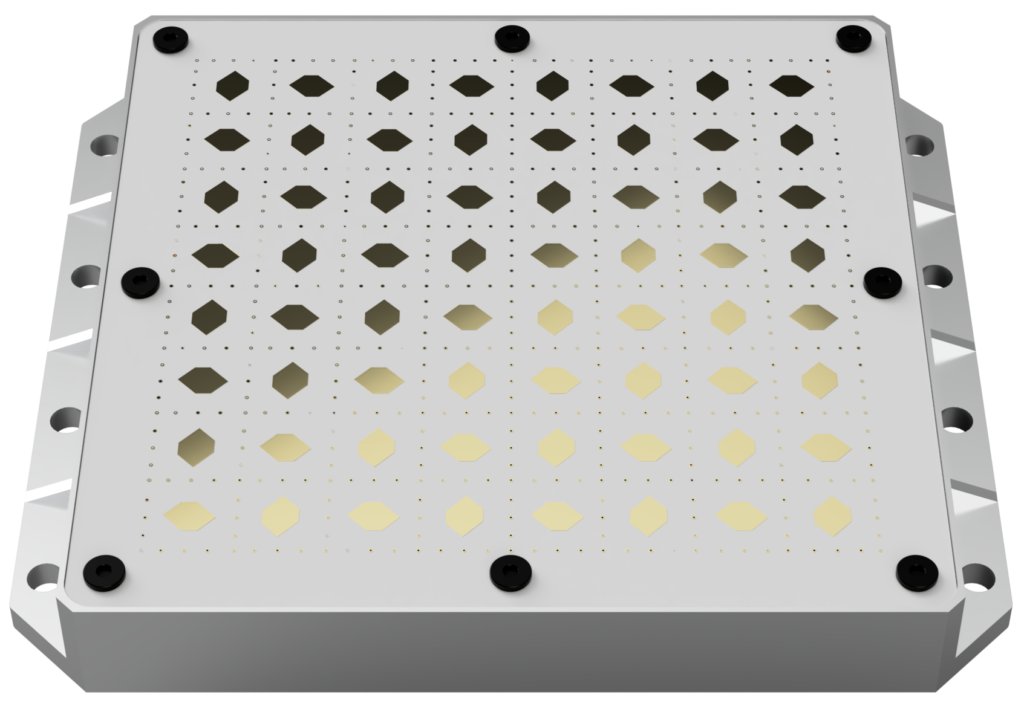

High-gain 8x8 K-band patch antenna of 135 g occupying under 1U of surface, with 22 dBi peak gain.
Typed specifications9 values
Discloses 7 of 10 fields engineers filter by in this category (category median 3).
- Frequency band
- K datasheet p.1
- Peak gain
- 22 dBi datasheet p.2
- Mass
- 135 g with enclosure · datasheet p.2
- Frequency range
- 17 300–21 200 MHz datasheet p.2
- Beamwidth (-3 dB)
- 10.2 ° datasheet p.2
- Envelope (L×W×H)
- 110.0 mm x 96.0 mm x 14.0 mm with enclosure · datasheet p.2
- Polarization
- LHCP datasheet p.2
- Antenna type
- patch datasheet p.1
- Connector
- SMP datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier8 lines, in the manufacturer's own wording
- Frequency
- 17.3 - 21.2 GHz
- Peak gain
- 22 dBi
- Array
- 8 x 8 patch
- Input matching
- < -15 dB
- Axial ratio
- < 2 dB
- Polarization
- LHCP
- Mass
- 135 g (with enclosure)
- Volume
- 110.0 x 96.0 x 14.0 mm (with enclosure)
About
The high-gain K-band 8×8 patch antenna is designed for nano, micro and small satellites. It can be supplied with or without an enclosure, weighing 135 g with enclosure, and occupies less than 1 U of the satellite external structure surface.
Its peak gain of 22 dBi and its compact design make it ideal for a wide range of missions, ensuring high data rate transmission with no compromises.
Applications: LEO Earth observation data downlink, CubeSat and SmallSat telemetry.
