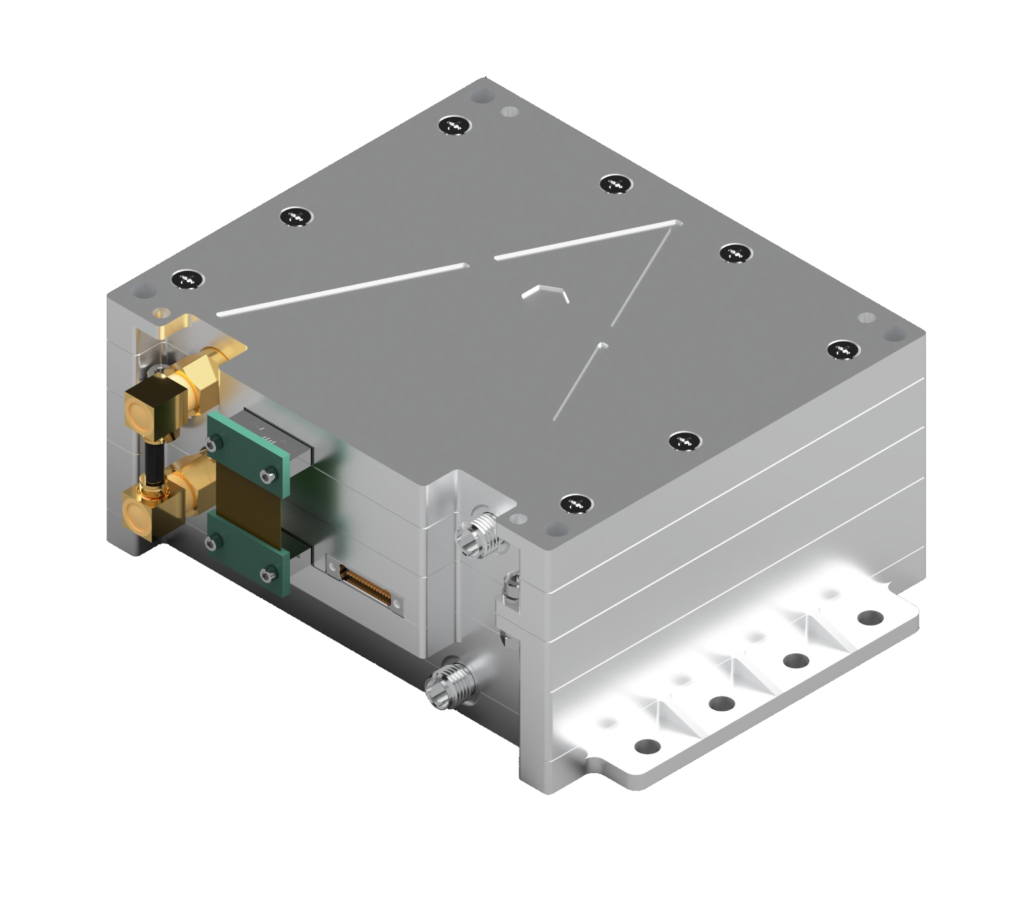

RADIOSAT K/Ka-Band Transponder
PicoSaTs
Miniaturized 0.5U non-regenerative bent-pipe K/Ka-band transponder, 700 g, up to 5 W RF, bandwidth customizable from 400 kHz to 500 MHz.
Typed specifications33 values
Discloses 4 of 13 fields engineers filter by in this category (category median 3).
- Frequency band
- Ka Downlink · datasheet p.2 K K/Ka-band | Ka Uplink | Ka K/Ka-band
- Mass
- 700 g datasheet p.2
- Frequency range
- 17 800–20 200 MHz downlink · datasheet p.2 27 600–30 000 MHz uplink
- Envelope (L×W×H)
- 93.5 x 114.2 x 45.6 mm datasheet p.2
- TX RF output power
- 5 W RF output · datasheet p.2 5 W max | 5 W max · RF output power up to
- Supply voltage
- 12–24 V input · datasheet p.2
- Power consumption
- 40 W max · datasheet p.2 40 W max · < 40 W
- Data interface
- RS232 additional control · datasheet p.2 RS422 telemetry and control
- Operating temperature
- -20–70 °C datasheet p.2
- Function
- transceiver datasheet p.1 transponder non-regenerative bent-pipe; optional CW beacon mode
- RF connector
- 2.92 mm datasheet p.2
- Connector
- 2.92 mm RF connectors datasheet p.2 Space qualified data and power connectors
- Survival temperature
- -30–90 °C non-operating · datasheet p.2
- Satellite class
- CubeSat datasheet p.1 GEO LEO and GEO applications | microsat 10-100 kg
- Channel bandwidth
- 20 000 kHz nom. · default · datasheet p.2 400 kHz customizable bandwidth | 20 000 kHz default bandwidth | 400 kHz min · customizable | 500 000 kHz max · customizable +1
- Noise figure
- 3 dB receiver · datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier13 lines, in the manufacturer's own wording
- Downlink
- 17.8 - 20.2 GHz
- Uplink
- 27.6 - 30.0 GHz
- Bandwidth
- Customizable from 400 kHz to 500 MHz (20 MHz default)
- RF output power
- Up to 5 W
- Receiver noise figure
- 3 dB
- Gain control
- 60 dB range; Fixed Gain Mode (FGM) and Automatic Gain Control (AGC)
- Volume
- 0.5 U
- Mass
- 700 g
- Power consumption
- < 40 W
- Input supply
- 12 V to 24 V
- Interfaces
- 2.92 mm RF connectors; space qualified data and power connectors; telemetry and control over RS422; additional control over RS232
- Operating temperature
- -20 C to +70 C (non-operating -30 C to +90 C)
- Qualification
- Vibration and TVAC qualified by ECSS-E-ST-10-03C
About
A miniaturized non-regenerative bent-pipe transponder designed for CubeSat and small satellites for LEO and GEO applications. With a volume of 0.5 U and a mass of 700 g, the transponder operates in K/Ka-band and is characterized by high performance and low power consumption.
The transponder analog bandwidth can be customized from 400 kHz to 500 MHz. The receiver and transmitter can be tuned independently and the gain can be set in a 60 dB range as fixed (FGM) or adaptive with automatic gain control mode (AGC). The transponder offers a versatile CW beacon mode as an option.
Applications: LEO small satellite services and GEO satellite services. Additional features include in-orbit firmware updating and an optional programmable oscillator frequency correction.
