BEAMSAT X-Band Patch Antenna
PicoSaTs
High-gain 4x4 X-band patch antenna of 100 g occupying under 1U of surface, with 17.1 dBi peak gain.
Typed specifications15 values
Discloses 7 of 10 fields engineers filter by in this category (category median 3).
- Frequency band
- X datasheet p.0
- Peak gain
- 17.1 dBi datasheet p.0 17.1 dBi peak gain
- Mass
- 100 g with enclosure · datasheet p.0
- Frequency range
- 8 025–8 400 MHz datasheet p.0
- Beamwidth (-3 dB)
- 22.6 ° datasheet p.0 22.6 ° HPBW
- Envelope (L×W×H)
- 98.0 mm x 98.0 mm x 10.8 mm (with enclosure) datasheet p.0
- Polarization
- RHCP datasheet p.0
- Antenna type
- patch datasheet p.0 patch array planar high-gain 4x4 patch antenna
- RF connector
- SMP datasheet p.2
- Connector
- SMP datasheet p.0
- Fits satellite size
- 1U datasheet p.0
- Axial ratio
- 1.5 dB max · datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier8 lines, in the manufacturer's own wording
- Frequency
- 8.025 - 8.4 GHz
- Peak gain
- 17.1 dBi
- Array
- 4 x 4 patch
- Input matching
- < -15 dB
- Axial ratio
- < 1.5 dB
- Polarization
- RHCP
- Mass
- 100 g (with enclosure)
- Volume
- 98.0 x 98.0 x 10.8 mm (with enclosure)
About

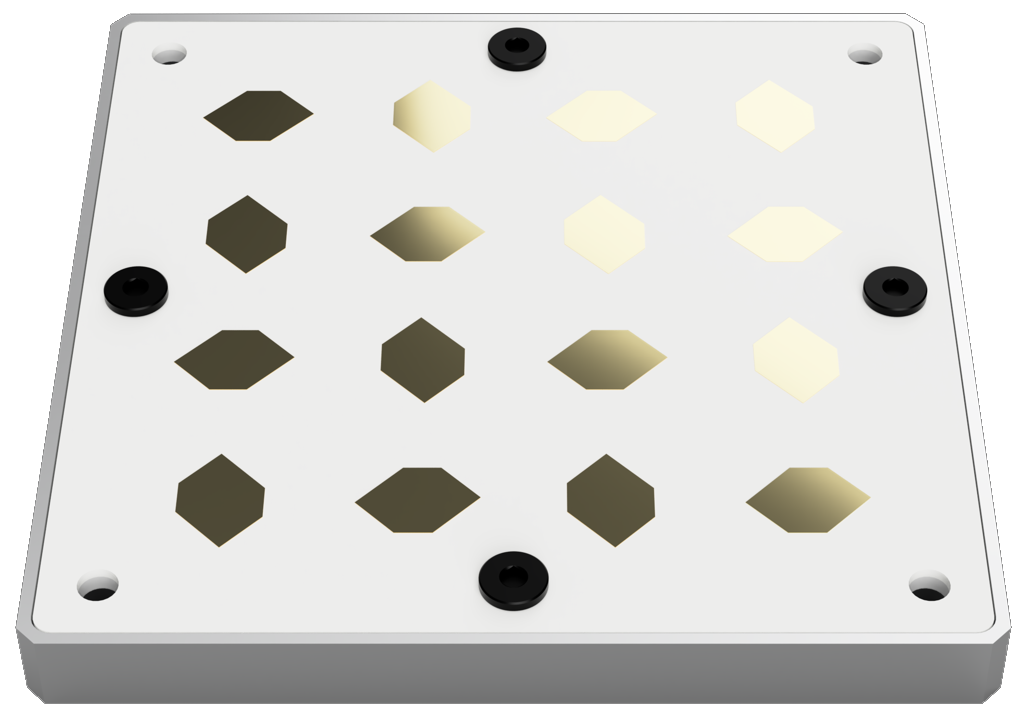

The high-gain X-band 4×4 patch antenna is designed for nano, micro and small satellites. It can be supplied with or without an enclosure, weighing 100 g with enclosure, offering a simple and efficient mounting solution to the satellite external structure and occupying less than 1 U of surface.
Its peak gain of 17 dBi and its compact design make it ideal for a wide range of missions, ensuring high data rate transmission with no compromises.
Applications: LEO Earth observation data downlink, CubeSat and SmallSat telemetry.
