Structures & Mechanisms — Space Hardware Marketplace

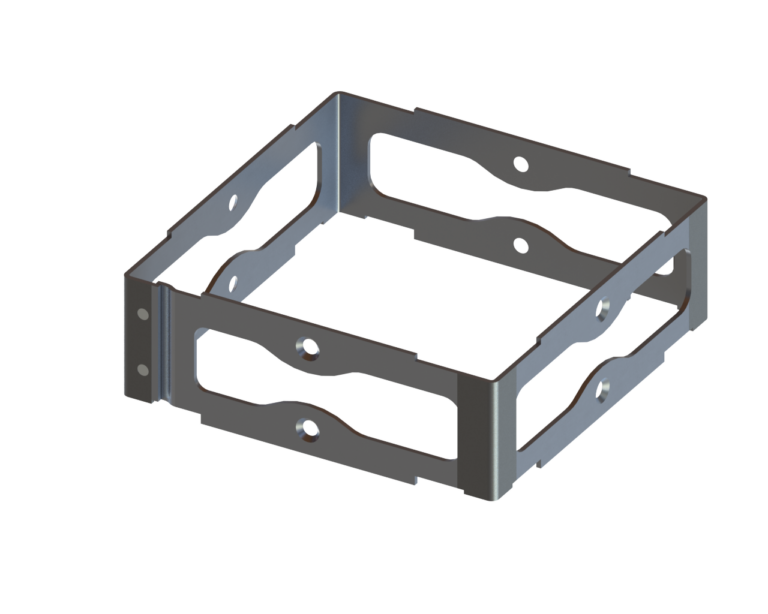

ADACS Payload Walls / 1U Chassis MAI-100/MAI-200 Extension

• SKU703-00397
• StatusFlight Hardware | Flight Qualified | Space Proven
• Flight HeritageJPL/Stanford LMRST-Sat 3U mission

CubeSat Kit structural walls that extend an MAI-100/200 ADCS unit into a 1U chassis section, enabling integration into…

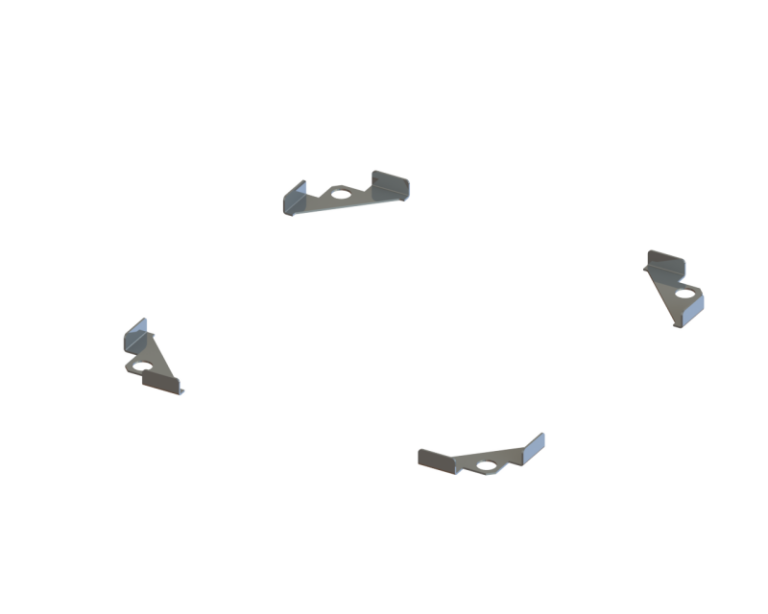

Solar Panel Clips Set for AntS antenna

• Thickness0.031"/0.8 mm
• Thickness0.062"/1.6 mm

A set of clips designed to secure solar panels to the ISIS Antenna System (AntS) on CubeSats.

CubeSat Kit™ Base Plate Assembly for AntS Antenna

• Configuration option: Separation SwitchDual
• MaterialAl 5052-H32, plated per CubeSat Design Specification (CDS)
• Mounting fasteners (to Chassis Walls)6x M3 flathead stainless-steel screws

A base-plate assembly variant configured to mount a third-party AntS deployable antenna system, with dual independent separation switches,…

CubeSat Kit™ Cover Plate Assembly for AntS antenna

• Configuration option: Separation SwitchNone, Dual
• Antenna compatibilityThird-party AntS deployable antenna system
• Antenna mounting fasteners4x threaded fasteners

A cover-plate assembly variant configured to mount a third-party AntS deployable antenna system, with dual independent separation switches,…

CubeSat Kit™ Pro Chassis Walls

• Configuration option: Size0.5U, 1U, 1.5U, 2U, 3U
• Product tierPro (premium variant of CubeSat Kit Chassis Walls)

The premium, higher-specification tier of Pumpkin's flight-proven one-piece sheet-metal CubeSat structural element, offered in 0.5U-3U sizes as Flight…

CubeSat Kit™ Large Aperture Cover Plate Assembly

• Configuration option: Separation SwitchNone, Dual
• MaterialAl 5052-H32, plated per CubeSat Design Specification (CDS)
• Mounting fasteners4x M3 flathead stainless-steel screws

A CDS-compliant cover-plate assembly with an 88mm-diameter central cutout for payload-end apertures such as optics or antennas, with…

CubeSat Kit™ Payload Cover Plate Assembly

• MaterialAl 5052-H32, plated per CubeSat Design Specification (CDS)
• Payload mountingM3 bolt square pattern
• Corner feet4 (included)

A CDS-compliant cover-plate assembly with four corner feet used on the payload end of a CubeSat Kit structure…

CubeSat Kit™ Payload Adapter Plate

• MaterialAl 5052-H32, plated per CubeSat Design Specification (CDS)
• Mounting fasteners (to Chassis Walls)4x M3 flathead stainless-steel screws
• Payload mountingM3 bolt square pattern

A bulkhead plate used on the payload end of a CubeSat Kit structure to interface Pumpkin's sheet-metal Chassis…

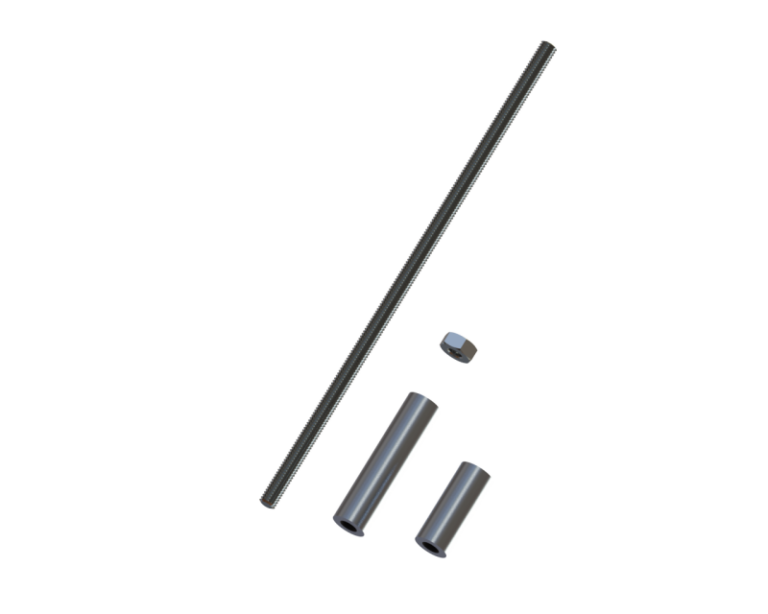

Rod & Spacer Kit

A kit containing threaded rods and coaxial aluminum through-hole spacers designed to physically retain CubeSat Kit™ modules in…

Mid-plane Standoff Kit

• Kit contents4 unique precision hard-anodized aluminum pieces + fastening hardware
• FunctionCouples threaded-rod columns of module stack to Chassis Walls; restrains X/Y motion under vibration
• Compatible Chassis Walls sizes1U, 1.5U, 2U, 3U (pre-drilled mounting holes); usable in 1U when space permits

A hard-anodized aluminum standoff kit that couples the four threaded-rod columns of a CubeSat electronics module stack to…

Remove-Before-Flight (RBF) Bracket Kit

• MaterialAl 5052-H32, plated per CubeSat Design Specification (CDS)
• Compatible Chassis Walls sizes1.5U, 2U, 3U
• Mounting fasteners2x external M3 screws to Chassis Walls

A precision aluminum bracket used in 1.5U/2U/3U CubeSat Kit structures to support and guide the Remove-Before-Flight pin, power…

CubeSat Kit™ Base Plate Assembly

• Configuration option: TypeSolid-Wall, Skeletonized
• Configuration option: Separation SwitchSingle (deprecated), Dual
• MaterialAl 5052-H32, plated per CubeSat Design Specification (CDS)

A precision aluminum end-plate assembly that forms the Motherboard Module (MBM)/C&DH end of a CubeSat Kit structure, available…

CubeSat Kit™ Chassis Walls

• Configuration option: Size0.5U, 1U, 1.5U, 2U, 3U
• Configuration option: TypeSolid-Wall, Skeletonized
• MaterialAl 5052-H32, plated per CubeSat Design Specification (CDS)

Pumpkin's pioneering one-piece sheet-metal CubeSat structural element, available in 0.5U-3U sizes, that forms the primary chassis of a…

CubeSat Kit™ Cover Plate Assembly

• Configuration option: TypeSolid-Wall, Skeletonized
• MaterialAl 5052-H32, plated per CubeSat Design Specification (CDS)
• Mounting fasteners4x M3 flathead stainless-steel screws

A precision aluminum end-plate assembly that forms the payload end of a CubeSat Kit structure, secured to the…

CubeSat Kit Quad-switch Cover Plate Assembly

• MaterialAl 5052-H32, plated per CubeSat Design Specification (CDS)
• Mounting screwsFour M3 flathead stainless-steel screws
• Number of switchesFour independent separation/inhibit switches (3 usable on standard CubeSat Kit chassis; 4 on CubeSat Kit Pro)

A flight-qualified cover plate for CubeSat Kit structures permitting the use of up to four separation/inhibit switches, installable…

6U CubeSat Display Model

• Dimensionsapproximately 360.5 mm x 200 mm x 100 mm
• Form factor6U tabbed CubeSat
• Compatible dispensersRocket Lab CSD 6U, Maverick Space Systems (MSS) Mercury-6, and similar

A full-size (approximately 360.5mm x 200mm x 100mm) plastic display model of a 6U tabbed CubeSat compatible with…

3U CubeSat Display Model

• Dimensions340.5 mm x 100 mm x 100 mm
• Form factor3U CubeSat (per CubeSat Design Specification)
• ConstructionOne-piece plastic model, not intended to be disassembled

A full-size (340.5mm x 100mm x 100mm) plastic display model of a 3U CubeSat following the CubeSat Design…

104-pin Bus Reversing Adapter

• Connector104-pin CubeSat bus, stackthrough on one side, standard header on reversed side
• All pins passed through104 of 104 pins routed straight through
• Included hardware3D-printed plastic support arms, miscellaneous M3 fasteners

A development tool that allows a CubeSat Kit-compatible module to be installed upside-down on the 104-pin CubeSat bus,…
