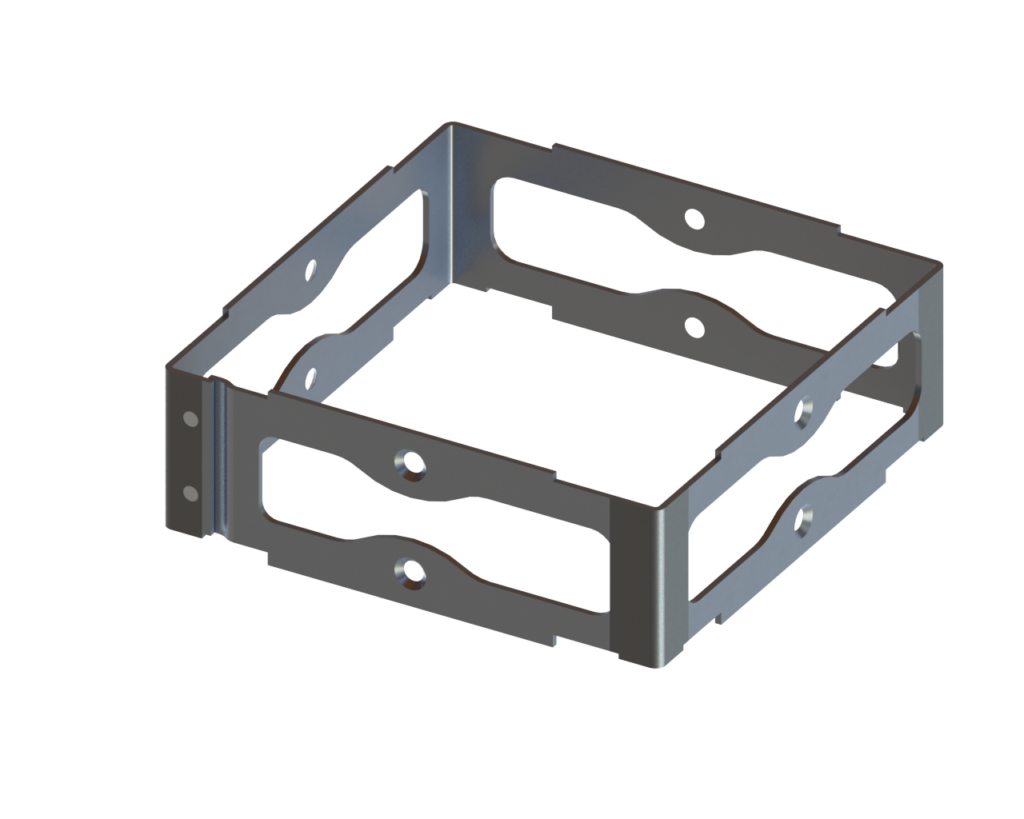

ADACS Payload Walls / 1U Chassis MAI-100/MAI-200 Extension
Pumpkin, Inc.
CubeSat Kit structural walls that extend an MAI-100/200 ADCS unit into a 1U chassis section, enabling integration into larger multi-unit CubeSat structures.
Typed specifications4 values
Discloses 1 of 11 fields engineers filter by in this category (category median 1).
- Mass
- 34 g product page
- Operating temperature
- -40–85 °C product page
- Connector
- 2.54 mm product page
- Flight heritage
- JPL/Stanford LMRST-Sat 3U mission product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier12 lines, in the manufacturer's own wording
- SKU
- 703-00397
- Price
- $1,610.00 per item
- Status
- Flight Hardware | Flight Qualified | Space Proven
- Flight heritage
- JPL/Stanford LMRST-Sat 3U mission
- Operating temperature
- -40 to +85 °C
- Mass
- 34 g
- Height of components above PCB
- 11 mm
- Height of components below PCB
- 3.5 mm
- PCB width
- 96 mm
- PCB length
- 90 mm
- PCB thickness
- 1.6 mm
- Connector terminal pitch
- 2.54 mm
About
The ADACS Payload Walls / 1U Chassis MAI-100/MAI-200 Extension is a CubeSat Kit structural component from Pumpkin Space Systems designed to integrate a Maryland Aerospace MAI-100 or MAI-200 ADCS unit into a larger CubeSat structure. When used together with two Payload Adapter Plates and one Payload Cover Plate Assembly, these three pieces can be mounted on an MAI-100/200 ADCS along with a CubeSat Kit 1.5U Chassis Walls and Base Plate Assembly, resulting in an overall 3U-length CubeSat structure with the MAI-100/200 ADCS positioned roughly in the center. This configuration was used on the joint JPL/Stanford LMRST-Sat 3U mission, demonstrating flight heritage. The part can also be used for other 2U and 3U CubeSat configurations requiring integration of an MAI-100/200 ADCS unit. The product is listed as Flight Hardware, Flight Qualified, and Space Proven.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
