1P Skeleton Wall PocketQube Structure
Alba Orbital
A skeletonized aluminum structure designed for 1P PocketQube pico-satellites, featuring access points for internal electronics and compatibility with PQ60 v1.0 board stacks.
Typed specifications19 values
Discloses 6 of 11 fields engineers filter by in this category (category median 1).
- Mass
- 69 g datasheet p.3 69 g 1P, mass unaided
- Material (as printed)
- Al6082 T6 datasheet p.2 Al6082 T6 main structure, end plates, base plate/deployment tabs, angles | Steel
- Envelope (L×W×H)
- 1P (Unit) - 50 mm x 50 mm external dimensions. 47 mm x 47 mm internal dimensions (widest point) product page
- Operating temperature
- -50.2 °C min · datasheet p.4 89.9 °C max | -50.2–89.9 °C operational range
- Structure type
- PocketQube frame datasheet p.1
- Form factor
- PocketQube 1P datasheet p.1
- Material class
- aluminium 6082 datasheet p.2
- Free volume for payload and units
- 1.09 U datasheet p.3
- Max satellite mass supported
- 69 g datasheet p.3
- Random vibration
- 3.92 g RMS product page
- Flight heritage
- Earlier version has Flight Heritage product page
- Satellite class
- PocketQube datasheet p.1
- Quasi-static load
- 40 g static, >± 392.4 m/s2 (40g), three axes · datasheet p.3
- Deployment (kill) switches
- 2 Kill Switch X2 · datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier7 lines, in the manufacturer's own wording
- Dimensions
- 1P (Unit) - 50 mm x 50 mm external dimensions. 47 mm x 47 mm internal dimensions (widest point)
- Flight heritage
- Earlier version has Flight Heritage
- Mass
- 0.069 kg
- Internal volume
- 1.09 10-4 m3
- Static load
- >± 392.4 m/s2
- Sine Vibration
- 3.924 m/s2
- Operating temperature
- 223 – 363 K
About

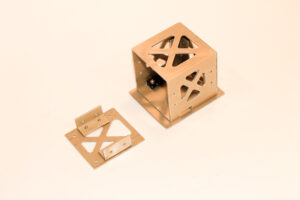

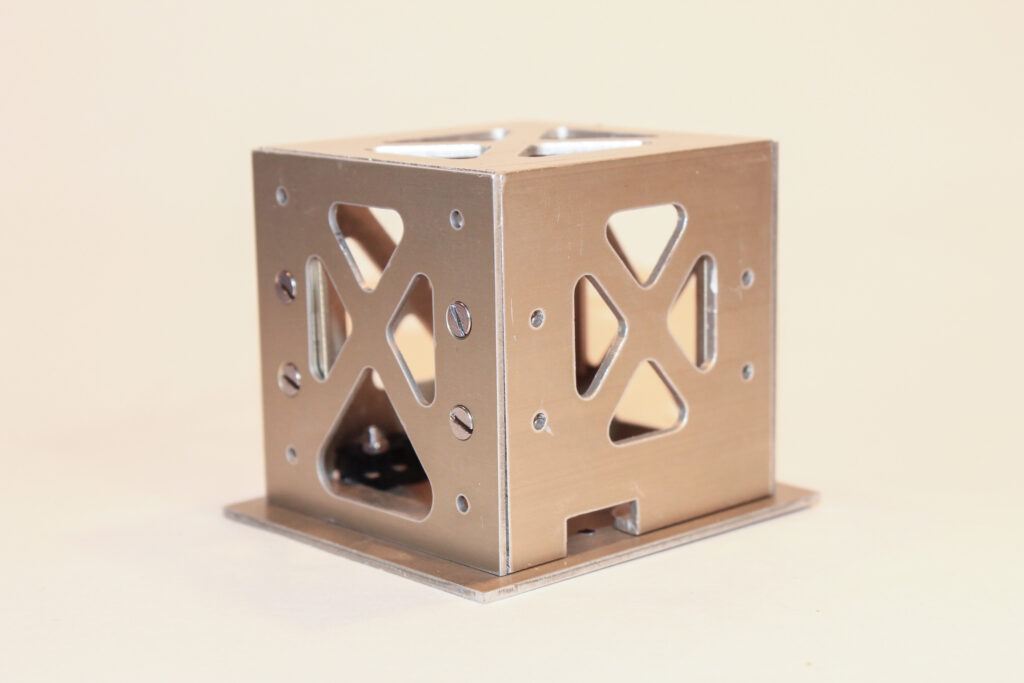

The 1P Skeleton Wall PocketQube Structure is an aerospace-grade aluminum structure with a plated finish, specifically designed for the PocketQube Standard (Pico-satellite class). It includes two micro-switches for double redundancy (kill switches) and two access points on the endplates, allowing access to internal electronics once assembled. The design facilitates access from almost any angle. An earlier version of this structure has flight heritage. The structure can accommodate a PQ60 v1.0 board stack. Custom solar panel mounting holes are available upon request, requiring a dimensioned drawing or CAD file from the customer, as the item does not ship with solar panel mounting holes as standard due to the current lack of PocketQube Panel products for sale.
