2P Skeleton Wall PocketQube Structure
Alba Orbital
A skeletonized wall structure designed for the PocketQube Standard (Pico-satellite class), made from aerospace-grade aluminum.
Typed specifications19 values
Discloses 6 of 11 fields engineers filter by in this category (category median 1).
- Mass
- 109 g datasheet p.2 109 g 2P, mass unaided
- Material (as printed)
- Al6082 T6 datasheet p.1 Al6082 T6 main structure, end plates, base plate/deployment tabs, angles | Steel
- Envelope (L×W×H)
- 2P (Unit) product page 114 mm x 50 mm x 50 mm | 114 mm x 47 mm x 47 mm
- Operating temperature
- -50.2–89.9 °C operational range · datasheet p.3
- Structure type
- PocketQube frame datasheet p.1
- Form factor
- PocketQube 2P datasheet p.1
- Material class
- aluminium 6082 datasheet p.2
- Free volume for payload and units
- 2.51 U datasheet p.3
- Max satellite mass supported
- 109 g datasheet p.3
- Random vibration
- 3.92 g RMS product page
- Flight heritage
- Earlier version has Flight Heritage product page
- Satellite class
- PocketQube datasheet p.1
- Quasi-static load
- 40 g static, >± 392.4 m/s2 (40g), three axes · datasheet p.3
- Deployment (kill) switches
- 2 Kill Switch X2 · datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier10 lines, in the manufacturer's own wording
- Dimensions
- 2P (Unit)
- External dimensions
- 114 mm x 50 mm x 50 mm
- Internal dimensions (widest point)
- 114 mm x 47 mm x 47 mm
- Manufacturer
- Alba Orbital
- Flight heritage
- Earlier version has Flight Heritage
- Mass
- 0.109 kg
- Volume
- 2.51 10-4 m3
- Static mechanical load
- >± 392.4 m/s2
- Sine vibration mechanical load
- 3.924 m/s2
- Operational temperature
- 223 – 363 K
About

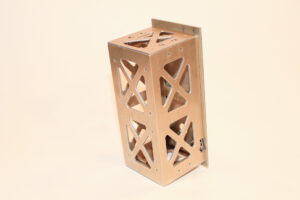

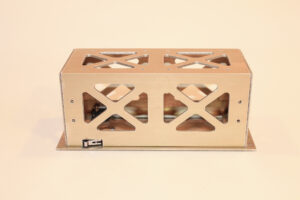

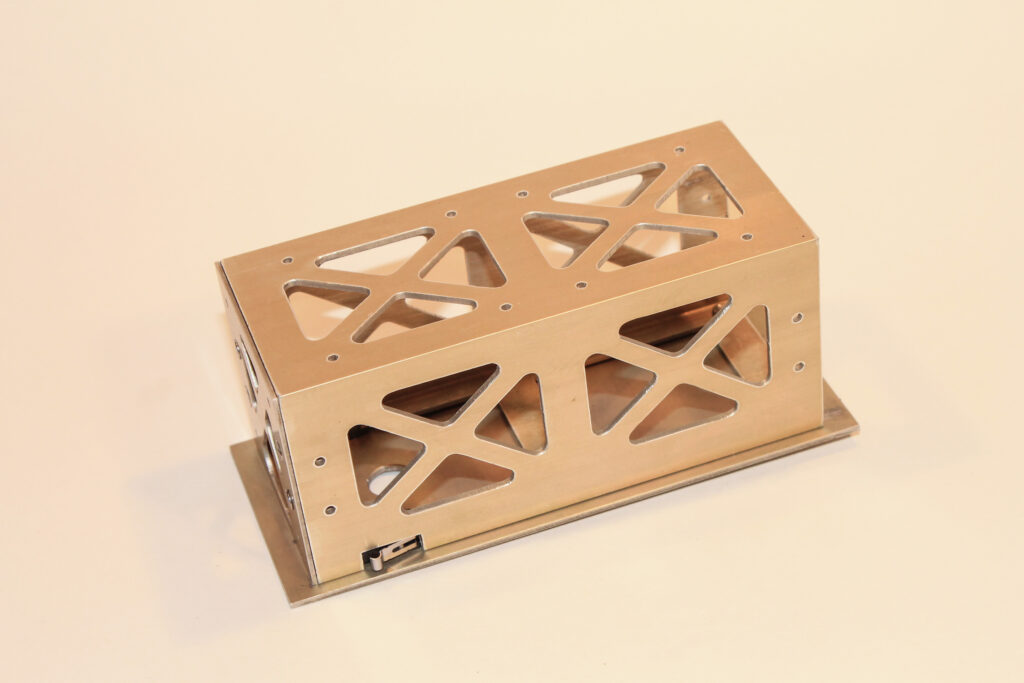

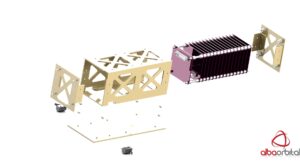

The 2P Skeleton Wall PocketQube Structure is a skeletonized wall design specifically for the PocketQube Standard (Pico-satellite class). It is constructed from aerospace-grade aluminum with a plated finish for flight models. The structure includes two micro-switches for double redundancy, acting as kill switches. It features two access points on the endplates, allowing access to internal electronics once assembled, and is designed for access from almost any angle. An earlier version of this structure has flight heritage. It can accommodate the PQ60 v1.0 board stack. Custom solar panel mounting holes are available upon request, requiring a dimensioned drawing or CAD file, as the item does not ship with solar panel mounting holes as standard due to the current lack of PocketQube Panel products for sale.
