3P Skeleton Wall PocketQube Structure
Alba Orbital

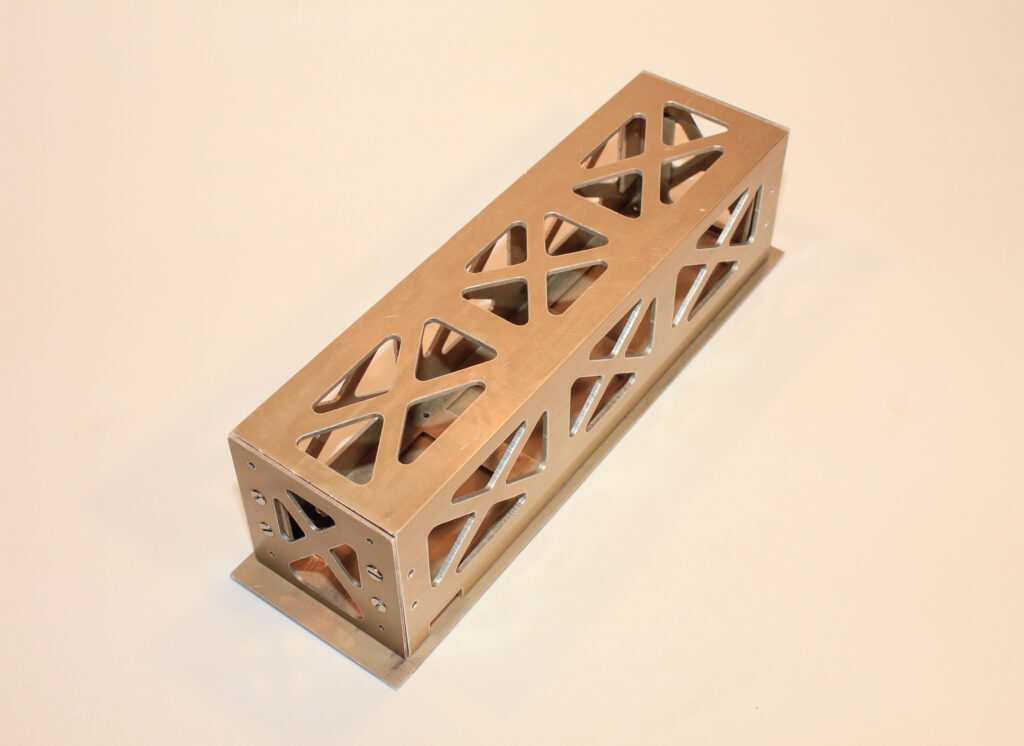

The 3P Skeleton Wall PocketQube Structure is an aerospace-grade aluminum structure designed for the PocketQube Standard (Pico-satellite class), featuring double redundancy kill switches and easy access to internal electronics.
Typed specifications22 values
Discloses 6 of 11 fields engineers filter by in this category (category median 1).
- Mass
- 151 g datasheet p.3 151 g 3P, mass unaided
- Material (as printed)
- Al6082 T6 datasheet p.2 Al6082 T6 main structure, end plates, base plate/deployment tabs, angles | Steel
- Envelope (L×W×H)
- 3P (Unit) product page 178 mm x 50 mm x 50 mm | 178 mm x 47 mm x 47 mm
- Operating temperature
- -50.2 °C min · datasheet p.4 89.9 °C max | -50.2–89.9 °C operational range
- Structure type
- PocketQube frame datasheet p.1
- Form factor
- PocketQube 3P datasheet p.1
- Material class
- aluminium 6082 datasheet p.2
- Free volume for payload and units
- 3.79 U datasheet p.3
- Max satellite mass supported
- 151 g datasheet p.3
- Random vibration
- 3.92 g RMS product page
- Flight heritage
- Earlier version has Flight Heritage product page
- Satellite class
- PocketQube datasheet p.1
- Quasi-static load
- 40 g static, >± 392.4 m/s2 (40g), three axes · datasheet p.3
- Shock qualification
- Pass datasheet p.4
- Deployment (kill) switches
- 2 Kill Switch X2 · datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier12 lines, in the manufacturer's own wording
- Dimensions
- 3P (Unit)
- External dimensions
- 178 mm x 50 mm x 50 mm
- Internal dimensions (widest point)
- 178 mm x 47 mm x 47 mm
- Manufacturer
- Alba Orbital
- Lead time
- 8 weeks depending on available stock levels (much sooner if in stock)
- Flight heritage
- Earlier version has Flight Heritage
- Mass
- 0.151 kg
- Volume
- 3.79 10-4 m3
- Static mechanical load
- >± 392.4 m/s2
- Sine vibration mechanical load
- 3.924 m/s2
- Frequency
- 5-100 Hz
- Operating temperature
- 223 – 363 K
About

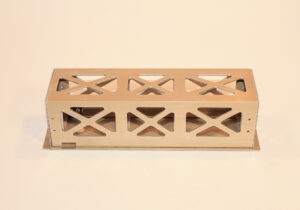

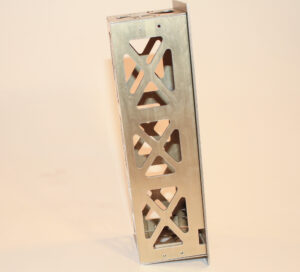

The 3P Skeleton Wall PocketQube Structure is an aerospace-grade aluminum structure with a plated finish, specifically designed for the PocketQube Standard (Pico-satellite class). It incorporates two micro-switches for double redundancy, acting as kill switches. The design includes two access points on the endplates, allowing access to internal electronics once assembled, and is engineered for access from almost any angle. An earlier version of this structure has flight heritage. The structure can accommodate the PQ60 v1.0 board stack. Custom solar panel mounting holes are available upon request, requiring a dimensioned drawing or CAD file from the customer, as the item does not ship with solar panel mounting holes as standard due to the current lack of PocketQube Panel products for sale.
