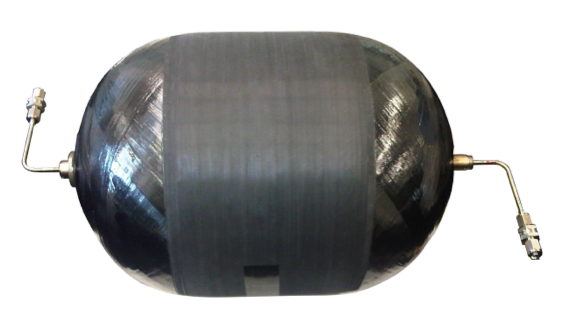

60l S-XTA Xenon (Xe)
MT Aerospace
The 60l S-XTA Xenon (Xe) is a high-pressure vessel designed for storing Xenon, suitable for electric propulsion applications.
Typed specifications17 values
Discloses 6 of 9 fields engineers filter by in this category (category median 3).
- Mass
- 11.7 kg tank dry mass (printed 11,7 kg) · datasheet p.1
- Volume
- 60 L total volume · datasheet p.1
- Envelope (L×W×H)
- diameter 440 mm x length 790,0 mm datasheet p.1
- Max operating pressure (MEOP)
- 187 bar MEOP · datasheet p.1
- Media / propellant
- xenon datasheet p.1
- Material (wetted or shell)
- carbon-fibre composite (COPV) overwrapped: epoxy-based CFRP / T800 · datasheet p.1 titanium (Ti-6Al-4V) shell | other tube: Ti-3Al-2.5V
- Operating temperature
- 65 °C max · temperature range: up to 65 °C · datasheet p.1 4–50 °C
- Component
- tank datasheet p.1
- Propellant management
- none (gas or blow-down) xenon storage tank · datasheet p.1
- Tank mounting
- polar bosses mounting interface: polar · datasheet p.1
- Flight heritage
- SGEO, AMOS 6 datasheet p.1
- Proof pressure
- 233.8 bar x 1,25 (printed 233,8 bar) · datasheet p.1
- Burst pressure
- 456 bar burst pressure tested (printed 456,0 bar) · datasheet p.1 280.5 bar x 1,50 (printed 280,5 bar)
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier3 lines, in the manufacturer's own wording
- Capacity
- 60l
- Propellant
- Xenon (Xe)
- Type
- High Pressure Vessel (HPV)
About
MT Aerospace offers a range of High Pressure Vessels (HPV) for various gases including Helium, Nitrogen, and Xenon. The 60l S-XTA Xenon (Xe) tank is part of this product line, specifically designed for Xenon storage. These tanks are available as Commercial Off-The-Shelf (COTS) products, indicating their readiness for integration into space systems. The S-XTA family of Xenon HPVs is also available in other capacities, ranging from 40l to 120l, catering to different mission requirements for electric propulsion systems. MT Aerospace also develops new tanks, including High Pressure Vessels (HPV) for Electric Propulsion (EP) – XTA – Xenon, with families ranging from 1l-7l (XS-XTA), 40l-120l (S-XTA), 120l-300l (M-XTA), and 300l-500l (L-XTA).
Documentation
- S-XTA-60.pdf PDF source: www.mt-aerospace.de ↗
- Datenblatt_PTD-222.pdf PDF source: www.mt-aerospace.de ↗
- Datenblatt_S-XTA-60.pdf PDF source: www.mt-aerospace.de ↗
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
