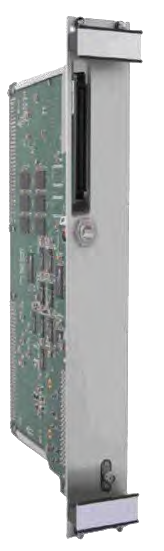

DR068-M1 Digitising Receiver
Teledyne Defence & Space
The DR068-M1 is a 2–18 GHz Digitising Receiver from Teledyne Defence & Space that combines a broadband frequency measurement receiver with a high dynamic range successive detection log video amplifier (SDLVA) to deliver high probability-of-intercept (POI) functionality across the full 2–18 GHz band. The system employs digital signal processing to extract comprehensive pulse parameters from […]
Technical specifications
- Model
- DR068-M1
- Frequency Range
- 2–18 GHz
- Output Interface
- Gigabit Ethernet (low latency)
- Output Format
- Pulse Descriptor Word (PDW)
- Key Feature
- High probability of intercept (POI)
- Applications
- ESM, ELINT, EW, space SIGINT payloads
About
The DR068-M1 is a 2–18 GHz Digitising Receiver from Teledyne Defence & Space that combines a broadband frequency measurement receiver with a high dynamic range successive detection log video amplifier (SDLVA) to deliver high probability-of-intercept (POI) functionality across the full 2–18 GHz band. The system employs digital signal processing to extract comprehensive pulse parameters from intercepted signals, packaged into Pulse Descriptor Word (PDW) format and transmitted via low-latency Gigabit Ethernet for integration with host EW processing systems. The design integrates wideband high-POI pulse detection with minimal external integration requirements, making it a compact plug-and-play digital receiver solution suited to airborne and shipborne ESM systems and space-based ELINT collection payloads.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
