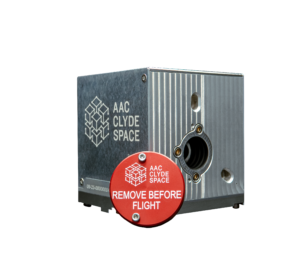

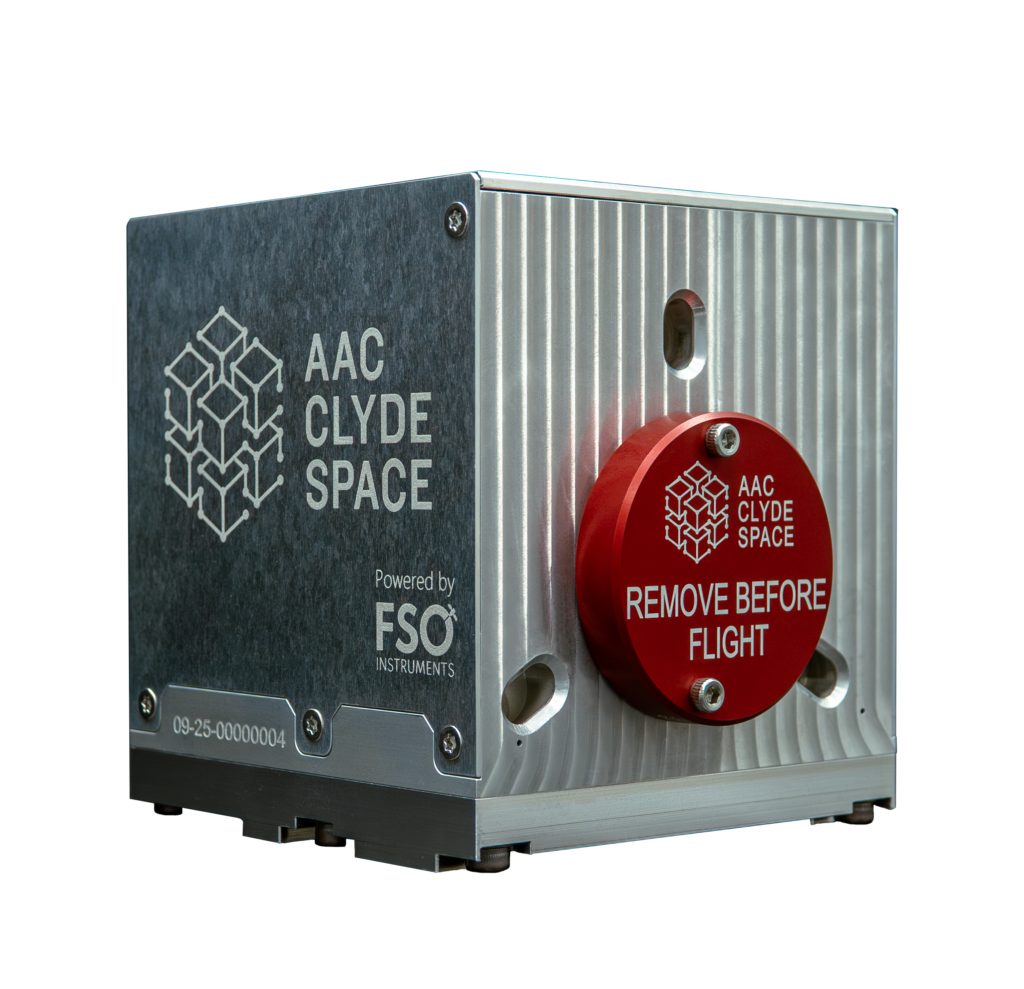

CubeCAT
AAC Clyde Space
The CubeCAT is a nanosatellite polarized S-band antenna designed for high performance and easy system integration, featuring a small size, low profile, rugged design, and high directionality.
Typed specifications9 values
Discloses 1 of 10 fields engineers filter by in this category (category median 3).
- Mass
- 1 330 g max · datasheet p.2
- Envelope (L×W×H)
- ~100 x 100 x 20 mm product page
- Supply voltage
- 5 V product page
- Power consumption
- 33–154 W total, typical · datasheet p.2
- Data interface
- RS-422 to Cubesat · datasheet p.1
- Operating temperature
- -20 °C product page
- Radiation tolerance (TID)
- 10 krad product page
- TRL
- 8 product page
- Export status
- ITAR-free datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier15 lines, in the manufacturer's own wording
- Tx frequency
- 2200-2290 MHz (S-band downlink)
- Rx frequency
- 2025-2120 MHz (S-band uplink)
- Tx output power
- Up to 1 W
- Data rate (downlink)
- Up to 4 Mbps
- Modulation
- BPSK, QPSK
- Interface
- RS-422 / SpaceWire
- Supply voltage
- 5 V
- Power consumption (TX)
- ~6 W
- Power consumption (RX)
- ~1 W
- Operating temperature
- -20°C to +60°C
- Mass
- ~180 g
- Dimensions
- ~100 x 100 x 20 mm
- Radiation tolerance
- 10 KRad
- TRL level
- 8
- Protocol support
- CCSDS framing
About
The AAC SpaceQuest developed AC-2000 nanosatellite polarized S-band antenna, known as CubeCAT, has been engineered with a focus on high performance and seamless system integration. Its compact size, low-profile design, robust construction, and high directionality make it an excellent addition to satellite communication systems. The antenna is specifically designed for nanosatellites and is space-qualified, ensuring reliability and functionality in the harsh space environment. While the page lists several other communication products from AAC Clyde Space, the CubeCAT itself is highlighted for its specific attributes as an S-band antenna.
