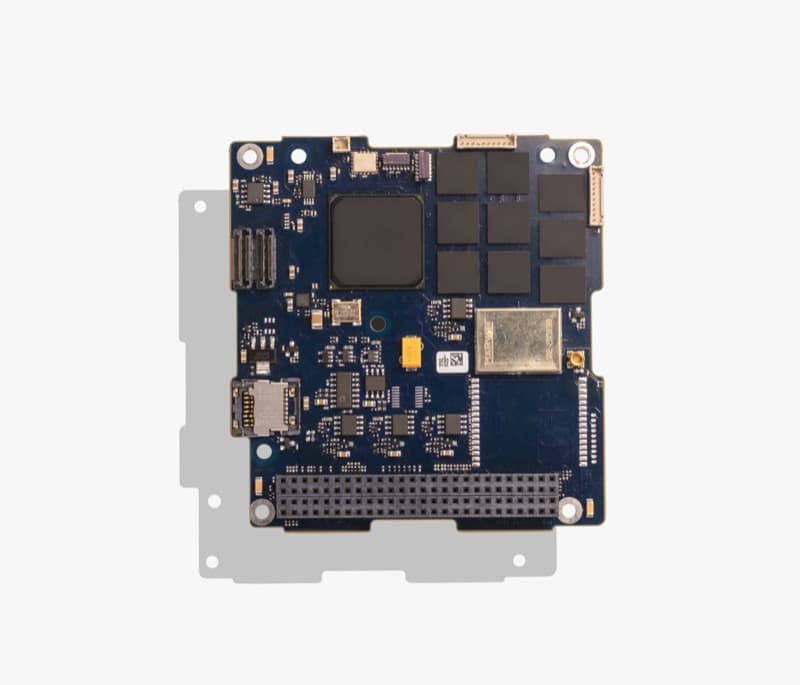

Kryten-M3 & Kryten-M3 PLUS
AAC Clyde Space
The Kryten-M3 and Kryten-M3 PLUS are command and data handling solutions designed for price-sensitive commercial missions requiring reliable and qualified solutions.
Typed specifications54 values
Discloses 10 of 13 fields engineers filter by in this category (category median 5).
- Processor
- Smart Fusion 2 SoC including an ARM Cortex-M3 processor datasheet p.2
- Mass
- 61.9 g datasheet p.2
- CPU clock
- 50 MHz datasheet p.2
- Envelope (L×W×H)
- 95.89 mm x 90.17 mm x 5.51 mm datasheet p.2 95.89 x 90.17 x 5.51 mm height from top PCB to lowest component
- RAM
- 16 MB datasheet p.2 16 MB MRAM
- Mass storage
- 4 GB datasheet p.1 4 GB SLC flash, bulk data storage
- Power consumption
- 0.4 W Nominal · datasheet p.2 1 W max | 1 W max | 0.4 W nom. · typ
- Data interface
- I2C datasheet p.2 GPIO 17x, 3.3 V logic | RS-422 1x | SPI 1x, 7 chip select lines | LVDS 20x lines, expansion +16
- Operating temperature
- -40 °C min · datasheet p.2 80 °C max | -40–80 °C
- Radiation tolerance (TID)
- 20 krad datasheet p.2
- Design lifetime
- 5 years datasheet p.2 5 years in LEO
- Processor architecture
- ARM Cortex-M ARM Cortex-M3 · datasheet p.2
- Board format
- 1U board 90x96 mm datasheet p.2
- Radiation and fault mitigation
- latch-up protection (current limiting) autonomous single event latch-up protection · datasheet p.1 EDAC / ECC on RAM EDAC protected memories and FIFOs | ECC on flash MRAM and Flash memories are protected via an EDAC mechanism | EDAC / ECC on RAM
- Flight heritage
- Flight proven across multiple mission applications for a range of customer requirements datasheet p.1
- Satellite class
- nanosat 1-10 kg for the most demanding nanosatellite missions · datasheet p.1
- FPGA
- SmartFusion 2 SoC datasheet p.2
- GPIO lines
- 17 3.3 V logic · datasheet p.2
- Performance
- 62.5 DMIPS datasheet p.2
- RAM type
- MRAM datasheet p.2
- Program / boot memory
- 0.25 MB eNVM, boot image storage · datasheet p.2 8 MB MRAM, boot image storage
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier16 lines, in the manufacturer's own wording
- Design life
- 5 years in LEO
- Processor
- SmartFusion2 SoC ARM Cortex-M3, 62.5 DMIPS
- Clock
- 50 MHz
- Mram
- 16 MB
- Radiation (TiD)
- 20 kRAD
- Power
- 400 mW typ, 1 W max
- Operating temperature
- -40 to +80 C
- I2C
- 2
- SPI
- 7 Chip Select Lines
- UART
- 8
- RS422
- 1
- CAN
- 1
- Gpio
- 17
- Mass
- 61.9 g
- Dimensions
- 95.89 x 90.17 x 5.51 mm
- GPS (PLUS model)
- <10m RMS position, <1m/s RMS velocity
About
The Kryten-M3 and Kryten-M3 PLUS are command and data handling (CDH) solutions developed to support price-sensitive commercial missions. These solutions are engineered to provide reliable and qualified performance, making them suitable for various aerospace applications. Their design emphasizes a small size, low mass, and efficient power consumption, which are critical factors for integration into space systems. While the provided text is brief, it highlights the core purpose of these units as essential components for managing commands and data within spacecraft, ensuring operational integrity for commercial ventures in space.
