MA61C SmallSat
Space Products and Innovation (SPiN)
Plug-and-play Command and Data Handling (C&DH) unit for small satellites, adding MIL-STD-1553 support for higher-complexity missions.
Typed specifications56 values
Discloses 7 of 13 fields engineers filter by in this category (category median 5).
- Processor
- GR712RC dual-core 32-bit LEON3 fault-tolerant SPARC V8 processor datasheet p.2
- Mass
- 435 g nom. · approx. · datasheet p.2 435 g approx.
- CPU clock
- 50 MHz datasheet p.2
- Envelope (L×W×H)
- 105 x 105 Size PCB, without casing · datasheet p.2 131 x 131 x 30 Size with casing | 131 mm x 131 mm x 30 mm with casing
- RAM
- 8 MB datasheet p.1 8 MB SRAM - 2 x 32 Mbit (onboard memory, p.2) | 10 MB SRAM (key features, p.1)
- Mass storage
- 0.063 GB datasheet p.1
- Supply voltage
- 5–24 V datasheet p.2 5–24 V +5V to 24V
- Data interface
- SpaceWire datasheet p.2 I2C 1 x I2C Master | JTAG 1 x JTAG | MIL-STD-1553 1 x MIL-STD-1553B (RT/BC/MT) | RS-485 1 x RS485 +14
- Operating temperature
- -40–85 °C datasheet p.2
- Processor architecture
- LEON / SPARC LEON3 SPARC V8 · datasheet p.2
- Board format
- custom datasheet p.2
- Connector
- 2 x SpaceWire micro-d 9 pins female; 2 x CAN-bus dsub9 male; 1 x MIL-STD-1553B dsub9 male; 5 x RS422 and 1 x RS485 mdm-25 female; 9 x GPIO, 16 Analogues mdm-37 male; 1 x power and 1 x JTAG dsub-9; 1 x I2C Master, 1 x SPI master, 6 x PWM mdm-15 male datasheet p.2 dsub9 male CAN-bus | mdm-37 male GPIO, Analogues | mdm-15 male I2C Master, SPI master, PWM | dsub9 male MIL-STD-1553B +3
- Satellite class
- smallsat 100-500 kg datasheet p.1
- Cores
- 2 dual-core · datasheet p.2
- GPIO lines
- 9 datasheet p.2
- RAM type
- SRAM datasheet p.2
- Program / boot memory
- 8 MB FLASH · datasheet p.2
- Data interface speed
- 10 Mbps nom. · SpaceWire nominal · datasheet p.2 1 Mbps CAN-bus | 1 Mbps Debug port | 0.4 Mbps max · I2C interface, up to | 10 Mbps max · RS422/RS485 interfaces, up to +2
- Analog inputs
- 16 16 Analogues · datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier9 lines, in the manufacturer's own wording
- Interfaces supported
- SpaceWire, MIL-STD-1553, I2C, SPI, CAN, RS422, RS485, GPIO
- Processor
- GR712RC dual-core 32-bit LEON3-FT SPARC V8
- Memory
- 64 Mbit SRAM, 64 Mbit FLASH
- Host interface
- USB (API + Windows GUI included)
- Supply voltage
- +5 V to 24 V
- Operating temperature
- -40 deg C to +85 deg C
- Dimensions
- PCB: 105 mm x 105 mm
- Dimensions (2)
- 131 mm x 131 mm x 30 mm
- Memory (2)
- FLASH - 64 Mbit
About
MA61C SmallSat is SPiN’s intelligent, plug-and-play Command and Data Handling unit sized for small-satellite platforms, which can also host the onboard software. Like the rest of the MA61C family, it automatically adapts between the communication interfaces and protocol standards of different subsystem suppliers (AOCS sensors and actuators, communication, power, payload) and the standard expected by the onboard computer, removing the need for manual configuration or driver installation.
An internal database of Electronic Data Sheets (drivers) gives MA61C SmallSat plug-and-play functionality: device recognition, self-configuration and driver installation without user intervention. It scans connections, detects incoming data, and routes and converts data between interfaces. The SmallSat variant supports SpaceWire, MIL-STD-1553, I2C, SPI, CAN, RS422, RS485 and GPIO, adding MIL-STD-1553 bus support to serve larger, more complex missions than the CubeSat variant.

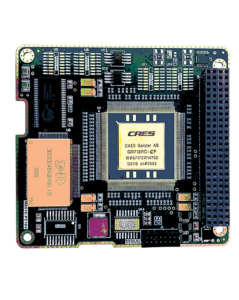

The core of MA61C is a GR712RC dual-core LEON3-FT SPARC V8 processor with 64Mbit SRAM and 64Mbit FLASH onboard memory for software, drivers and data storage. The package includes an API and a Windows GUI for commanding and monitoring connected subsystems via USB.
By integrating MA61C, users streamline the entire SmallSat lifecycle – from design and supply-chain management to system integration – accelerating time to space.
