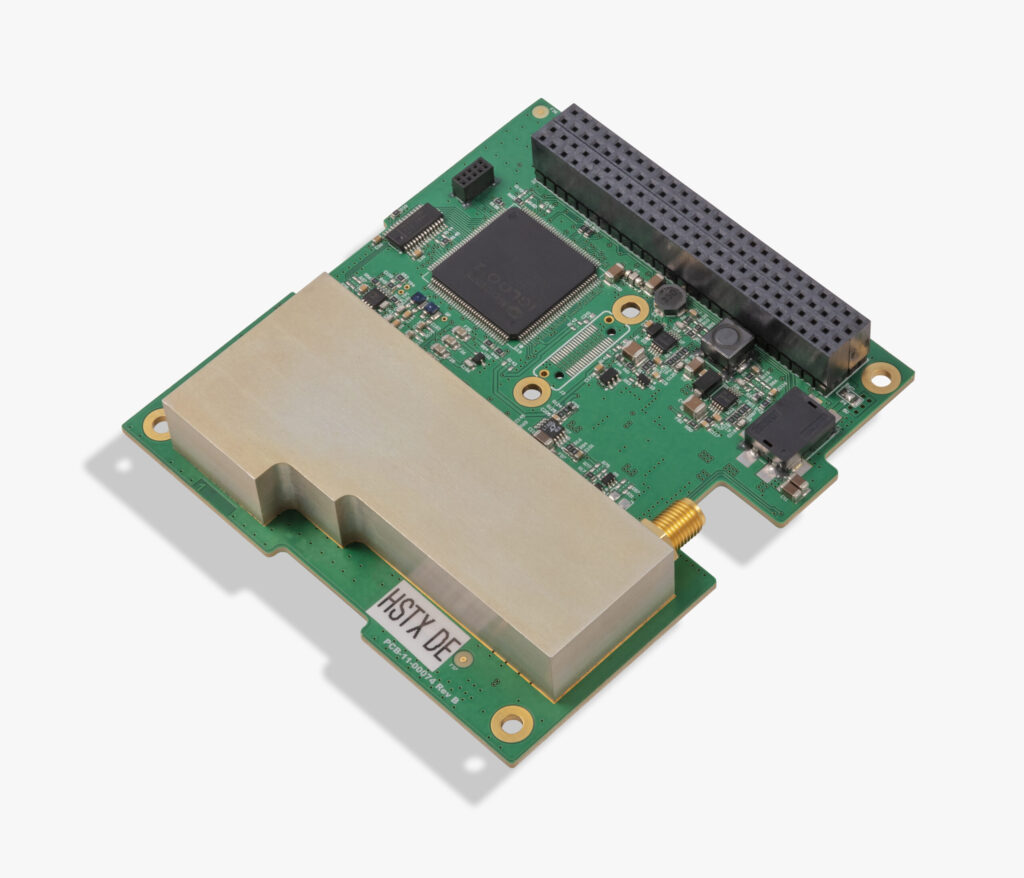

Pulsar HSTX

Typed specifications48 values

Discloses 7 of 13 fields engineers filter by in this category (category median 3).

Frequency band

S

amateur · datasheet p.1 S commercial  |  S TX

Mass

100 g

max · datasheet p.2

Frequency range

2 400–2 450 MHz

amateur · datasheet p.1 2 400–2 450 MHz amateur, PULSAR-HSTX-A  |  2 200–2 300 MHz commercial, PULSAR-HSTX-C  |  2 400–2 450 MHz PULSAR-HSTX-A

Envelope (L×W×H)

96 mm x 90 mm x 17.41 mm

datasheet p.2

TX RF output power

0.251 W

datasheet p.1 1 W max  |  0.251 W min · in 2 dB steps  |  1 W max · in 2 dB steps  |  1 W max · RF  +3

Data rate

10 000 kbps

TX (HSTX-A) · datasheet p.1 10 000 kbps max · TX, HSTX-A  |  8 000 kbps max · TX, HSTX-C  |  10 000 kbps TX (HSTX-A)

Modulation

OQPSK

datasheet p.1 QPSK

Supply voltage

5 V

5 V alternative · datasheet p.2 5 V alternative  |  5 V regulated  |  6–12 V

Power consumption

5 W

max · datasheet p.2 5 W max · maximum RF power output  |  5 W max · total, at maximum RF power output

Data interface

SPI

High-speed (payload data) · datasheet p.2 SPI high-speed SPI bus 8 MHz, payload data  |  SPI High-speed, payload data  |  I2C Low-speed (telemetry and control)  |  I2C low-speed I2C bus 400 kHz, telemetry and control  +1

Operating temperature

-25–61 °C

datasheet p.2

Design lifetime

2 years

in LEO · datasheet p.2 2 years LEO

Function

transmitter

datasheet p.1

Link use

payload data downlink

datasheet p.1

RF connector

SMA

50 Ohm SMA connector · datasheet p.2

Connector

50 Ω SMA connector

datasheet p.2

Flight heritage

Tried, tested and trusted on an array of on-orbit missions

datasheet p.1

Satellite class

CubeSat

datasheet p.1

Channel coding (FEC)

convolutional (Viterbi)

1/2 rate convolutional encoding (K=7) · datasheet p.2

Channel bandwidth

500 kHz

channel spacing · datasheet p.2

Board format

PC/104

CubeSat Kit PC/104 form factor · datasheet p.1
